Fan Motor

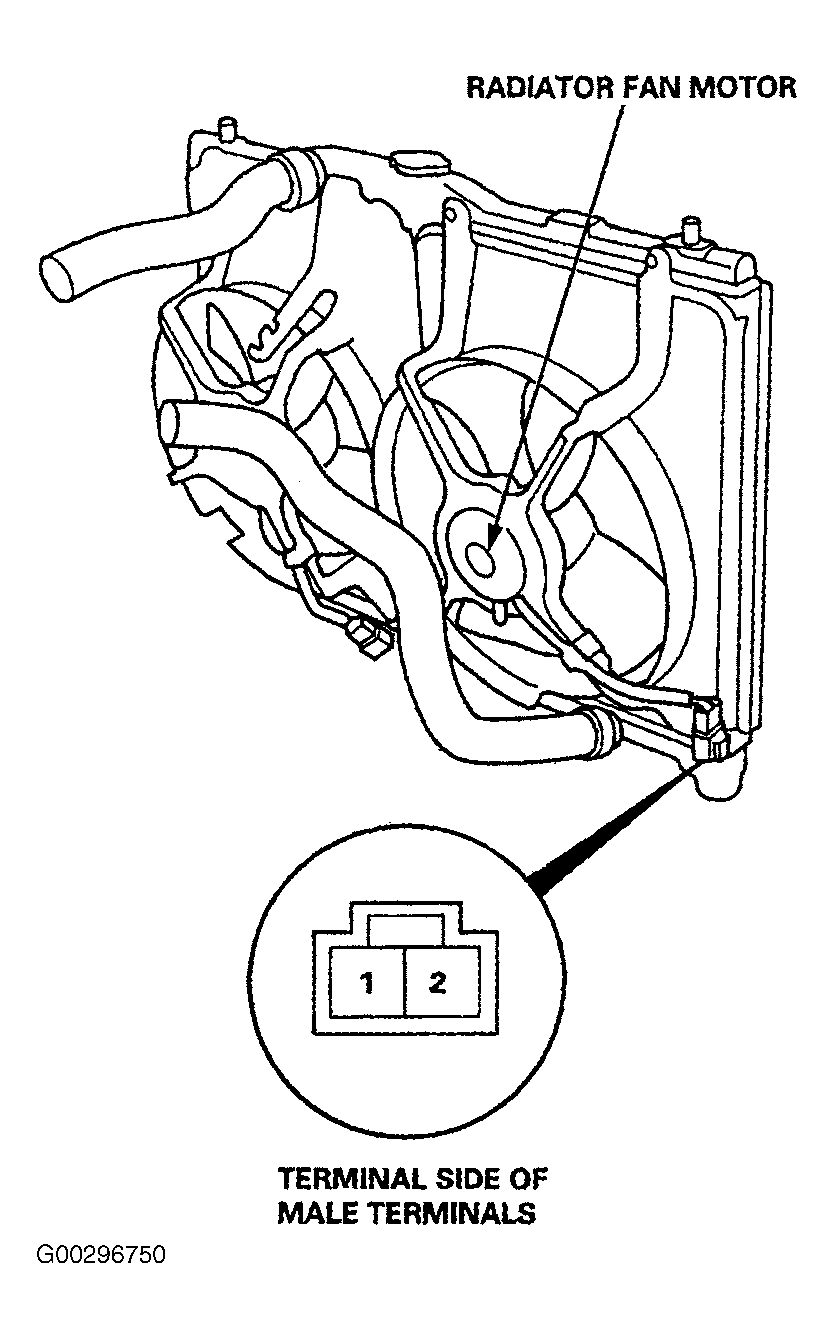

Disconnect appropriate fan motor connector. Apply battery voltage to terminal No. 2 and ground to terminal No. 1. See Fig 1 . If motor fails to run or does not run smoothly, replace fan motor. See RADIATOR AND FANS under REMOVAL & INSTALLATION.
