Component Location Index

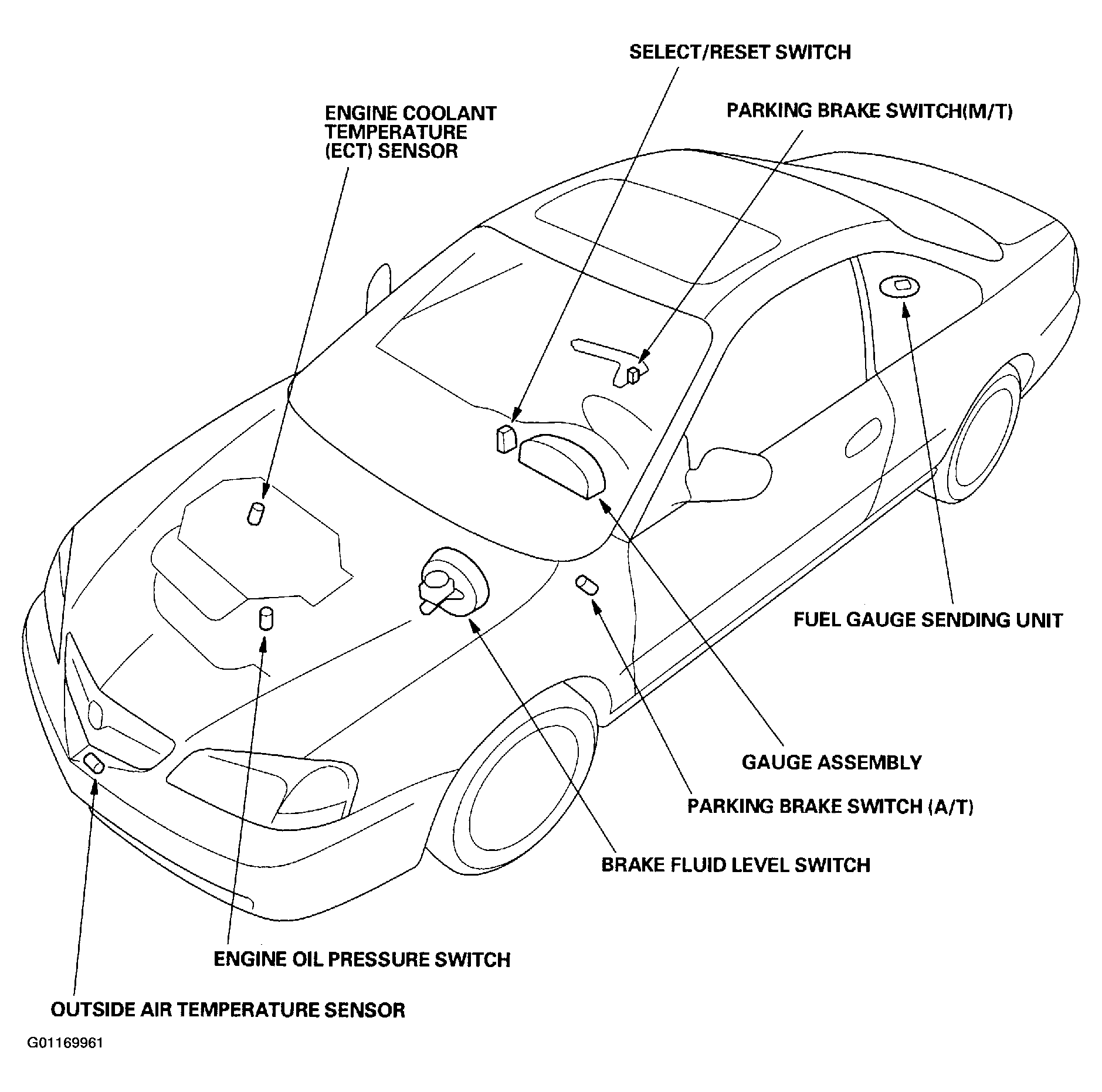

Fig 1: Locating Gauge Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/T model:

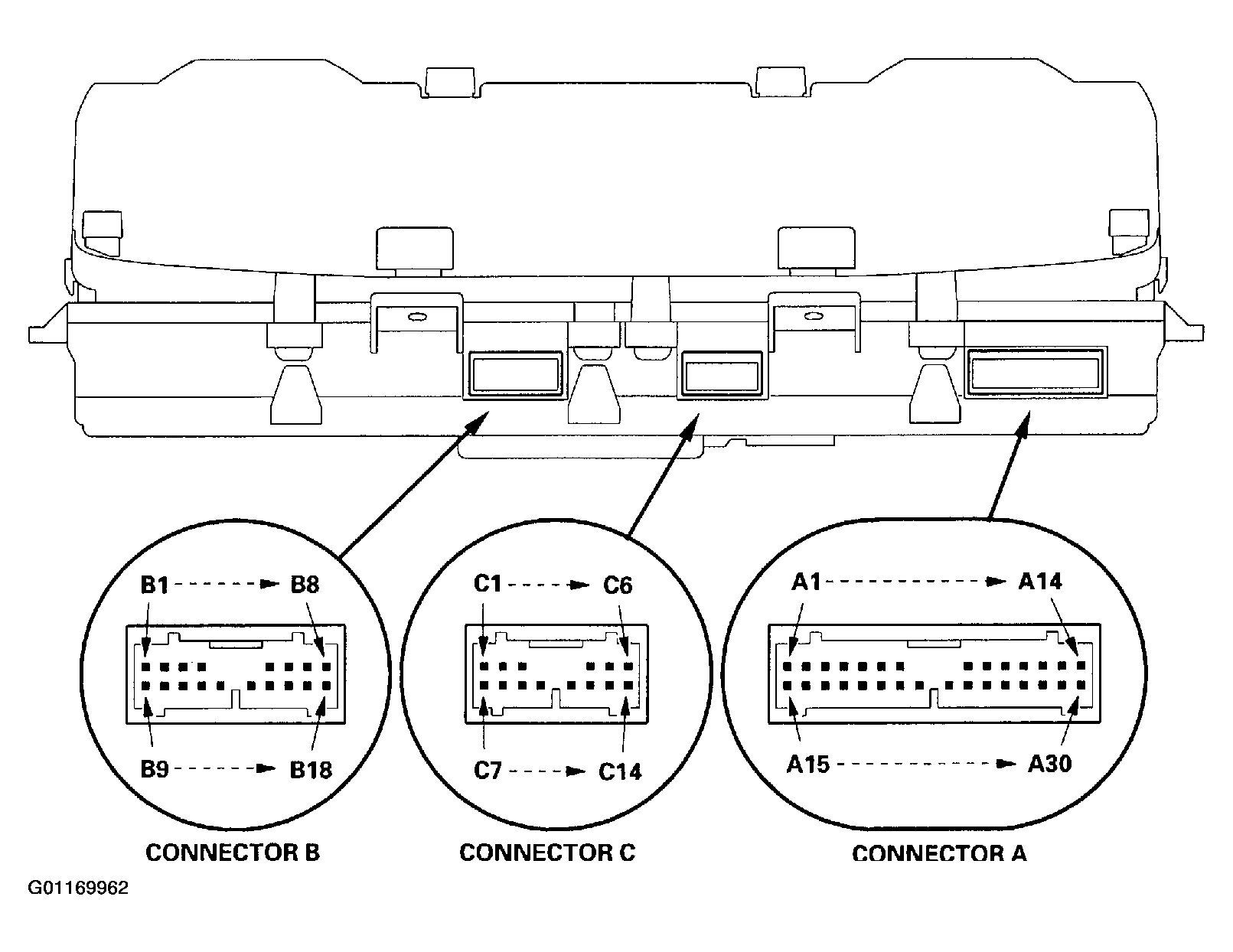

Fig 2: Identifying Gauge Connector Terminals (A/T Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

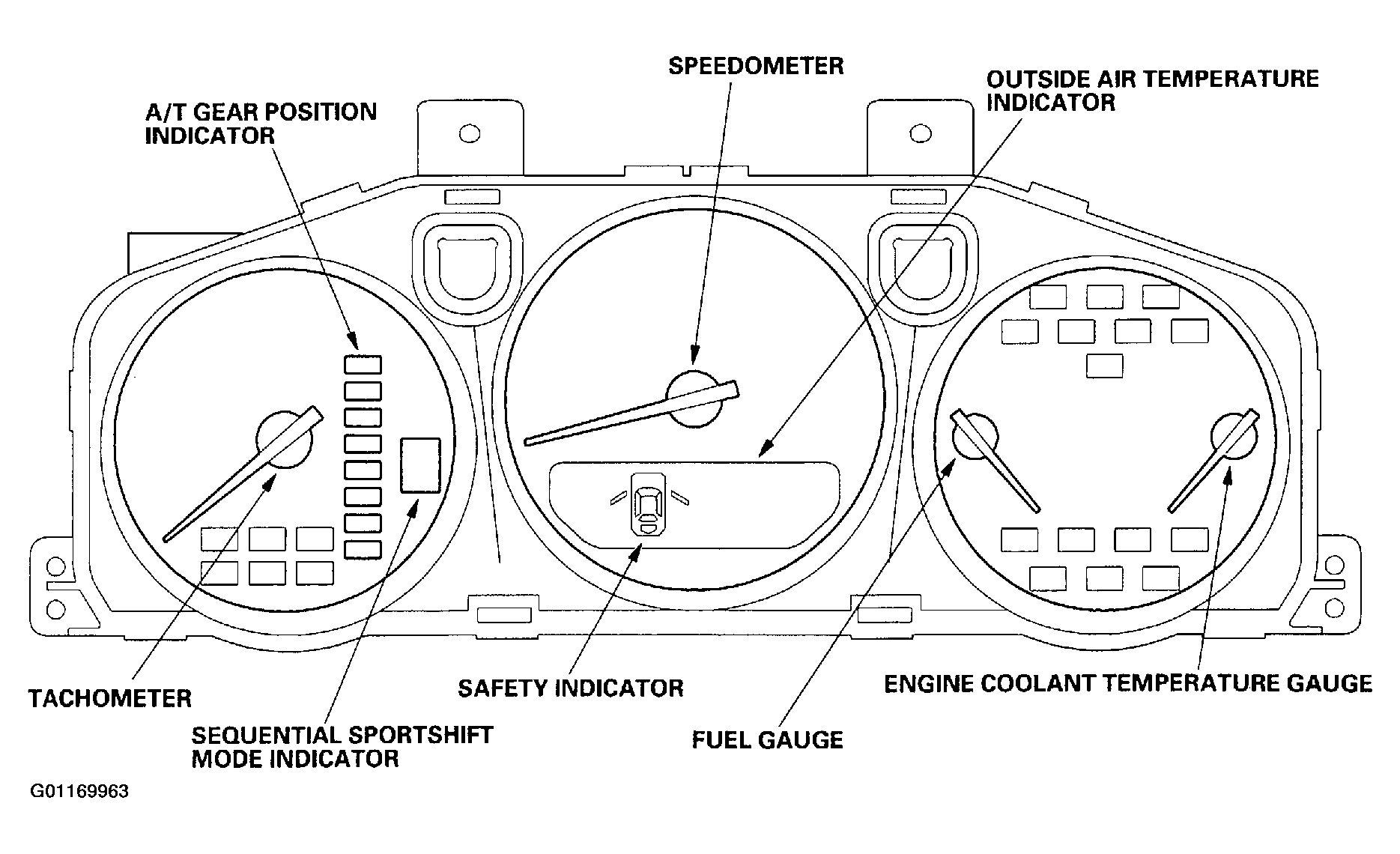

Fig 3: Locating Gauges (A/T Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

M/T model:

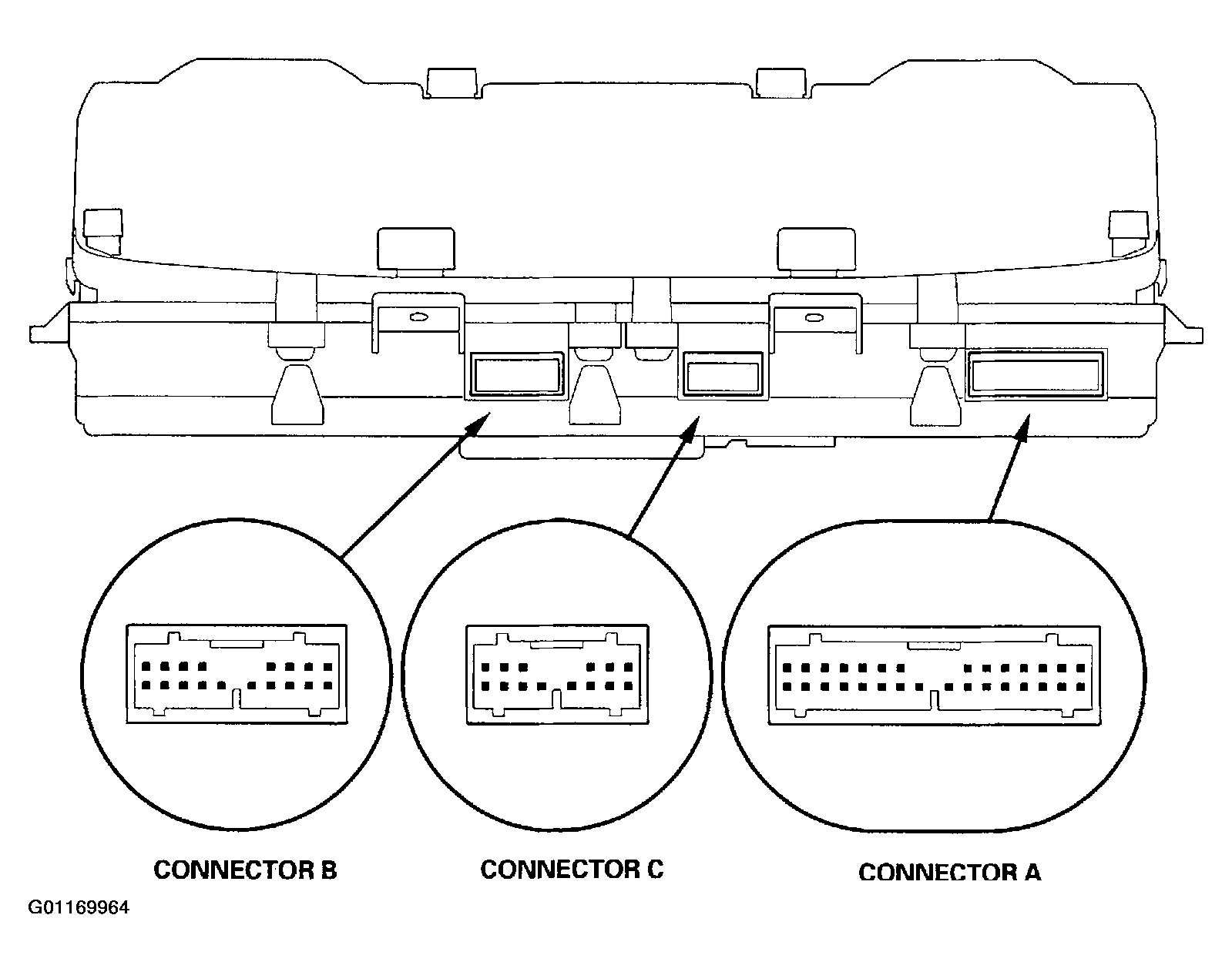

Fig 4: Identifying Gauge Connectors (M/T Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

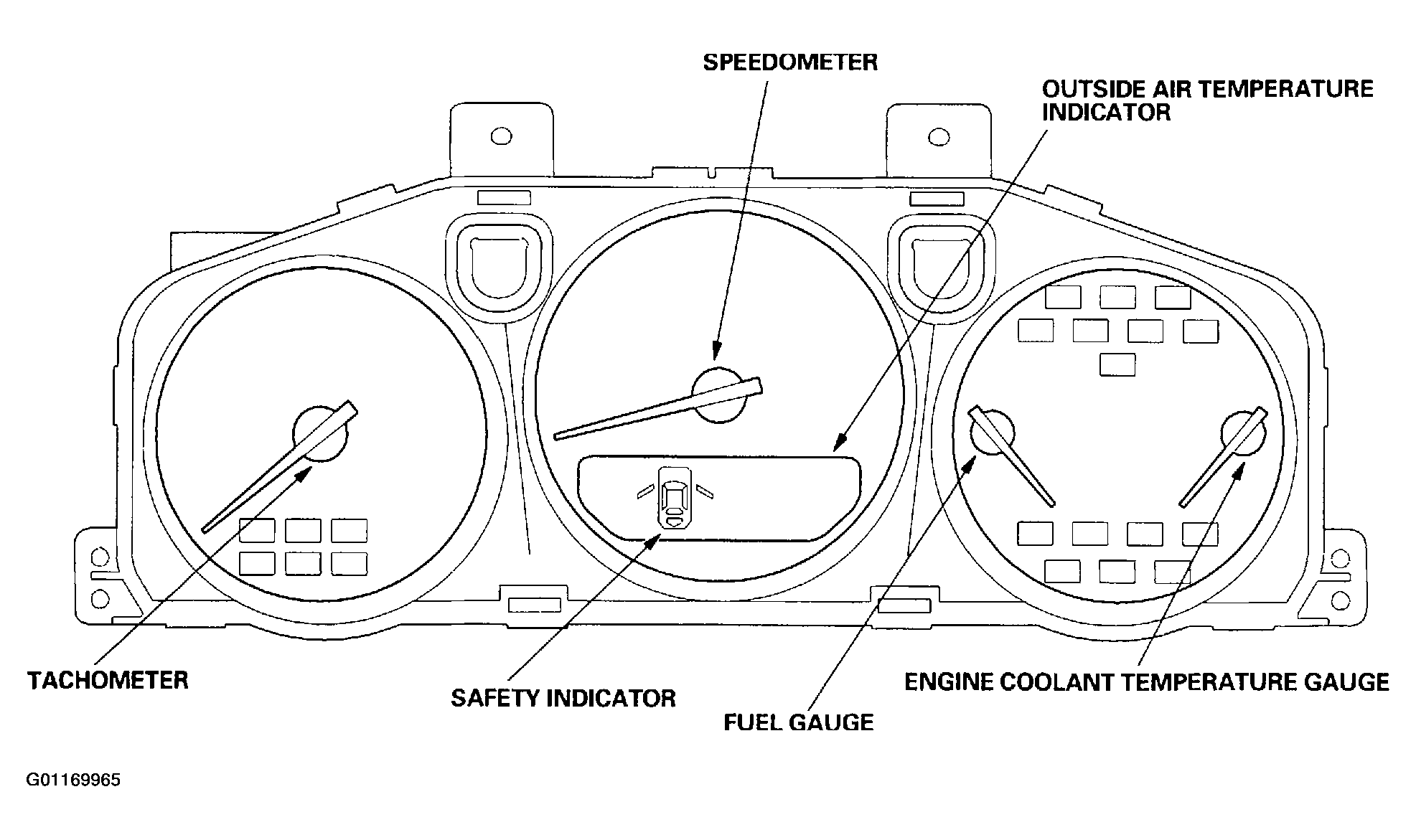

Fig 5: Locating Gauges (M/T Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
