Moonroof Close and Open Relays Connector End View

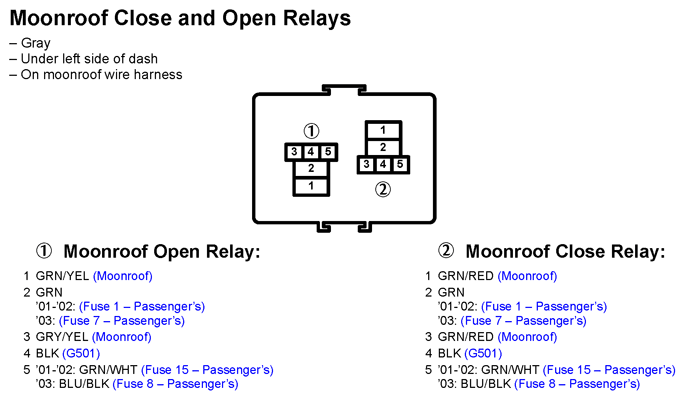

Fig 1: Moonroof Close and Open Relays Connector End View

G11247252

Courtesy of AMERICAN HONDA MOTOR CO., INC.
