Headlight, Left or Right Connector End View

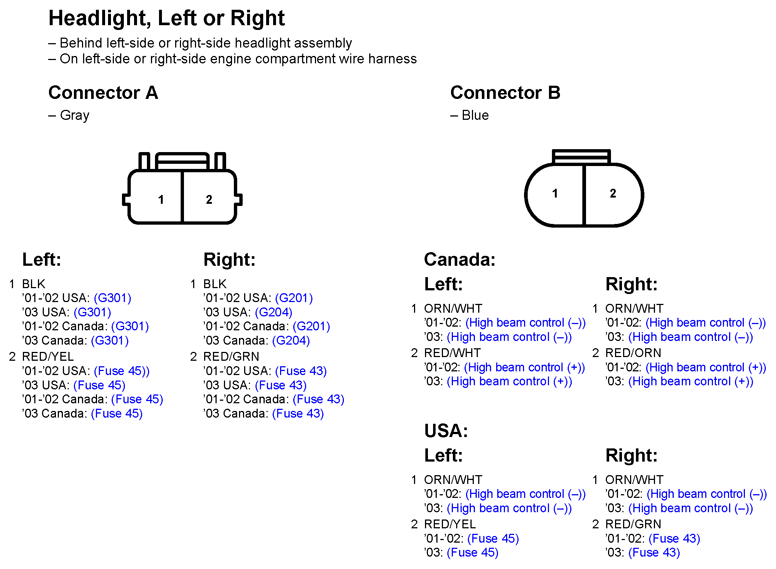

Fig 1: Headlight, Left or Right Connector End View

G11247139

Courtesy of AMERICAN HONDA MOTOR CO., INC.
