Accessory Power Socket, Front or Rear Connector End View

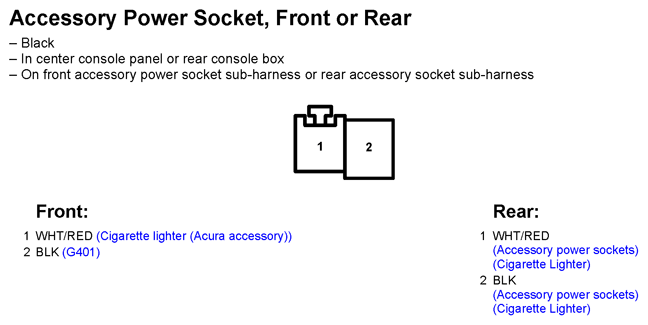

Fig 1: Accessory Power Socket, Front or Rear Connector End View
G11247120Courtesy of AMERICAN HONDA MOTOR CO., INC.
