A/C Condenser Fan Motor Connector End View

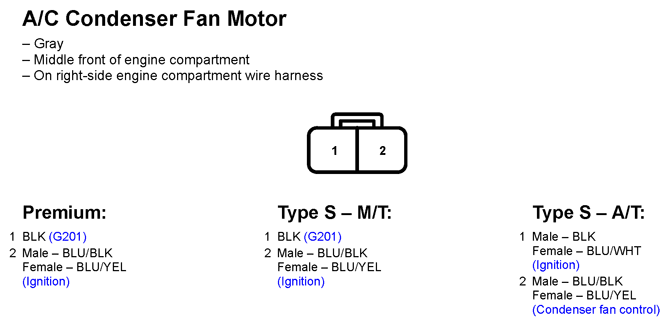

Fig 1: A/C Condenser Fan Motor Connector End View

G11247126

Courtesy of AMERICAN HONDA MOTOR CO., INC.
