Code Description

  1. DTC 12

    Right-Front wheel sensor, Wheel Sensor Pulse Signal.
  2. DTC 14

    Left-Front wheel sensor, Wheel Sensor Pulse Signal.
  3. DTC 16

    Right-Rear wheel sensor, Wheel Sensor Pulse Signal.
  4. DTC 18

    Left-Rear wheel sensor, Wheel Sensor Pulse Signal.

For DTC testing chart, see Fig 1 .

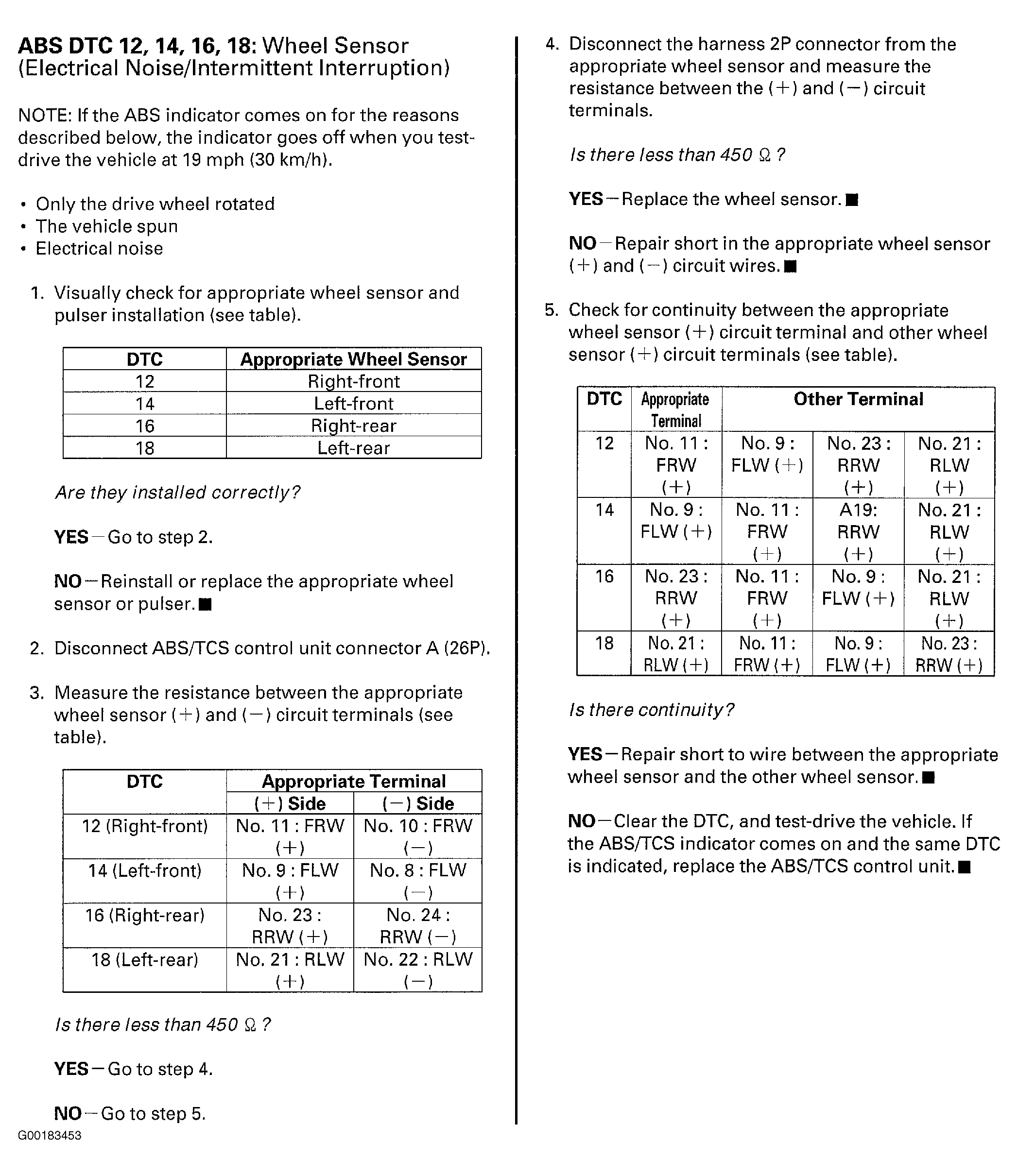

Fig 1: DTCs 12, 14, 16 & 18 Wheel Sensor Testing Chart
G00183453Courtesy of AMERICAN HONDA MOTOR CO., INC.
