Driver's Power Seat Motor Test

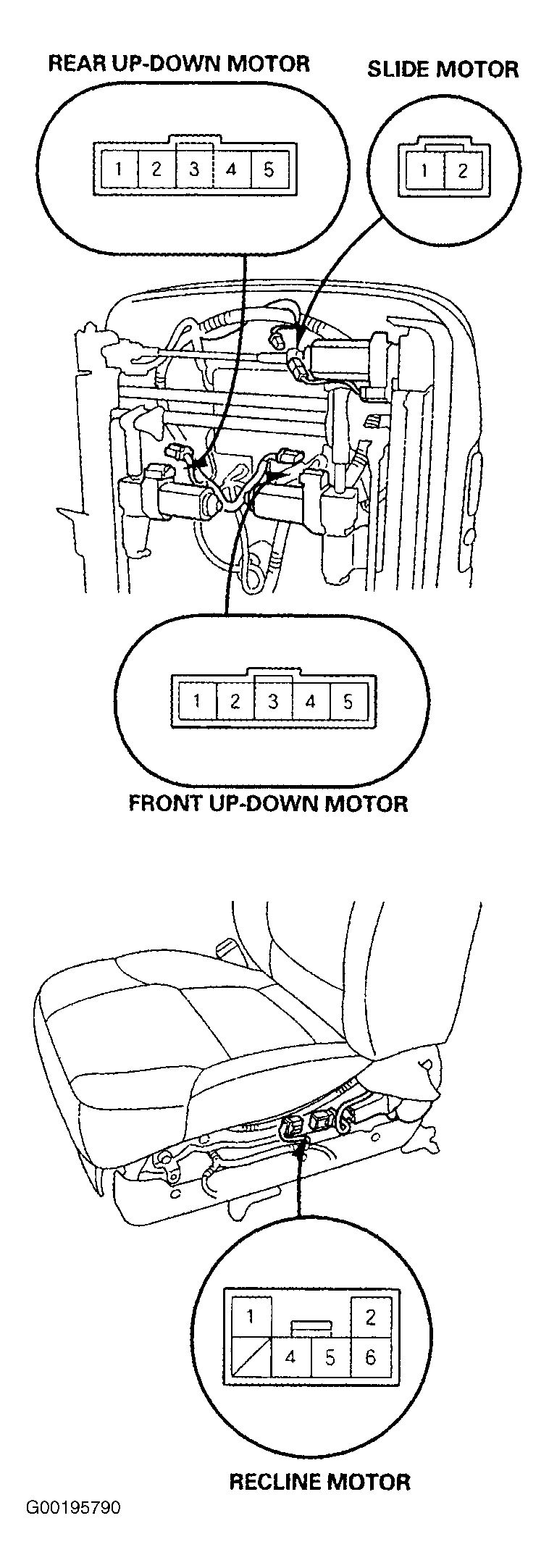

Remove driver's seat. See FRONT SEATS under REMOVAL & INSTALLATION. Using fused jumper wires, apply battery voltage and ground to specified motor harness connector terminals. See DRIVER'S POWER SEAT MOTOR TEST table. See Fig 1 . If any motor fails any portion of test, replace faulty motor.
DRIVER'S POWER SEAT MOTOR TEST
| Application | (1) Connect Battery To Terminals (+) & (-) | |||
|---|---|---|---|---|
| Slide Motor | ||||
| Forward | 1 & 2 | |||
| Backward | 2 & 1 | |||
| Front Up-Down Motor | ||||
| Up | 2 & 3 | |||
| Down | 3 & 2 | |||
| Rear Up-Down Motor | ||||
| Up | 3 & 4 | |||
| Down | 4 & 3 | |||
| Recline Motor | ||||
| Forward | 2 & 1 | |||
| Backward | 1 & 2 | |||
|
||||
