Audio Unit Removal/Installation

SRS components are located in this area. Review the SRS component locations, precautions and procedures in the SRS section before performing repairs or service (see AIR BAG RESTRAINT SYSTEMS ).

1. Make sure you have the anti-theft code for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
2. Remove the rear console .
3. Remove the console panel .
4. Remove the six mounting screws, disconnect the audio unit connectors (A), climate control unit connectors (with Navigation) (B) and the antenna lead (C), then remove the audio unit (D).

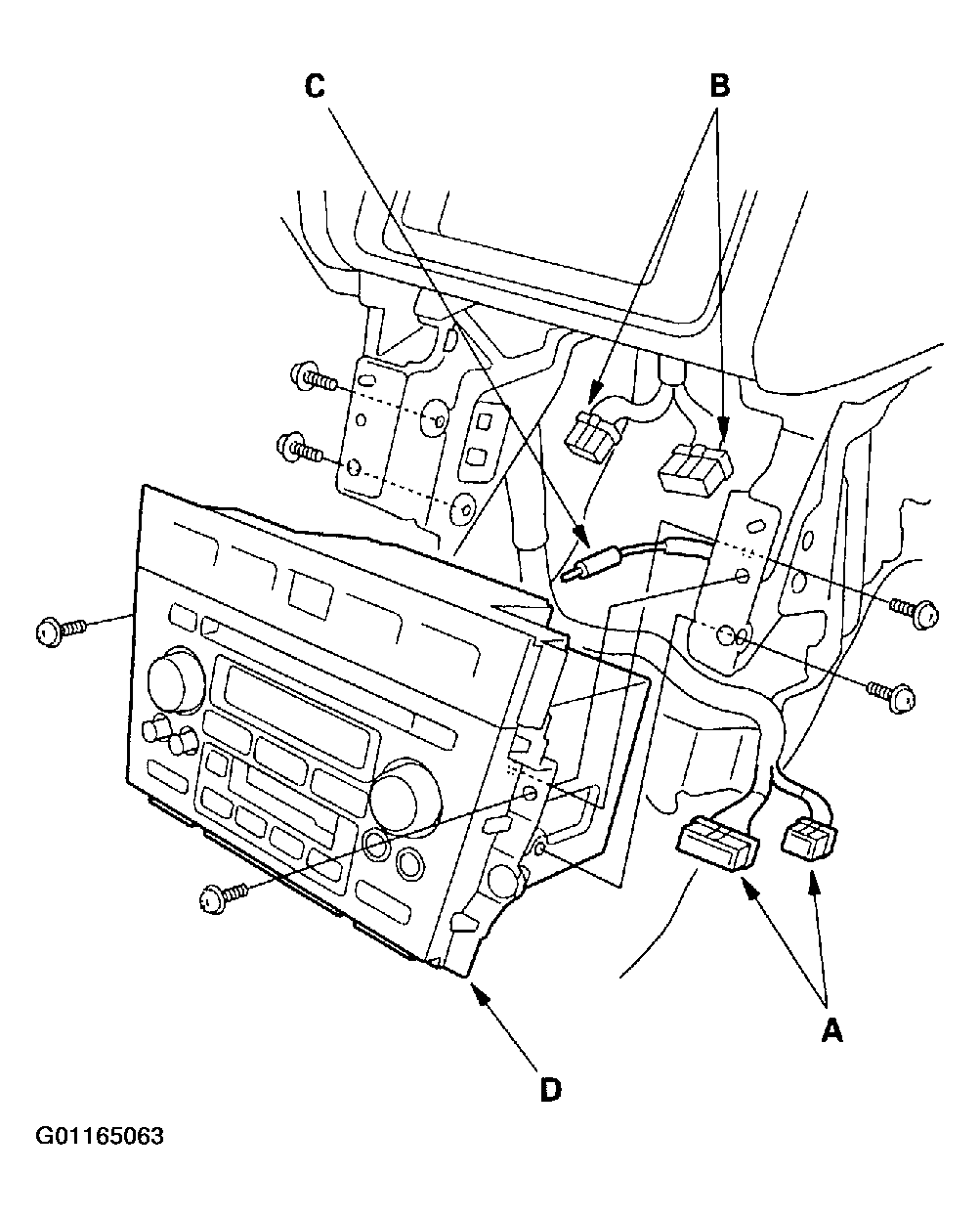

   Fig 1: Removing The Audio Unit

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the climate control unit (with Navigation) or CD console box (without Navigation).

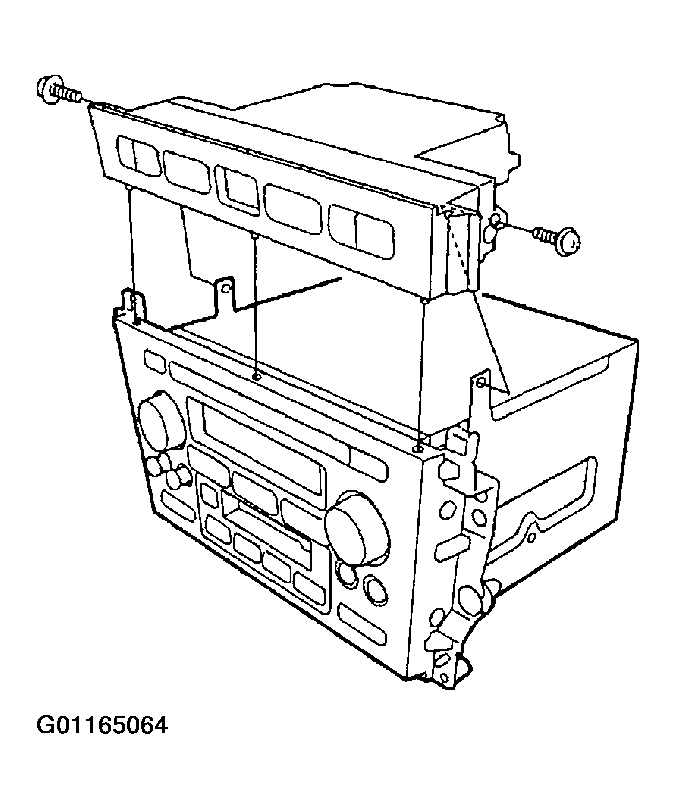

   Fig 2: Removing The Climate Control Unit Or CD Console Box

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install in the reverse order of removal, and note these items:
   • Make sure the audio unit and climate control panel connectors are plugged in properly, and the antenna lead is connected properly.
   • Enter the anti-theft code for the radio and the navigation system, then enter the customer's radio station presets.
