Vehicle Position Does Not Move On The Map

Before testing, inspect the No. 6 (15A) fuse in the driver's under-dash fuse/relay box.

1. Start the engine.
2. Perform the Car Status Test in the Picture Diagnosis Test menu (see CAR STATUS  ).

   Is there a vehicle speed pulse signal?

   1. YES  -Replace the navigation unit (see NAVIGATION UNIT REMOVAL/INSTALLATION  ).
   2. NO  -'99 model: go to step 3.

      '00-03 models: refer to the VSS signal Troubleshooting (see INSTRUMENT PANELS ).

3. Turn the ignition switch OFF.
4. Raise the front of the vehicle, and make sure it is securely supported.
5. Disconnect the navigation unit connector C (8P).
6. Check for a loose No. 6 terminal at the navigation unit connector C (8P).
7. Reconnect the navigation unit connector C (8P).
8. Put the vehicle in neutral with the ignition switch ON (II).
9. Measure the voltage between body ground and navigation unit connector C (8P) terminal No. 6.
   Fig 1: Measuring Voltage At Navigation Unit Connector C (8P)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Slowly rotate one wheel with the other wheel blocked.

    Does voltage pulse from 0 to about. 5 V or more?

    1. YES  -Replace the navigation unit (see NAVIGATION UNIT REMOVAL/INSTALLATION  ).
    2. NO  -Go to step 11.
11. Turn the ignition switch OFF.
12. Disconnect the 3P connector from the vehicle speed pulse (VSP) sensor (A).
    Fig 2: Checking Vehicle Speed Pulse (VSP) Sensor

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Connect the test harness only to the engine wire harness.
14. Connect the RED test harness clip (B) to the positive prove of an ohmmeter. Cover the white (C) and green (D) test harness with protective tape (E).
15. Check for continuity between the RED test harness clip and body ground.

    Is there continuity?

    1. YES  -Go to step 16.
    2. NO  -Repair open in the BLK wire between the VSP and G101.

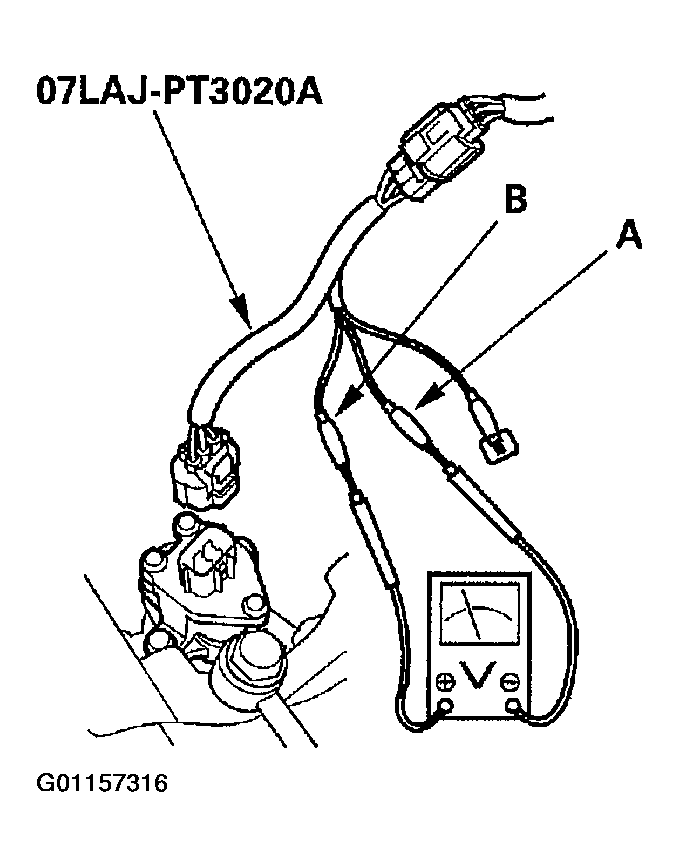

16. Connect the WHT test harness clip (A) to the positive probe of a voltmeter, and connect the RED test harness clip (B) to the negative probe.
    Fig 3: Checking Vehicle Speed Pulse (VSP) Sensor

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
17. Turn the ignition switch ON (II).

    Is there battery voltage?

    1. YES  -Go to step 18.
    2. NO  -Repair open in the BLK/YEL wire between the VSP and the driver's under-dash fuse/relay box.
18. Turn the ignition switch OFF.
19. Disconnect the navigation unit connector C (8P) from the navigation unit.
20. Disconnect the WHT and RED test harness clips.
21. Connect the GRN test harness clip (A) to the positive probe of the ohmmeter.
22. Check for continuity between the GRN test harness clip and body ground.
    Fig 4: Checking Continuity

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES  -Repair short in the BLU/WHT wire between the VSP and the PCM, cruise control unit, navigation unit, or driver's multiplex control unit.
    2. NO  -Go to step 23.
23. Reconnect the navigation unit connector C (8P).
24. Turn the ignition switch ON (II).
25. Connect the GRN test harness clip (A) to the positive probe of a voltmeter, and connect the RED test harness clip (B) to negative probe.
    Fig 5: Checking Voltage

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there 5 V or more?

    1. YES  -Replace the VSP (see VEHICLE SPEED PULSE (VSP) SENSOR REPLACEMENT  ).
    2. NO  -Repair open in the BLU/WHT wire between the VSP and the navigation unit.
