Clutch Pedal Position Switch Test

Disconnect the 2P connector from the clutch pedal position switch (A).

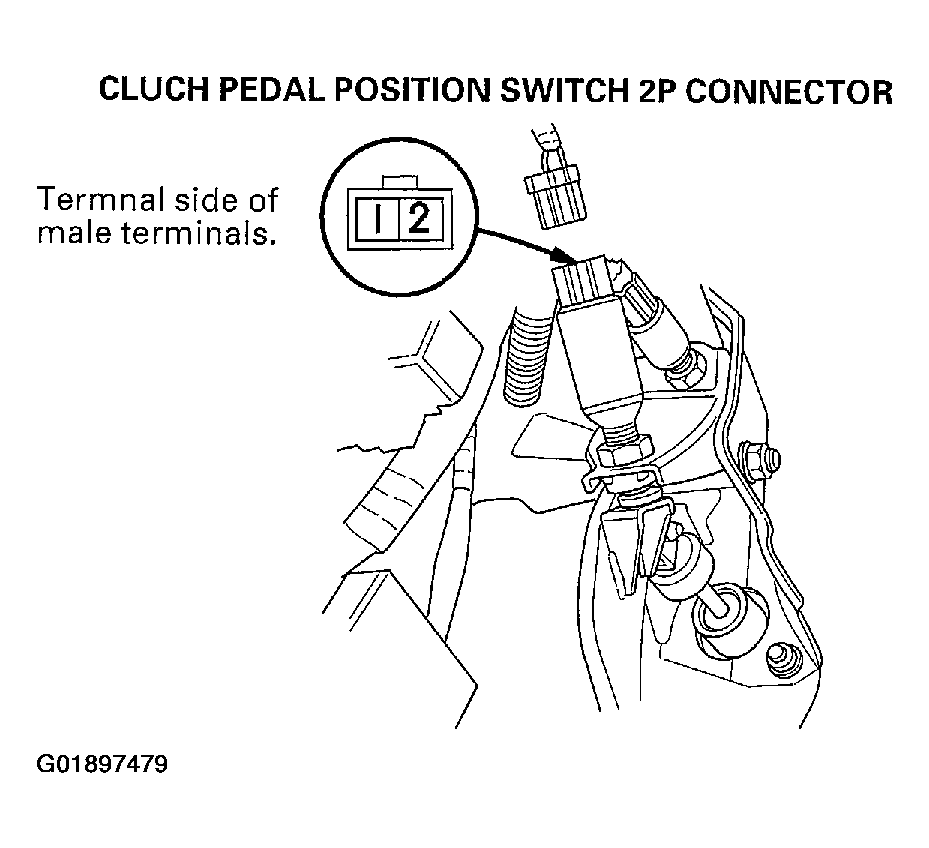

Fig 1: Disconnecting The 2P Connector From The Clutch Pedal Position Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clutch pedal position switch.
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch pedal position switch.
- If OK, install the clutch pedal position switch and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, ADJUSTMENT ).
Fig 2: Clutch Pedal Position Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
