Brake Pedal Position Switch Test

  1. Disconnect the 4P connector from the switch (A).

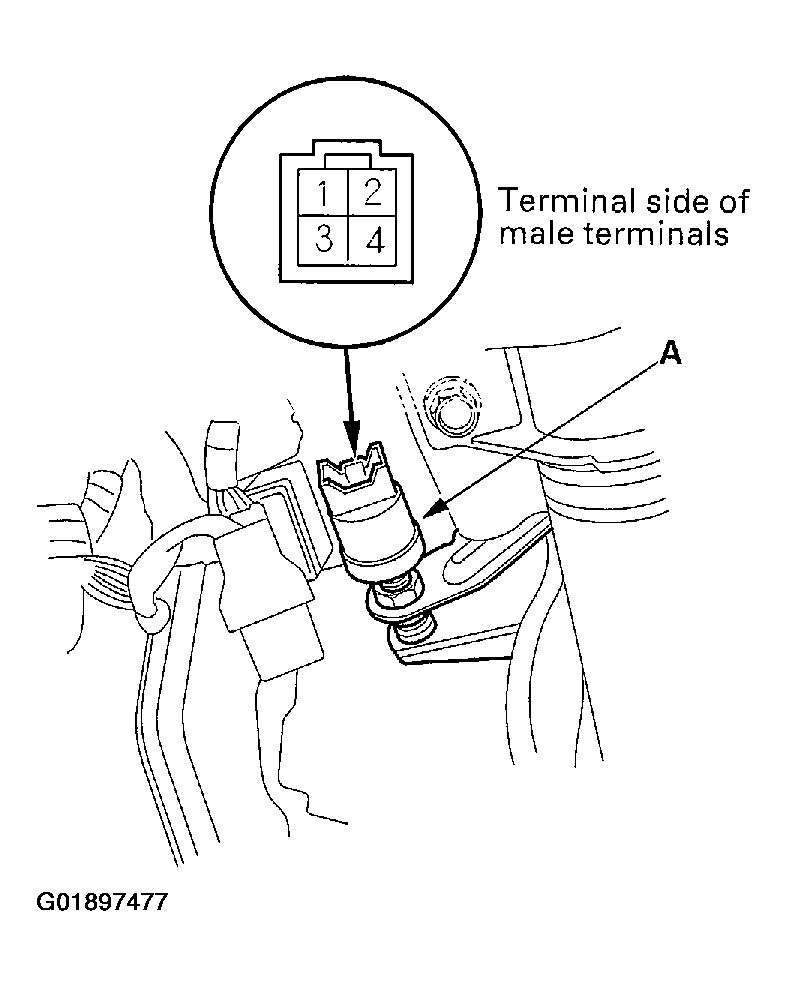

    Fig 1: Disconnecting The 4P Connector From The Switch
    G01897477Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the brake pedal position switch.
  3. Check for continuity between the terminals according to the table.
    • If the continuity is not as specified, replace the brake pedal position switch.
    • If OK, install the brake pedal position switch and adjust the pedal height (see BRAKE PEDAL HEIGHT & FREE PLAY ).
    Fig 2: Brake Pedal Position Switch Test Table
    G01897478Courtesy of AMERICAN HONDA MOTOR CO., INC.
