Retrieving DTC Using SCS Menu Method

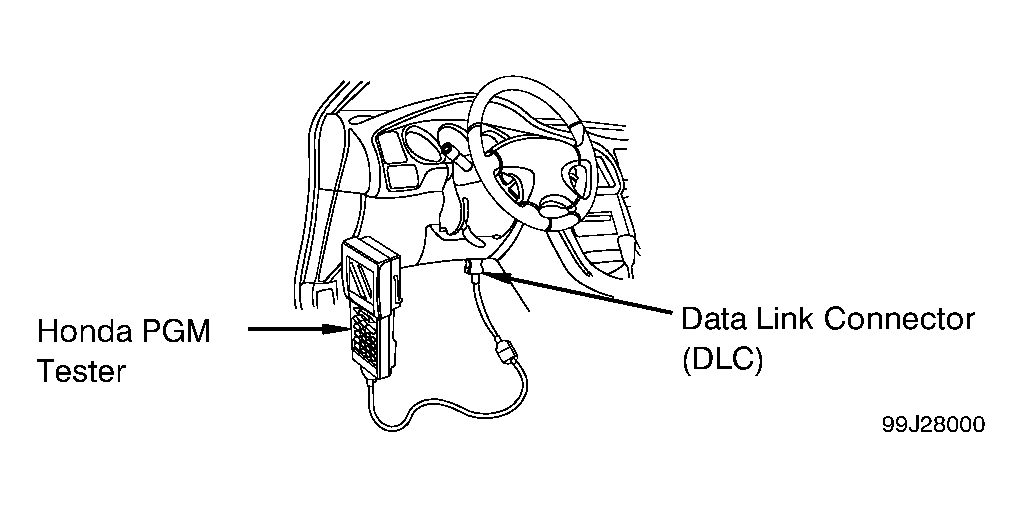

  1. Ensure ignition is off. Connect Honda PGM Tester to 16-pin data link connector and follow tester prompts in "SCS" menu. See Figure.
  2. Turn ignition on. AIR BAG warning light will come on for about 6 seconds and go off. DTC will be indicated next. DTC consists of a main code and a sub-code. Up to 3 different malfunctions can be indicated. In case of a continuous failure, DTC will be indicated repeatedly. In case of an intermittent failure, AIR BAG warning light will indicate DTC once, then it will stay on.
  3. If both a continuous and an intermittent failure occur, both DTCs will be indicated as continuous. In case system is normal (no DTC), AIR BAG warning light will stay on. Read DTC. Turn ignition off and wait 10 seconds. Disconnect Honda PGM tester.
