Erasing DTC Memory Using SCS Service Connector

  1. Turn ignition off. Connect SCS Service Connector (07PAZ-0010100) to Memory Erase Signal (MES) connector. See Fig 1.
  2. Turn ignition on. AIR BAG warning light will come on for about 6 seconds then go off.
  3. Disconnect SCS service connector from MES connector within 4 seconds after AIR BAG warning light goes off. AIR BAG warning light will come on again.
  4. Reconnect SCS service connector to MES connector within 4 seconds after AIR BAG warning light comes on. AIR BAG warning light will go off.
  5. Disconnect SCS service connector from MES connector within 4 seconds. AIR BAG warning light will indicate that memory is erased by blinking 2 times.
  6. Turn ignition off, and wait 10 seconds. Perform SYSTEM OPERATION CHECK .

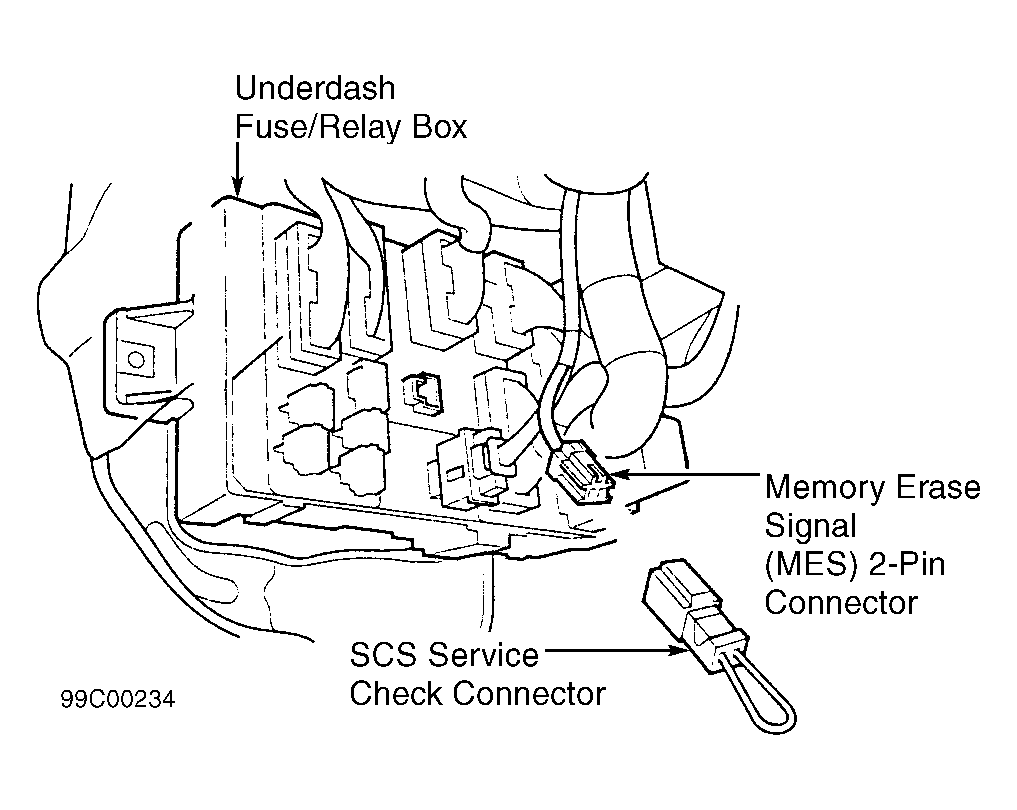

Fig 1: Connecting SCS Service Check Connector
G99C00234Courtesy of AMERICAN HONDA MOTOR CO., INC.
