Power Seat Control Unit, Driver's Connector End View
Power Seat Control Unit, Driver's Connector End View

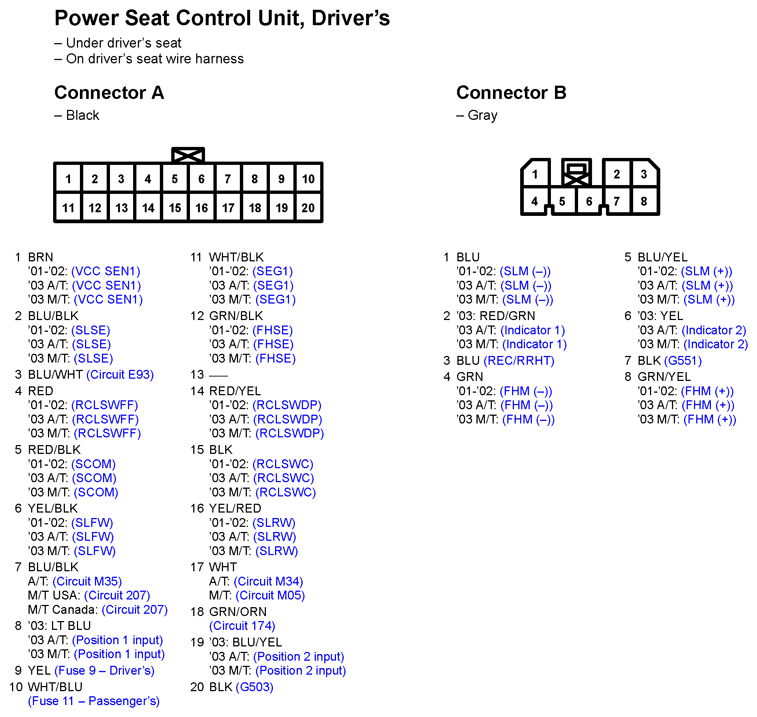

Fig 1: Power Seat Control Unit, Driver's Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

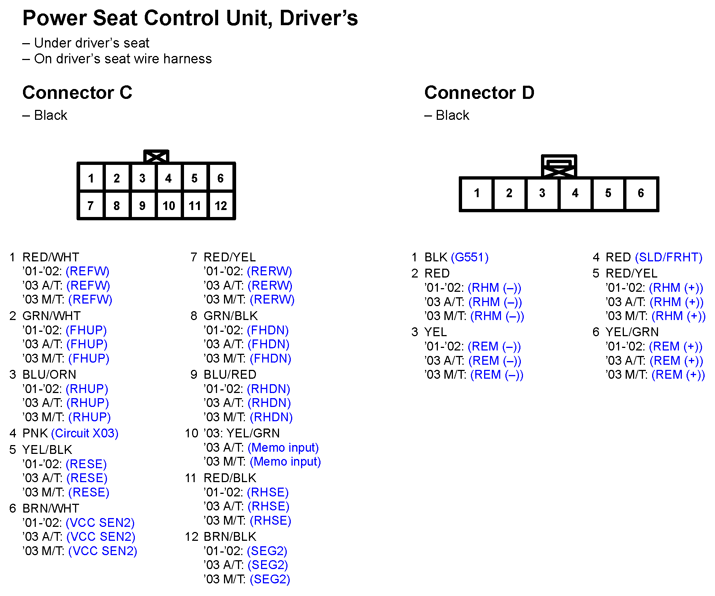

Fig 2: Power Seat Control Unit, Driver's Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
