DTC 81: Central Processing Unit (CPU)

For DTC testing chart, see Fig 1 .

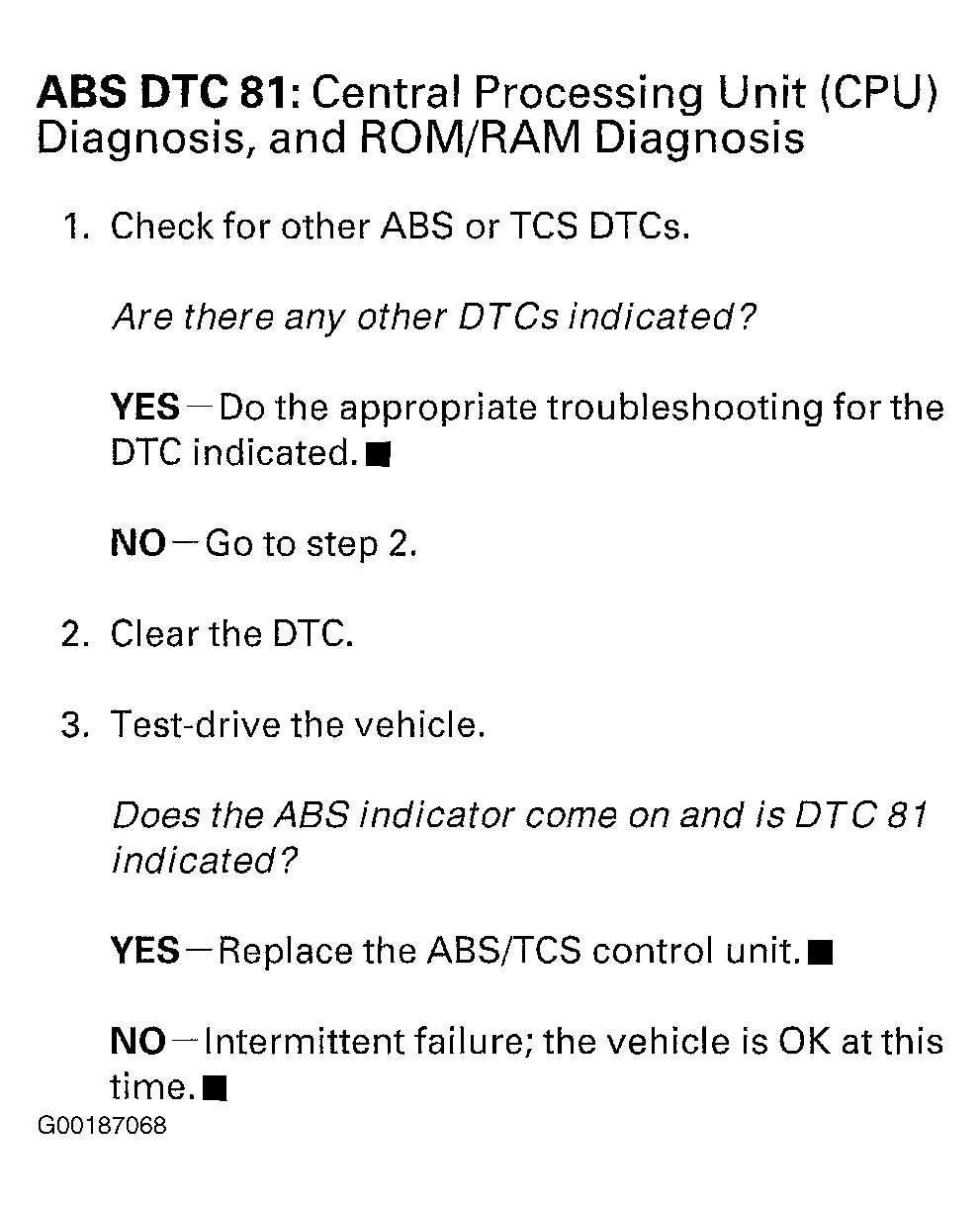

Fig 1: DTC 81: Central Processing Unit (CPU) Testing Chart

G00187068

Courtesy of AMERICAN HONDA MOTOR CO., INC.
