Set/Resume/Cancel Switch Test/Replacement

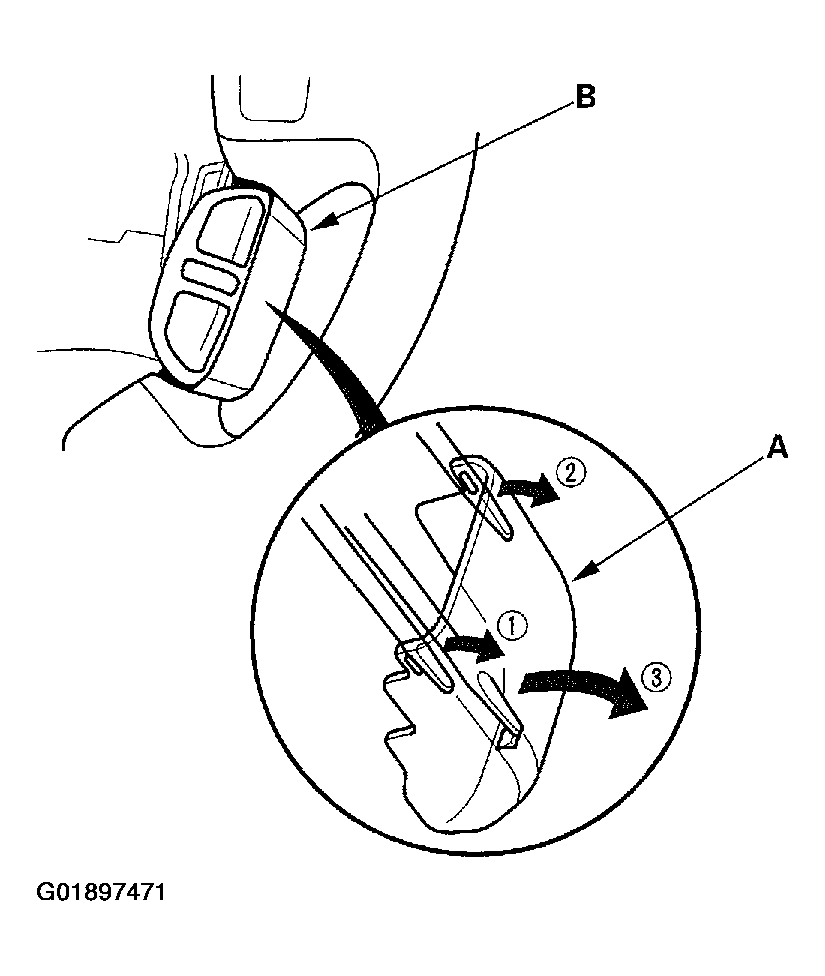

Carefully remove the set/resume/cancel switch cover (A) by prying between the cover and the switch (B) in the sequence shown.

Fig 1: Prying Between The Cover And The Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

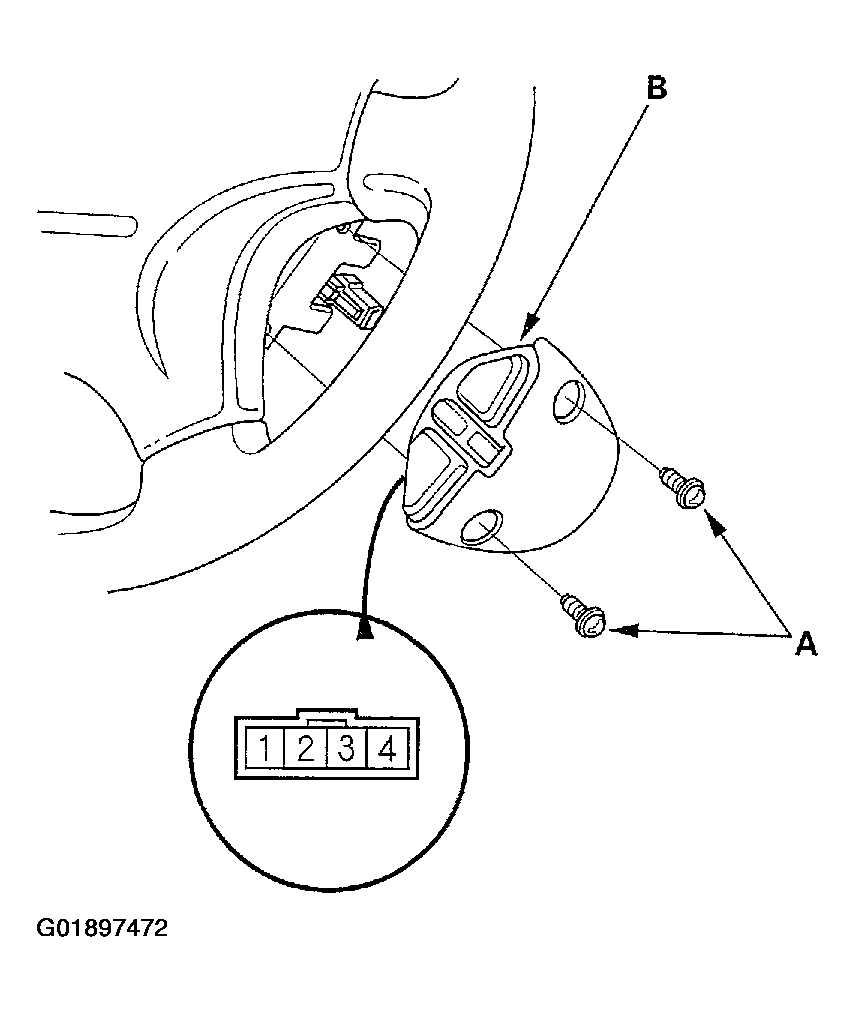

Remove the two screws (A), then remove the switch (B).

Fig 2: Removing The Two Screws, Then The Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

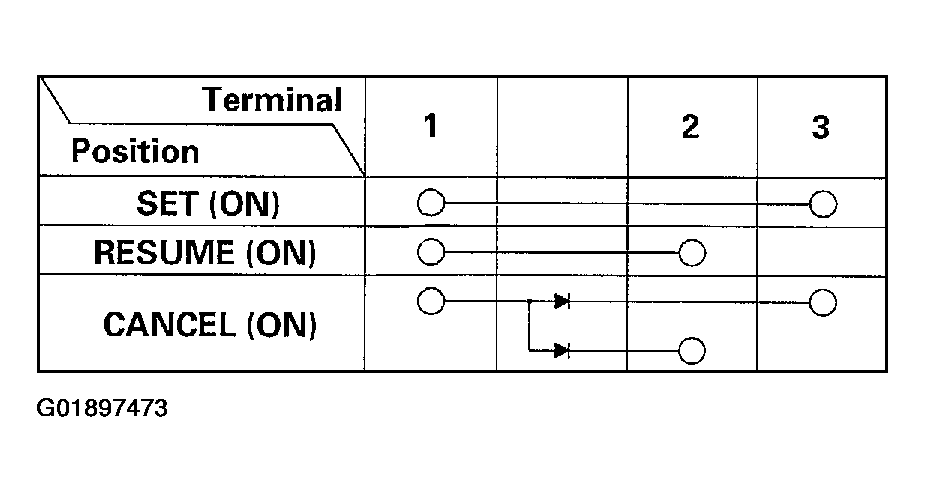

Check for continuity between the terminals in each switch position according to the table.
- If there is continuity and it matches the table, but switch failure occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
Fig 3: Set/Resume/Cancel Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
