Shift Lever Removal

  1. Shift the transmission into N position.
  2. Remove the center console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the nut securing the shift cable end (A), then separate the cable end from the shift lever assembly.

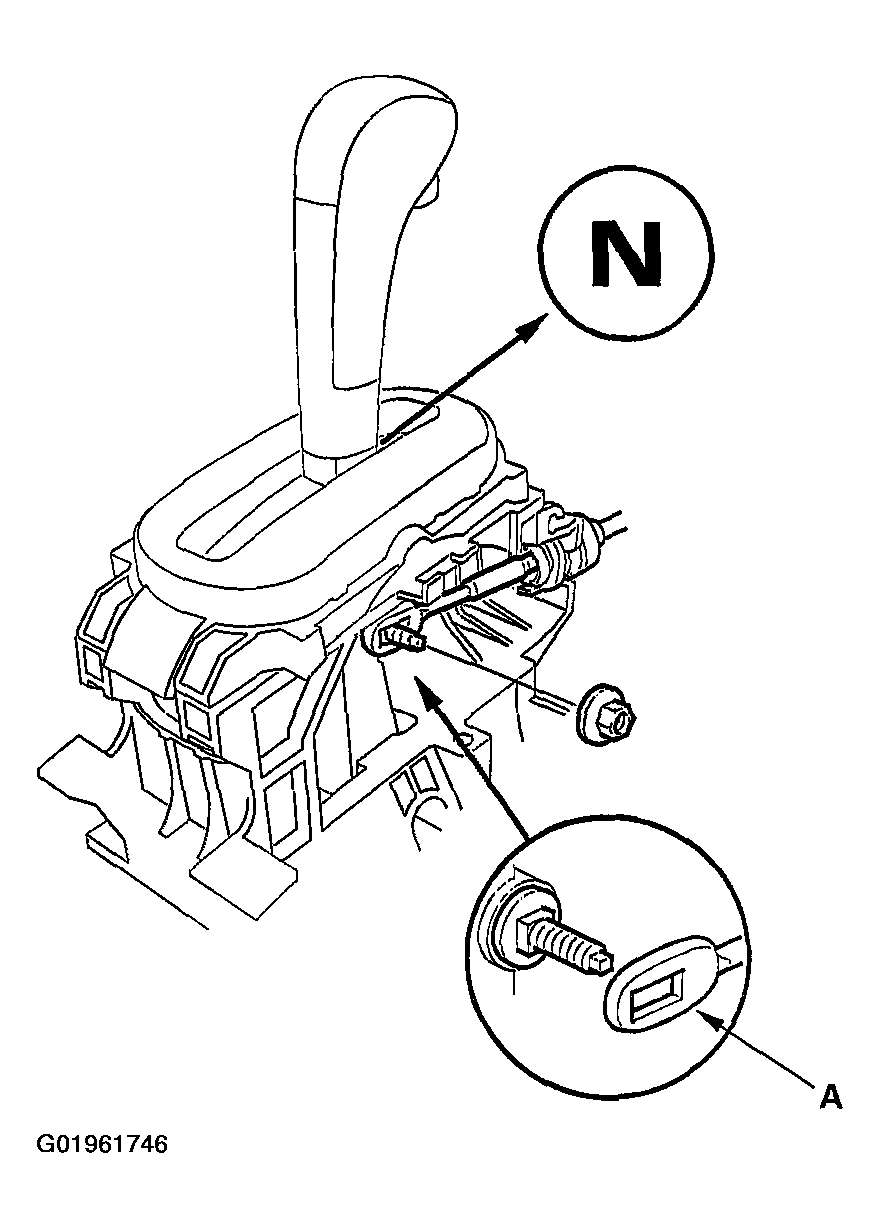

    Fig 1: Removing Nut Securing Shift Cable End
    G01961746
  4. Rotate the socket holder (A) on the shift cable (B) toward the shift lever a quarter turn, then slide the holder out to remove the shift cable from the shift cable bracket base (C).
    NOTE: Do not remove the shift cable by twisting the shift cable guide (D).

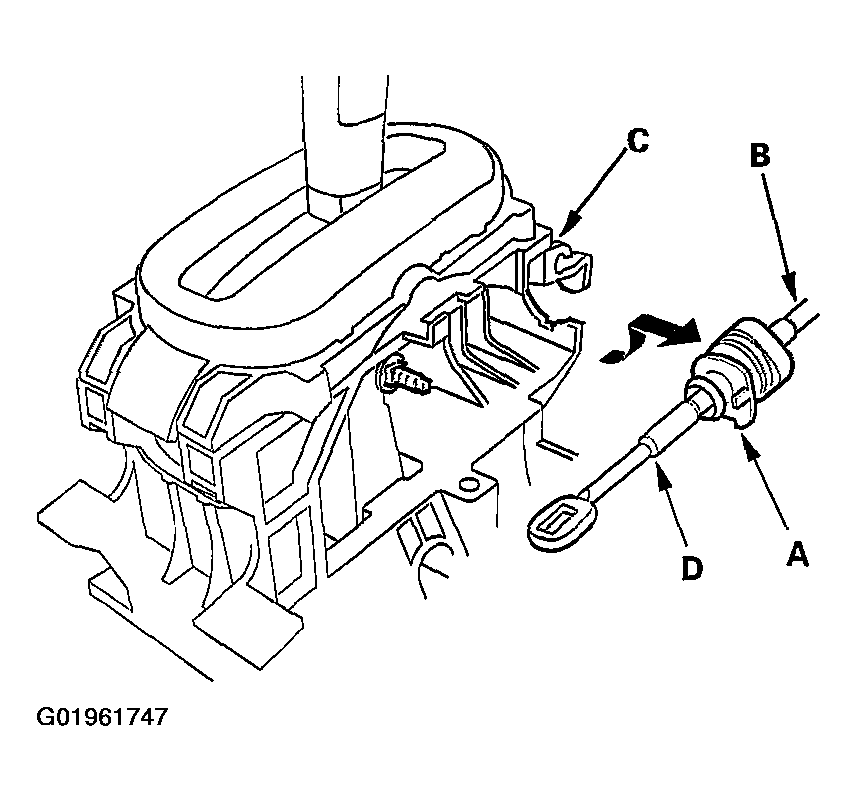

    Fig 2: Rotating Socket Holder On Shift Cable
    G01961747
  5. Disconnect the shift lock solenoid connector (2P) (A) and park pin switch connector (4P) (B).

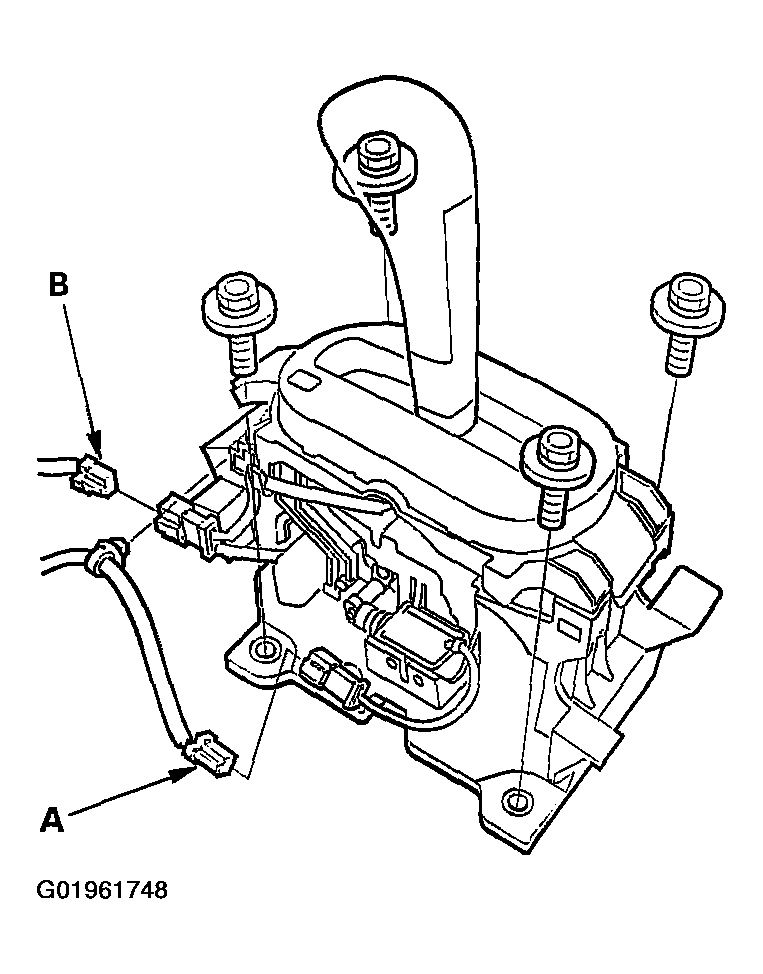

    Fig 3: Connecting Shift Lock Solenoid & Park Pin Switch Connector
    G01961748
  6. Remove the four bolts, then remove the shift lever assembly.
