Steering Wheel Installation

Before installing the steering wheel, make sure the front wheels are aligned straight ahead, then center the cable reel (A). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise about 2 and a half turns. The arrow mark (B) on the cable reel label point should point straight up.

Fig 1: Centering Cable Reel
Position the two tabs (A) of the turn signal canceling sleeve (B) as shown in Fig 2 , and install the steering wheel on to the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

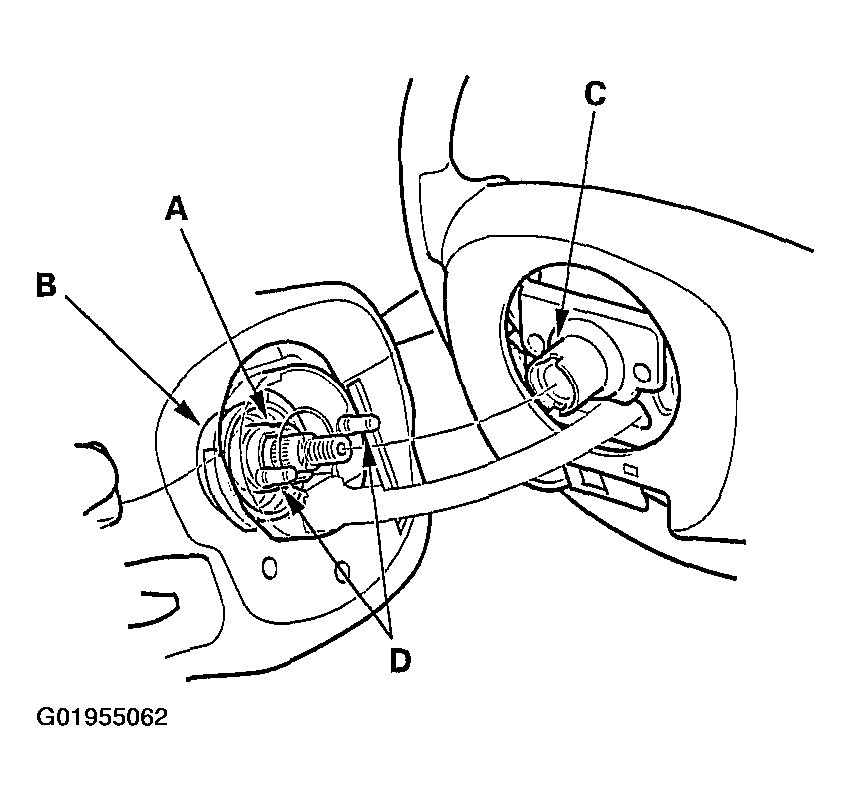

Fig 2: Positioning Tabs Of Turn Signal Canceling Sleeve
Install the steering wheel nut (A) or nut and tighten it.

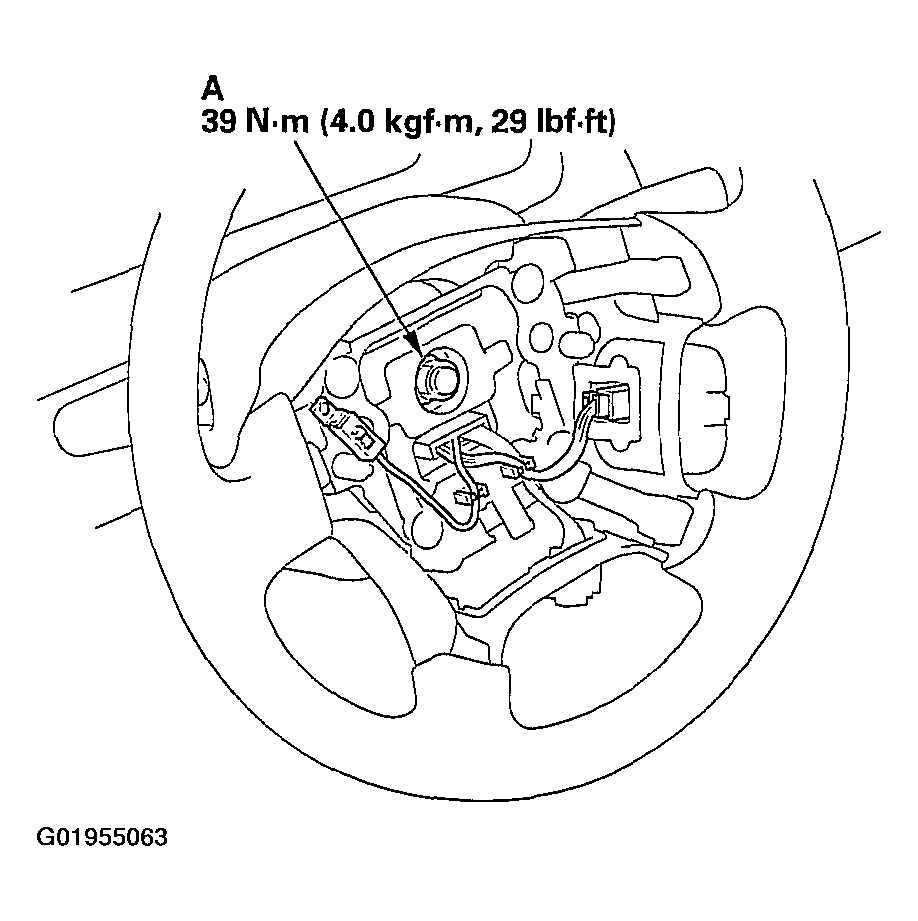

Fig 3: Installing Steering Wheel Nut
Connect the horn switch connector and the cruise control set/resume switch connector.
Install the driver's airbag, and confirm that the system is operating properly (see INSTALLATION ).
Check the horn and turn signal cancelling for proper operation.
