Standards & Service Limits: Cooling
Cooling Specifications

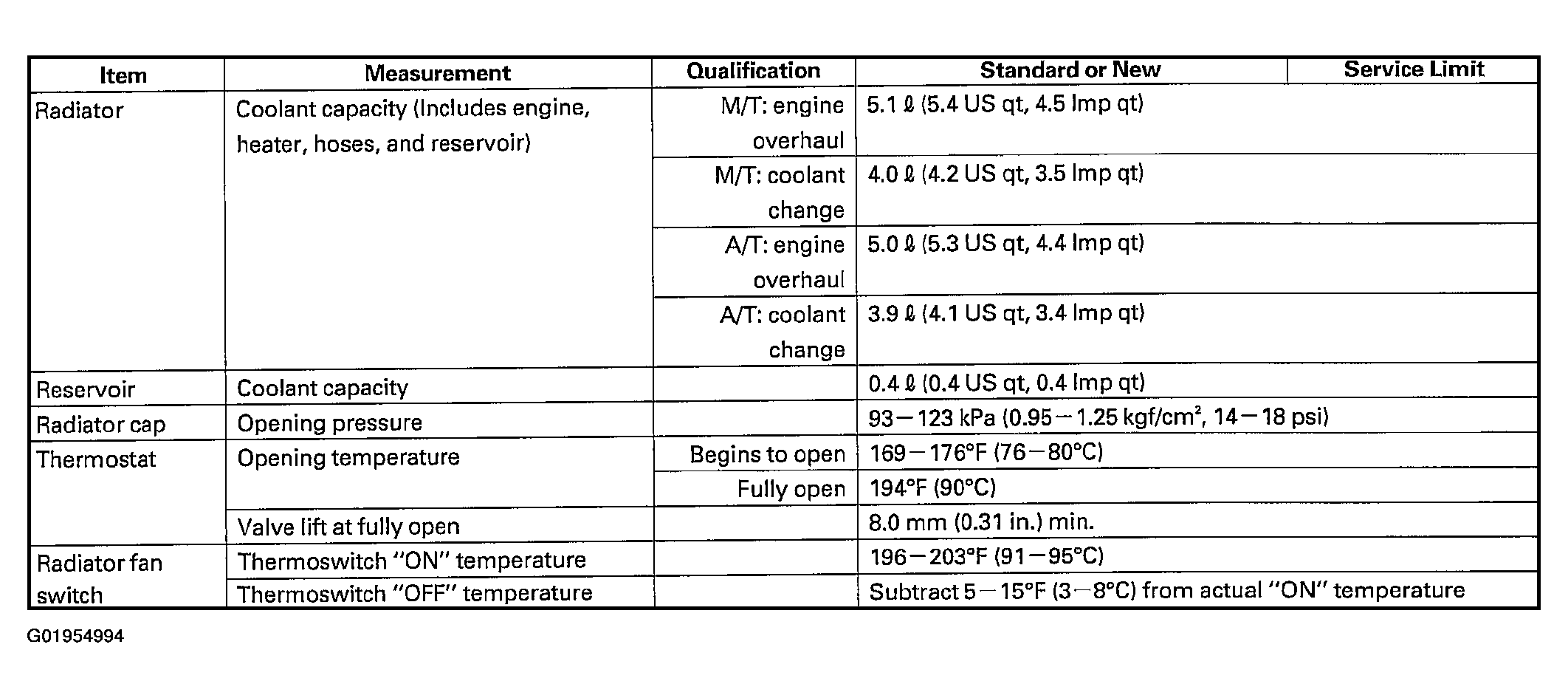

| Item | Measurement | Qualification | Standard or New | Service Limit |
|---|---|---|---|---|
| Radiator | Coolant capacity (Includes engine, heater, hoses, and reservoir) | M/T: engine overhaul | 5.1 l (5.4 US qt, 4.5 lmp qt) | |
| M/T: coolant change | 4.0 l (4.2 US qt, 3.5 lmp qt) | |||
| A/T: engine overhaul | 5.0 l (5.3 US qt, 4.4 lmp qt) | |||
| A/T: coolant change | 3.9 l (4.1 US qt, 3.4 lmp qt) | |||
| Reservoir | Coolant capacity | 0.4 l (0.4 US qt, 0.4 lmp qt) | ||
| Radiator cap | Opening pressure | 93-123 kPa (0.95-1.25 kgf/cm2 , 14-18 psi) | ||
| Thermostat | Opening temperature | Begins to open | 169-176°F (76-80°C) | |
| Fully open | 194°F (90°C) | |||
| Valve lift at fully open | 8.0 mm (0.31 in.) min. | |||
| Radiator fan switch | Thermoswitch "ON" temperature | 196-203°F (91-95°C) | ||
| Thermoswitch "OFF" temperature | Subtract 5 -15°F (3-8°C) from actual "ON" temperature | |||
