ECM/PCM Inputs and Outputs at Connector E (31P)

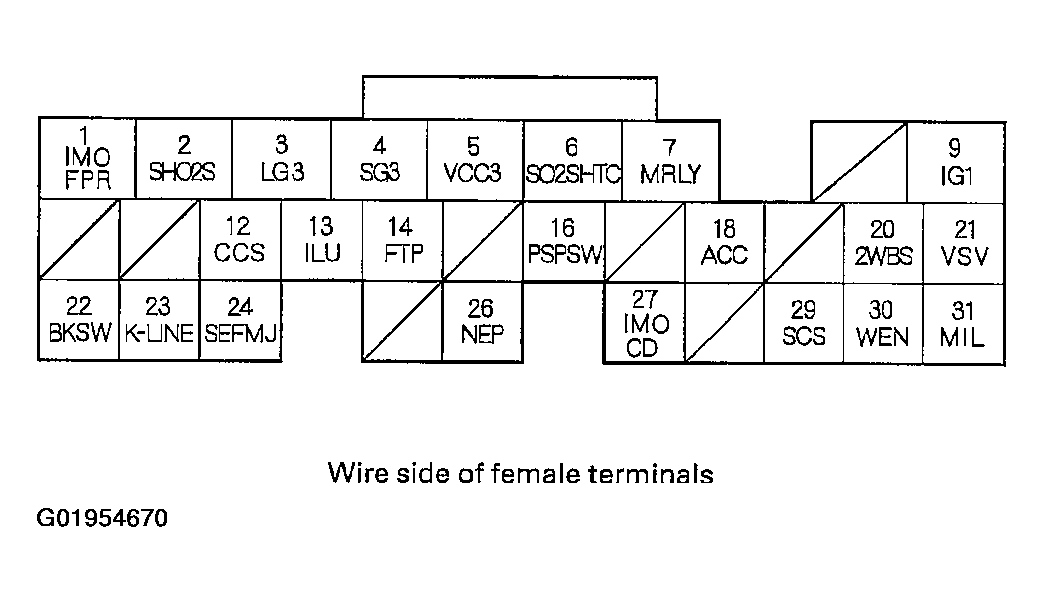

Fig 1: Identifying Connector E (31P) Terminals
G01954670

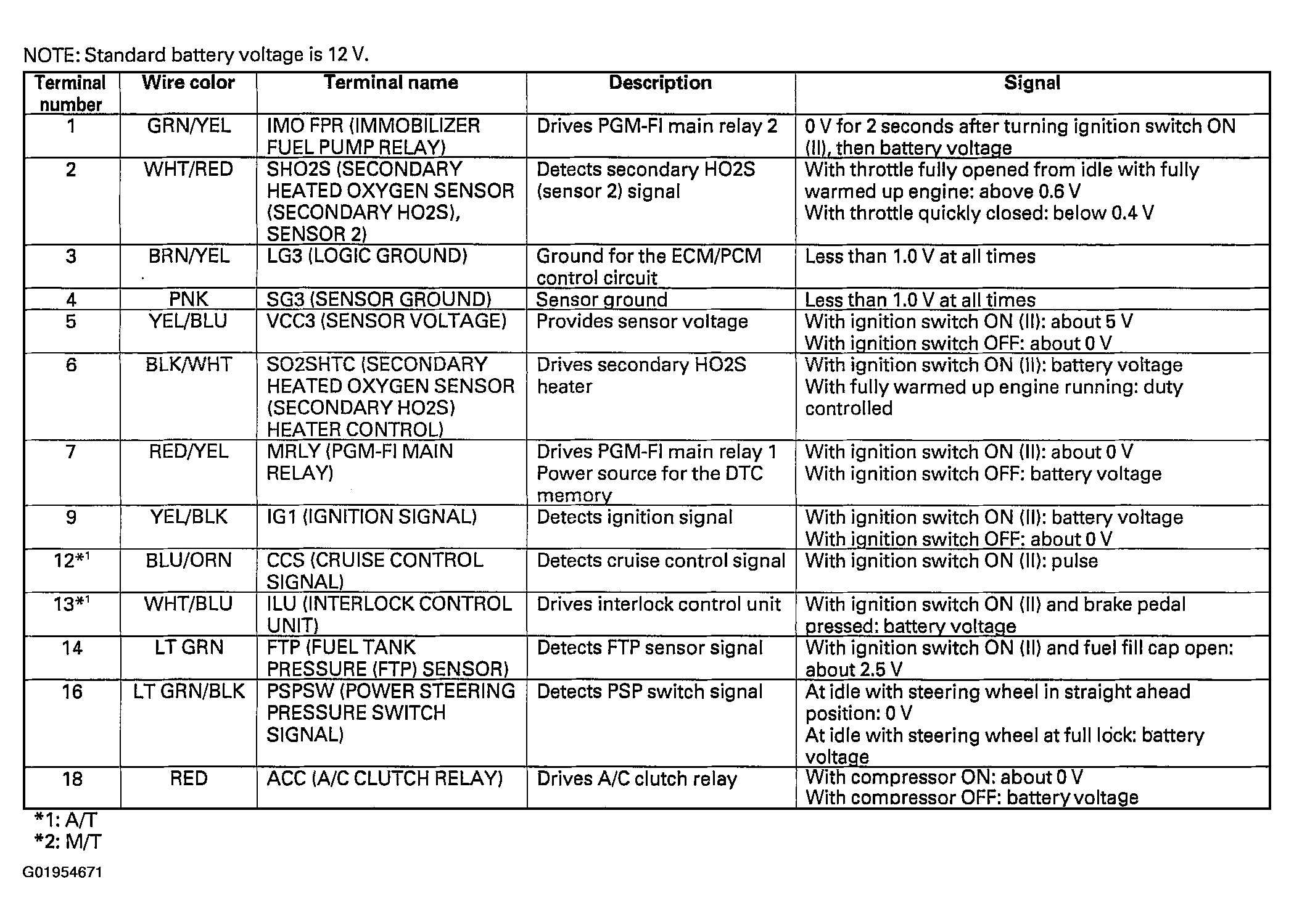

Fig 2: ECM/PCM Connector E (31P) Inputs & Outputs Pin Voltage Chart
G01954671

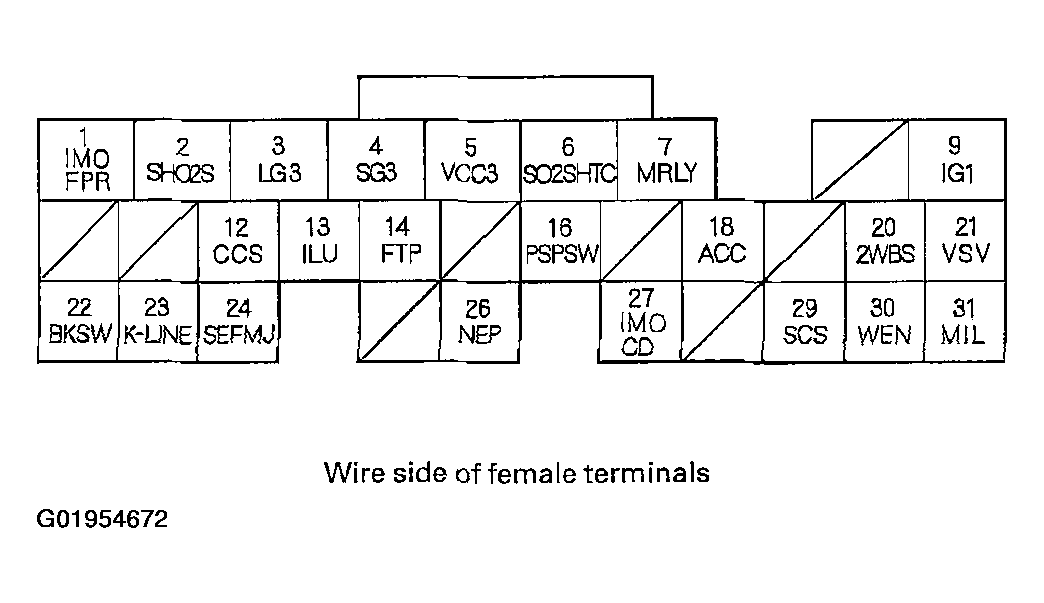

Fig 1: Identifying Connector E (31P) Terminals
G01954672

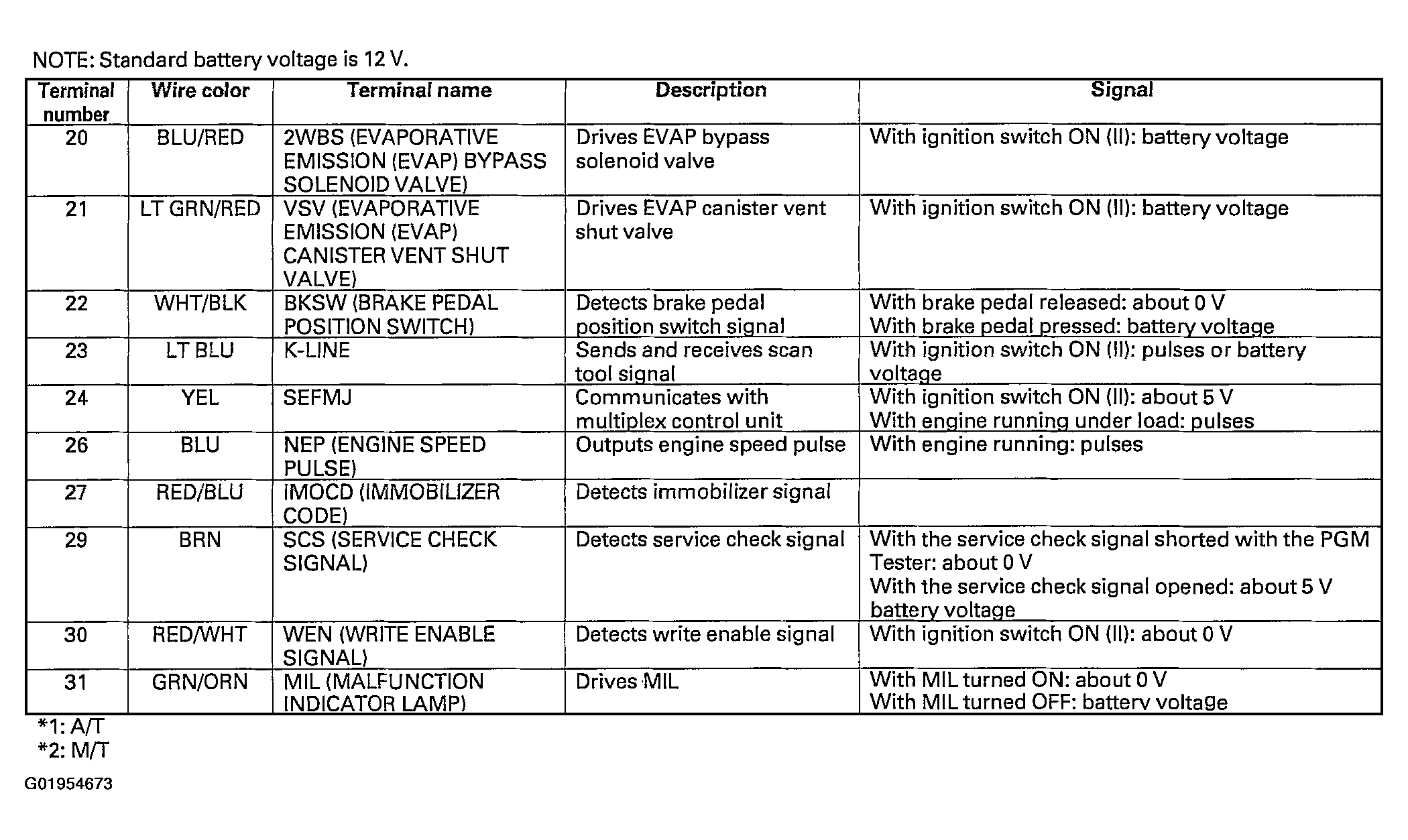

Fig 2: ECM/PCM Connector E (31P) Inputs & Outputs Pin Voltage Chart
G01954673
