ECM/PCM Inputs and Outputs at Connector B (24P)
ECM/PCM Inputs and Outputs at Connector B (24P)

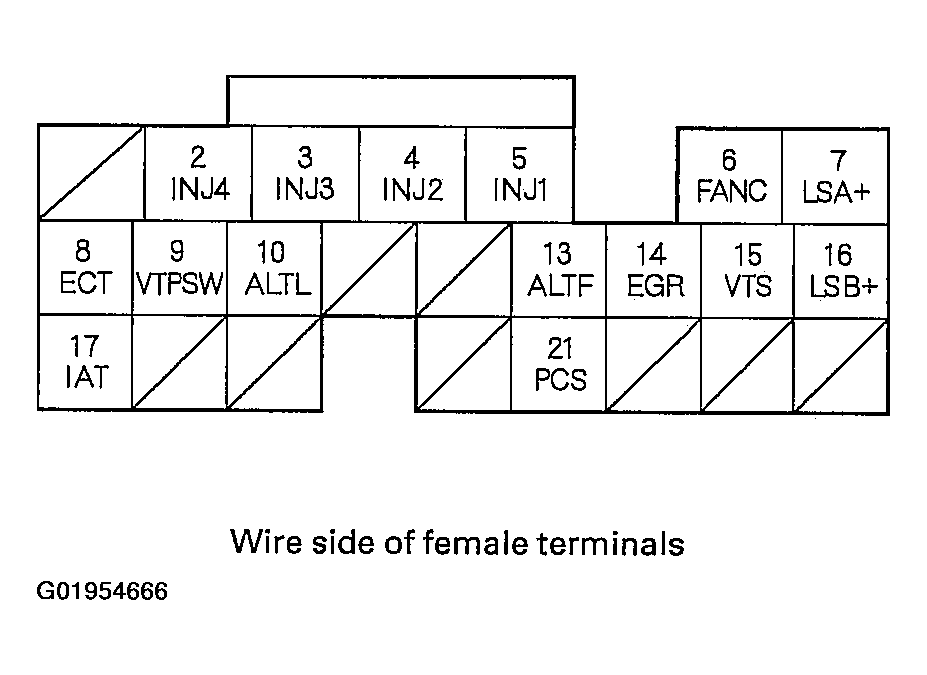

Fig 1: Identifying Connector B (24P) Terminals

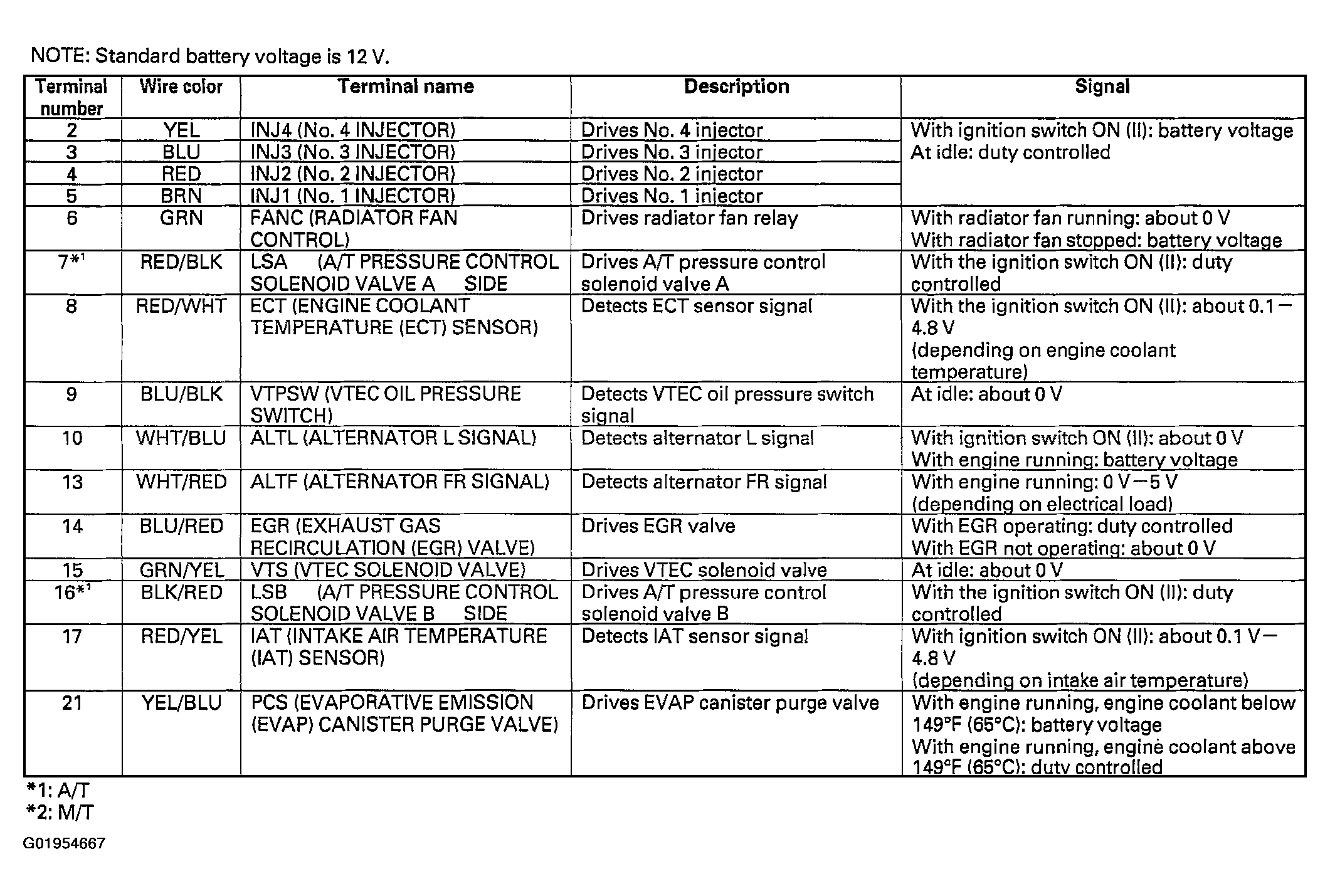

Fig 2: ECM/PCM Connector B (24P) Inputs & Outputs Pin Voltage Chart
