How to Remove the ECM/PCM for Testing

If the inspection for a trouble code requires voltage or resistance checks at the ECM/PCM connectors, remove the ECM/PCM and test it:

1. Remove the passenger's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ), the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREA ), and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
2. Remove the bolt. Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown in Fig 1 , and discard it.

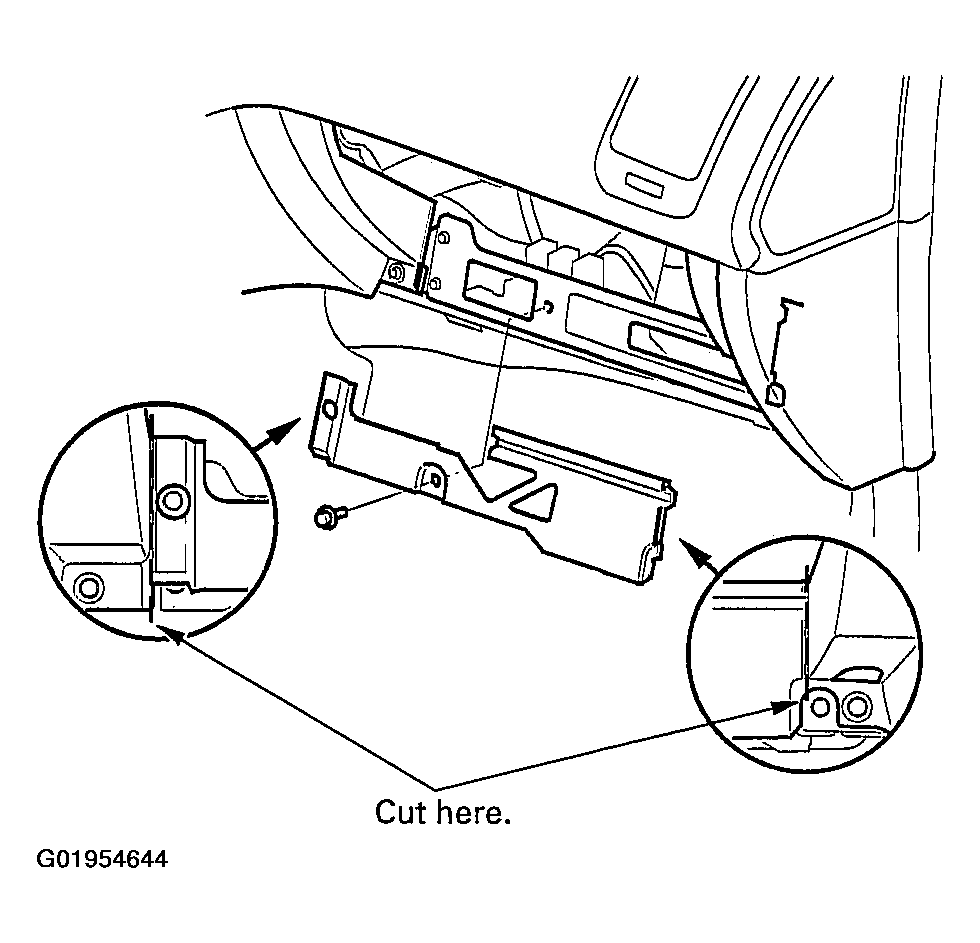

   Fig 1: Cutting Plastic Cross Brace In Glove Box Opening With Diagonal Cutters


3. Remove the relays (A), then remove the bolts and the glove box frame (B).

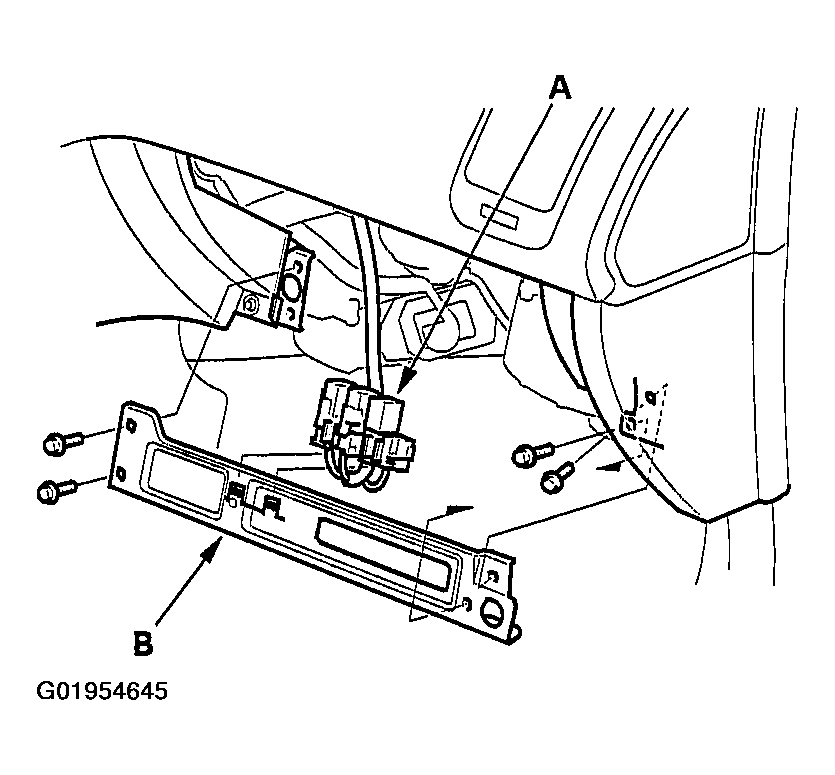

   Fig 2: Removing Relays, Bolts & Glove Box Frame


4. Remove the gray 20P ECM/PCM wire harness connector from the ECM/PCM mounting bracket. Remove the ECM/PCM mounting bolt (A) and the bracket.

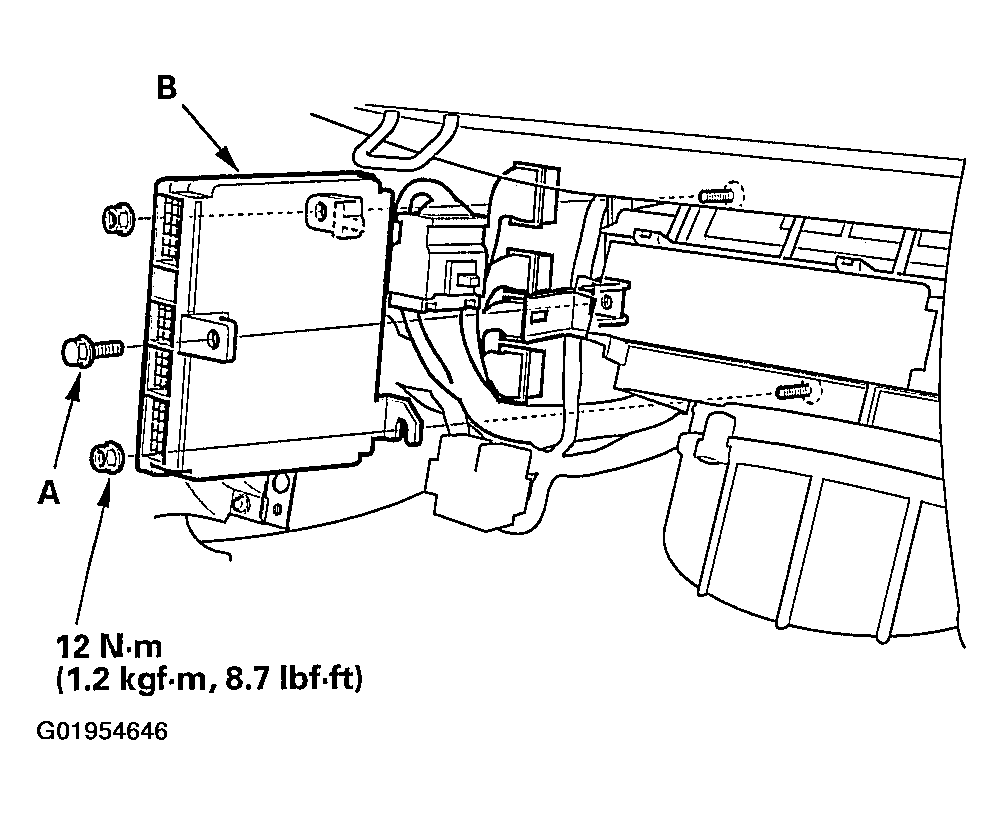

   Fig 3: Removing Gray 20P ECM/PCM Wire Harness Connector From ECM/PCM Mounting Bracket


5. Remove the nuts, then remove the ECM/PCM (B).
