Home >> Acura >> 2003 >> 1.7EL Standard >> Repair and Diagnosis >> Engine Performance >> System >> Fuel & Emissions Systems >> DTC Troubleshooting Index

DTC Troubleshooting Index

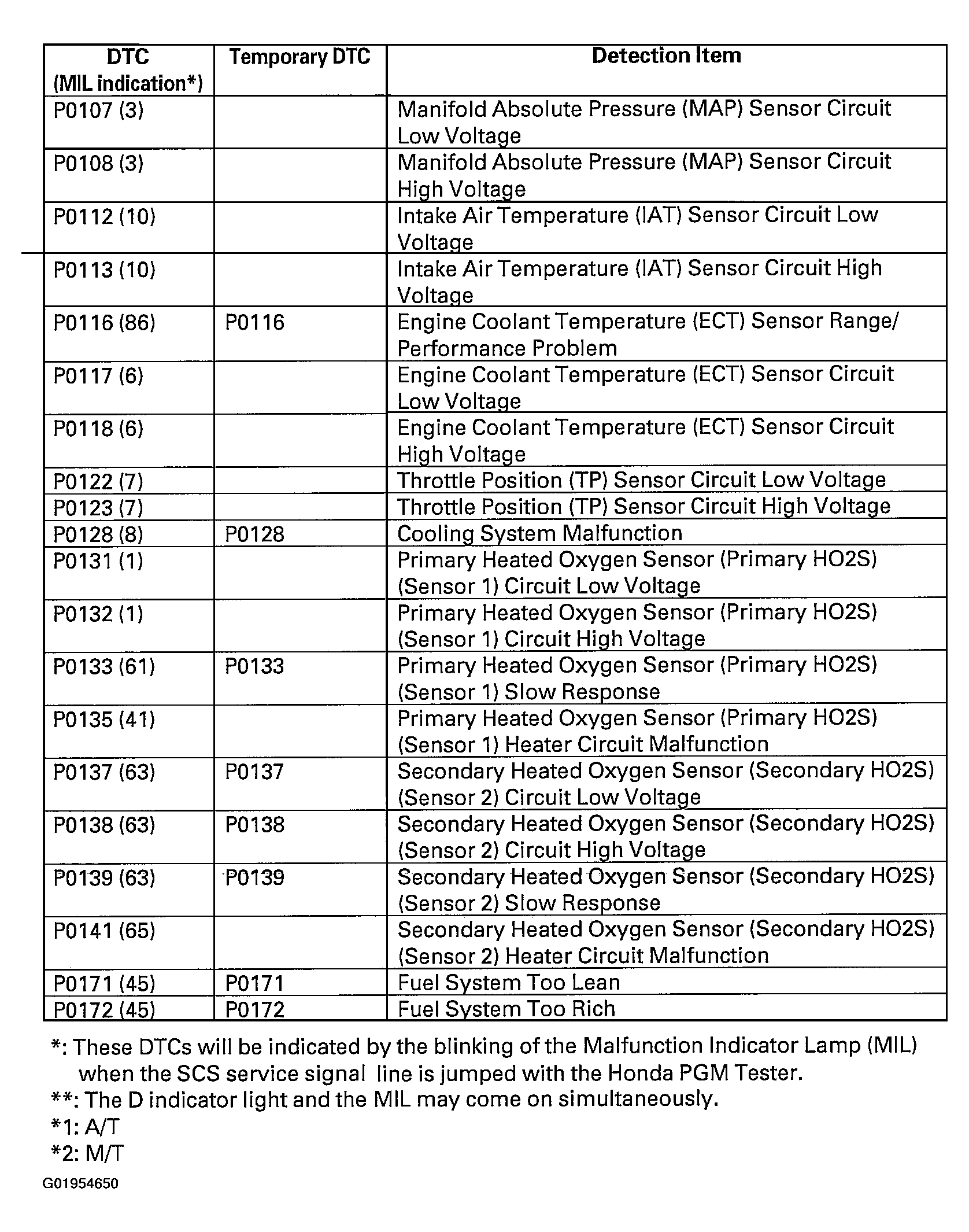

Fig 1: DTC Troubleshooting Chart (1 Of 3)

G01954650

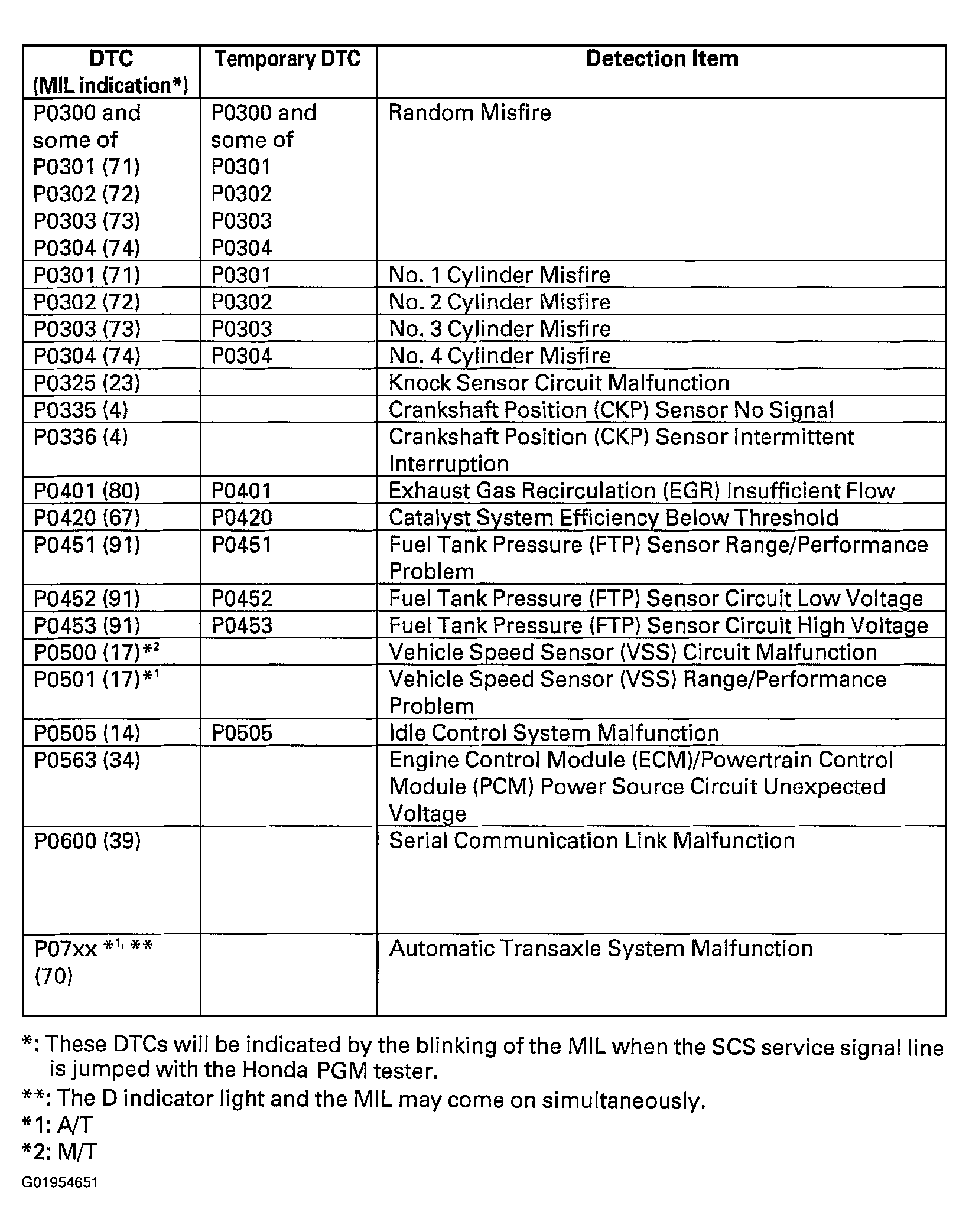

Fig 2: DTC Troubleshooting Chart (2 Of 3)

G01954651

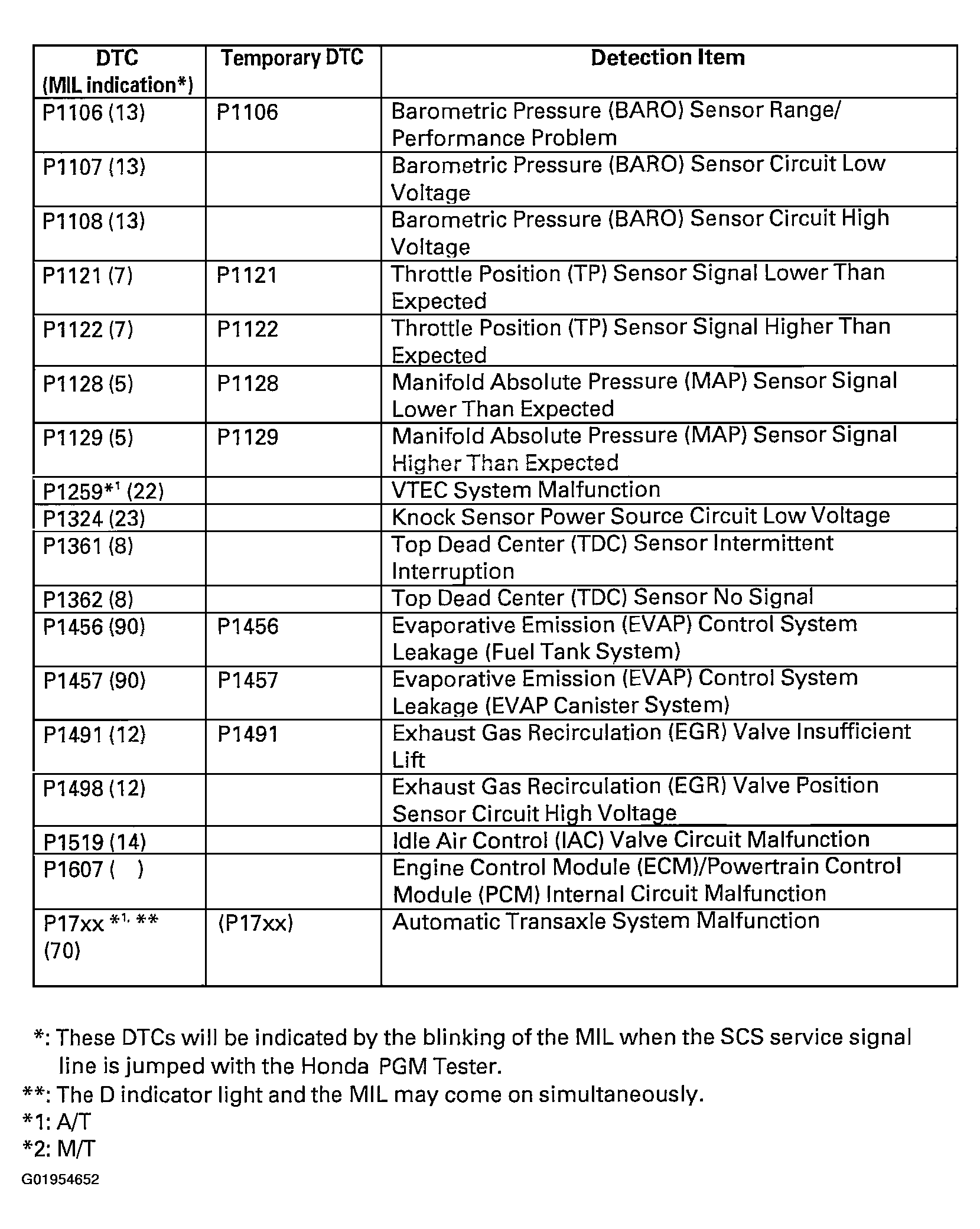

Fig 3: DTC Troubleshooting Chart (3 Of 3)

G01954652
