Starter Solenoid Test

  1. Check the hold-in coil for continuity between the S terminal (A) and the armature housing (ground). There should be continuity.
    • If there is continuity, go to step 2.
    • If there is no continuity, replace the solenoid.

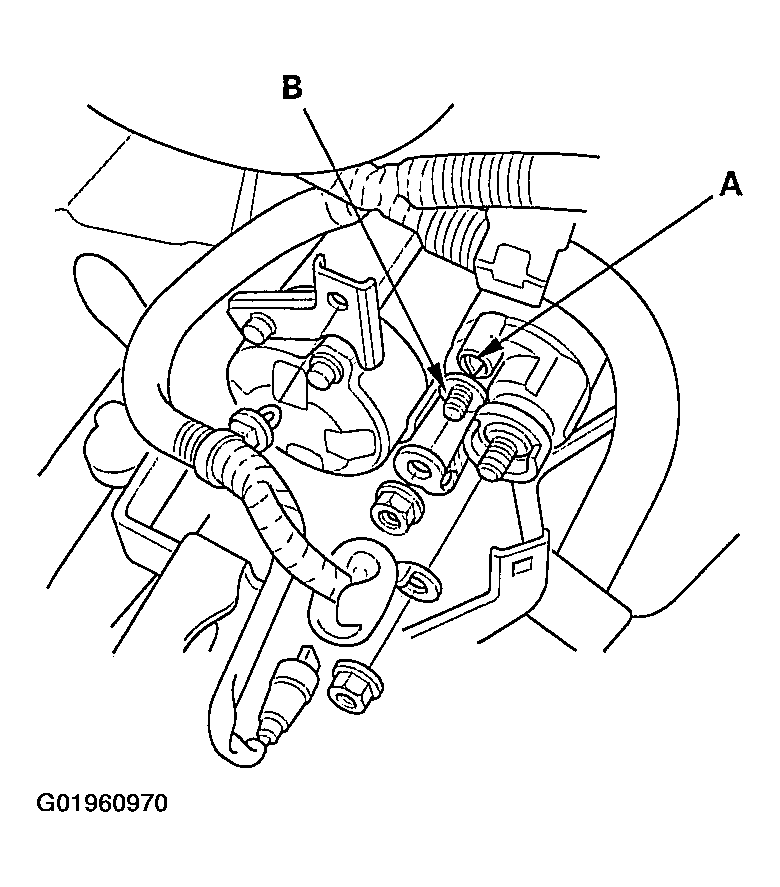

    Fig 1: Checking Hold-In Coil Continuity Between S Terminal & Armature Housing (M/T)
    G01960970

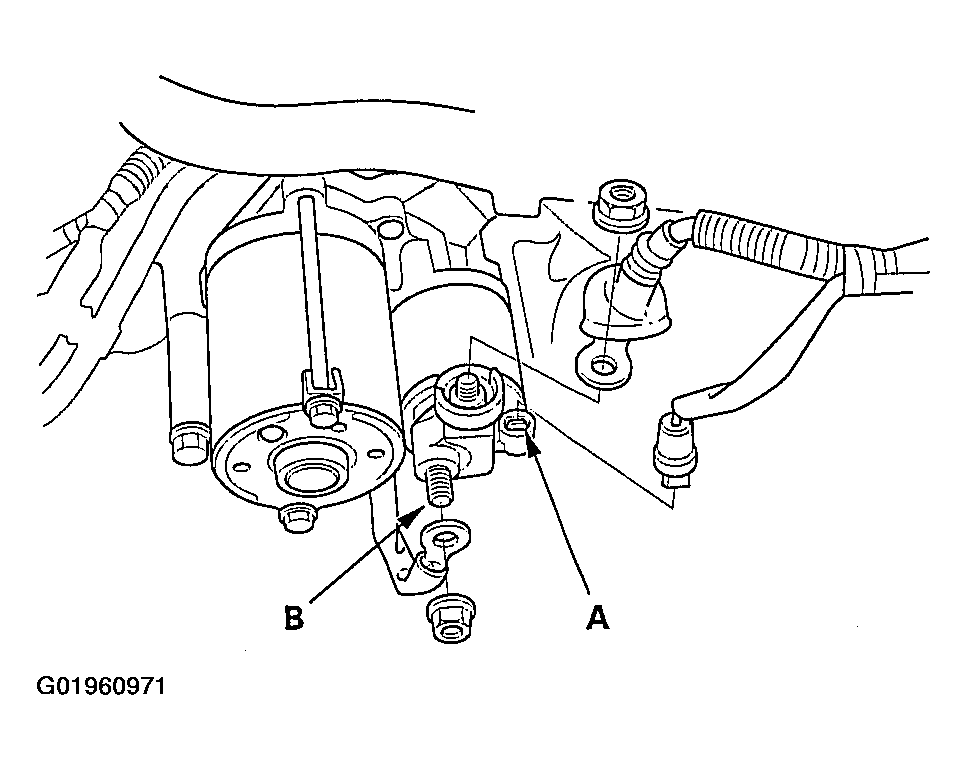

    Fig 2: Checking Hold-In Coil Continuity Between S Terminal & Armature Housing (A/T)
    G01960971
  2. Check the pull-in coil for continuity between the S terminal (A) and M terminal (B). There should be continuity.
    • If there is continuity, the solenoid is OK.
    • If there is no continuity, replace the solenoid.
