Motor Test:

  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 4P connector (A) from the driver's window motor.

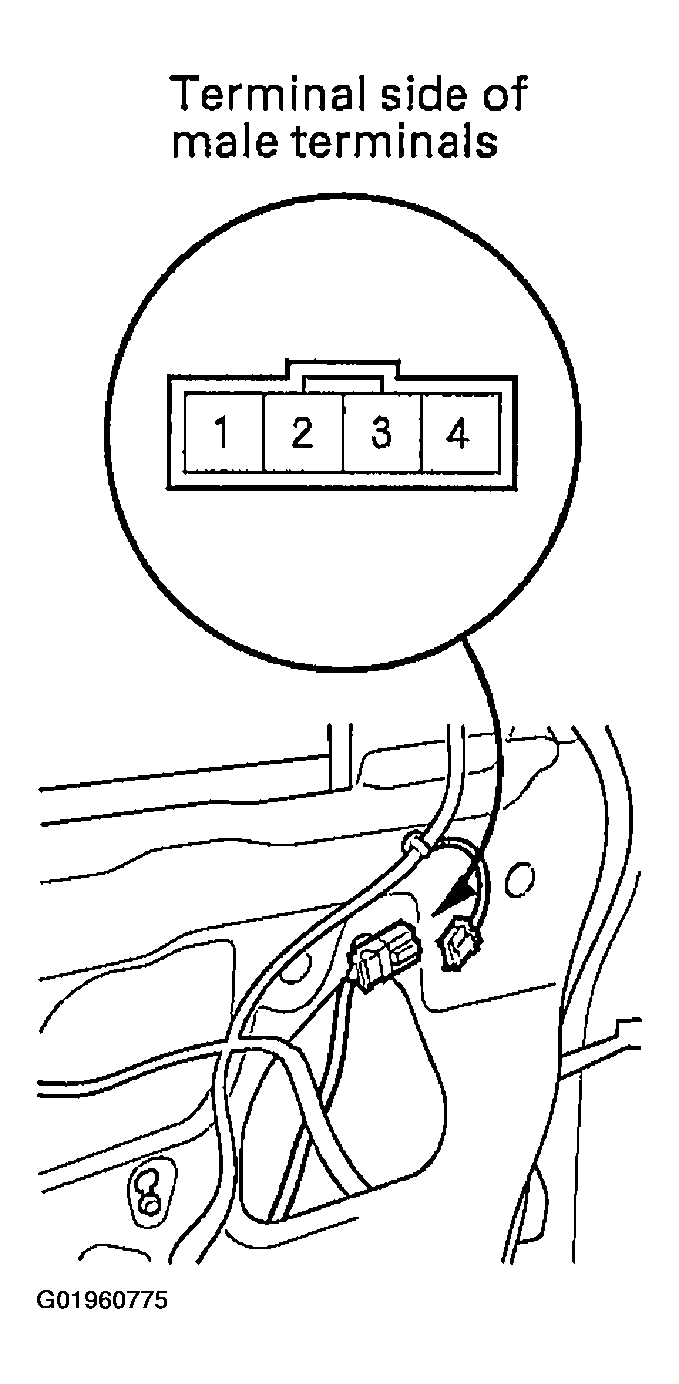

    Fig 1: Disconnecting 4P Connector From Driver's Window Motor
    G01960775
  3. Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.
    Fig 2: Testing Motor By Connecting Battery Power & Ground Table
    G01960776
  4. If the motor does not run or fails to run smoothly, replace it.
