Circuit Diagram

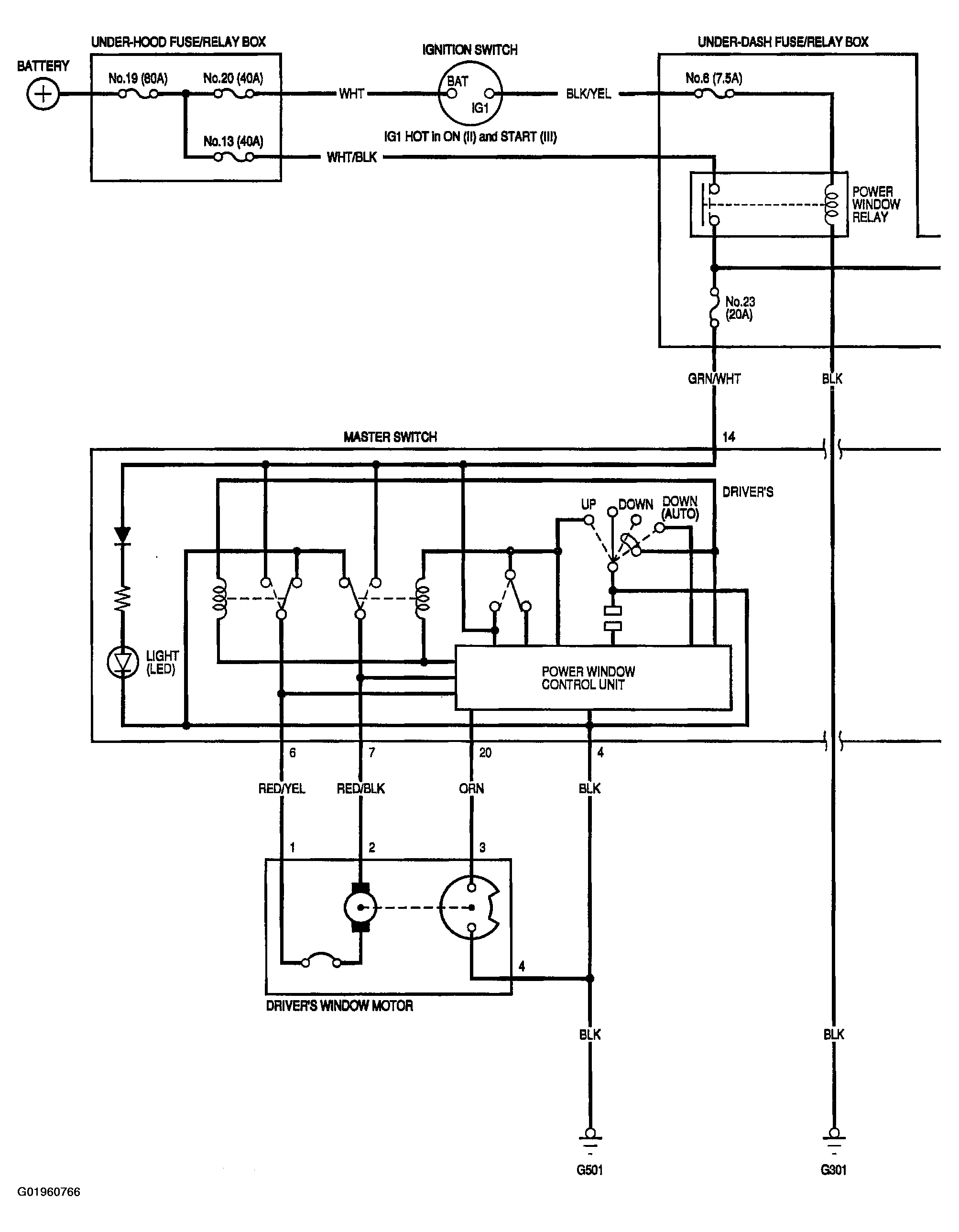

Fig 1: Power Windows Circuit Diagram (1 Of 2)

G01960766

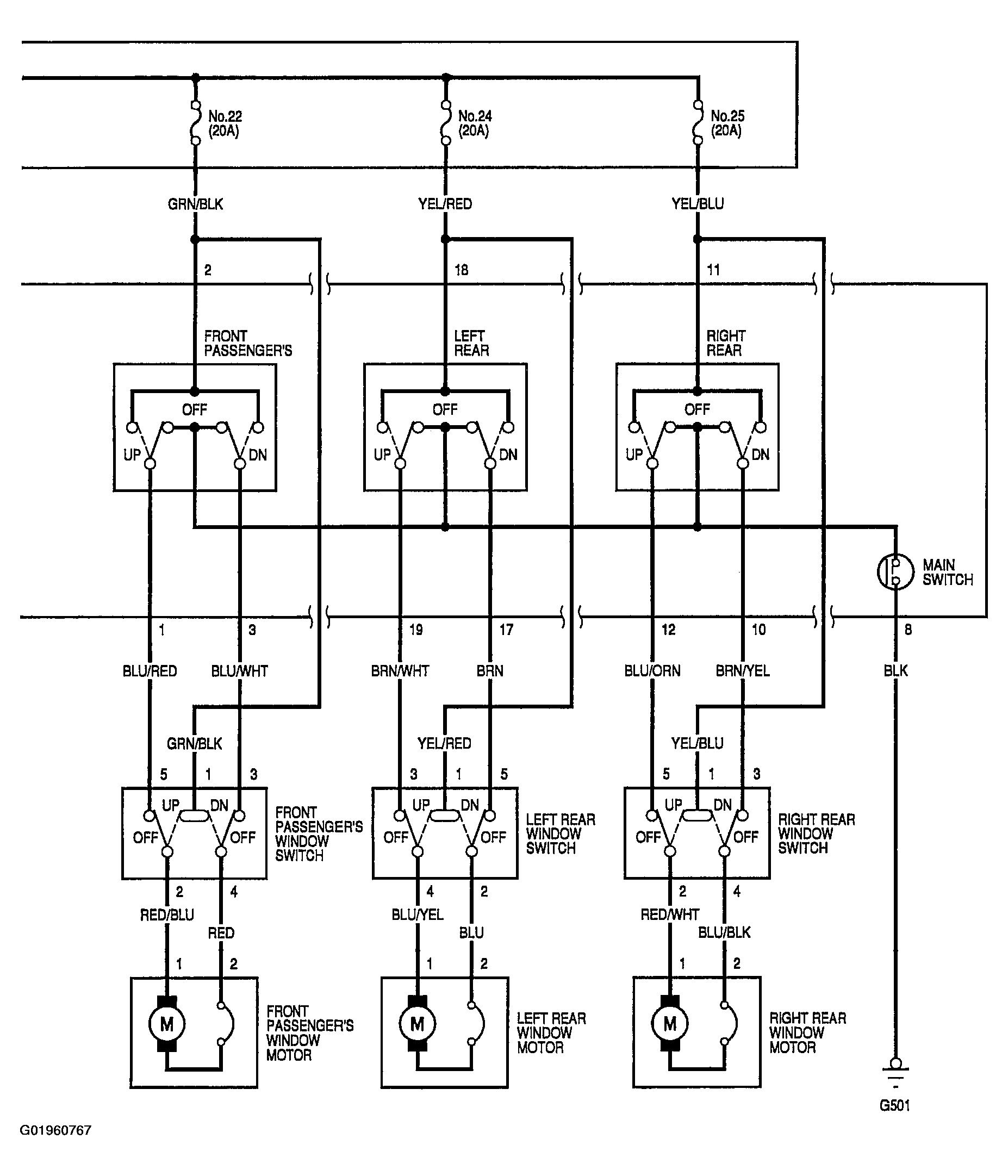

Fig 2: Power Windows Circuit Diagram (2 Of 2)

G01960767
