PCM Inputs and Outputs at Connector C (22P)

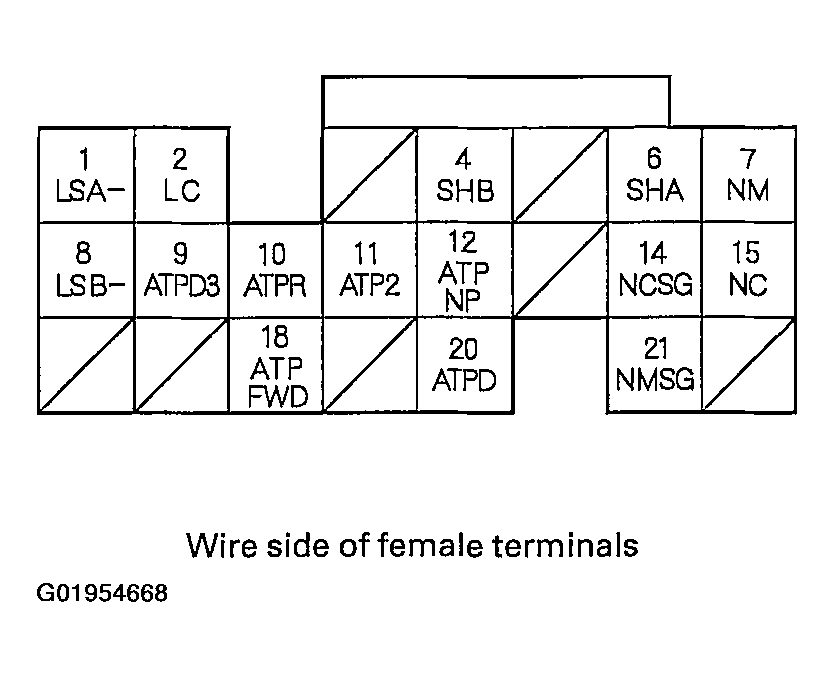

Fig 1: Identifying Connector C (22P) Terminals

G01954668

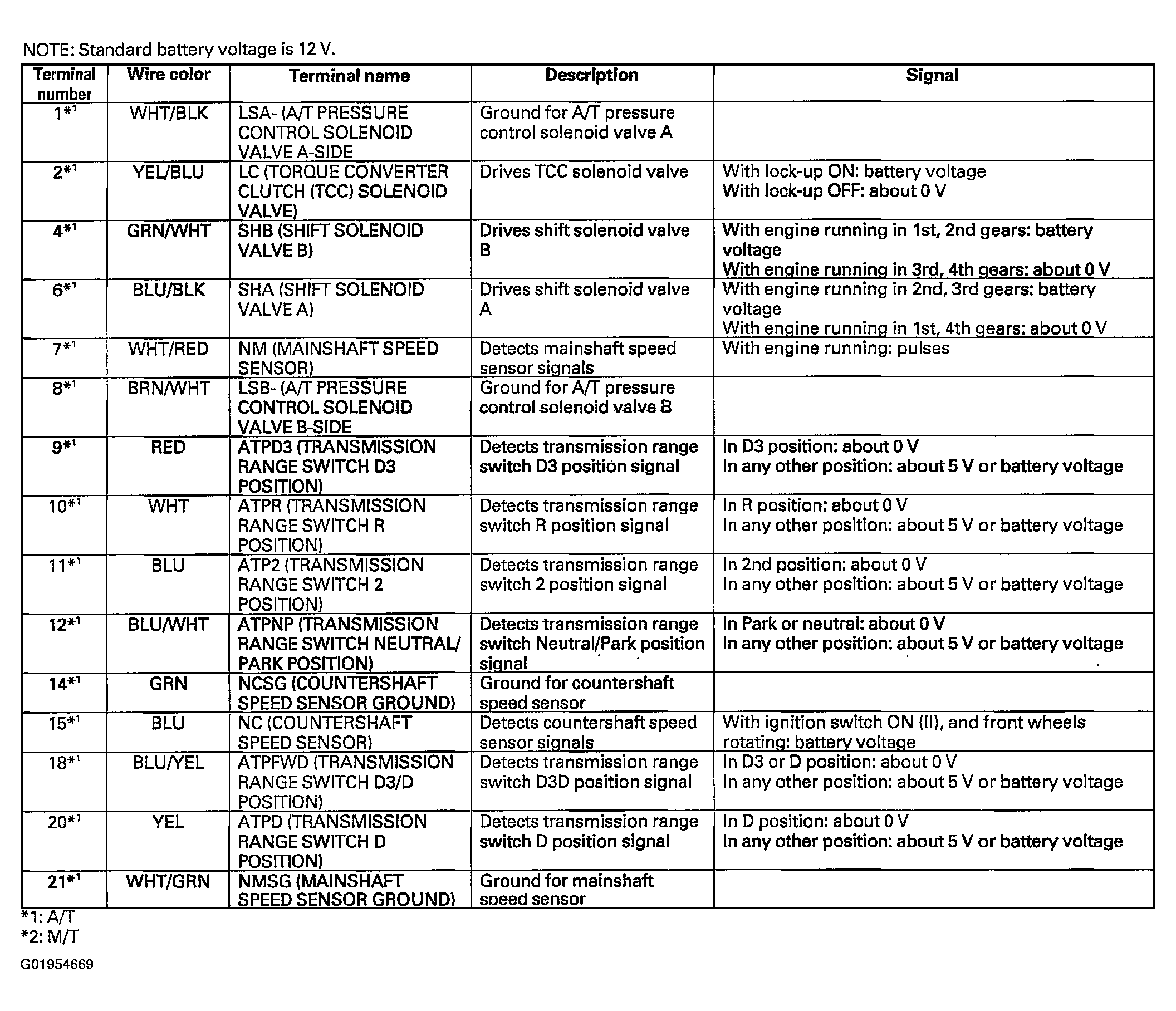

Fig 2: PCM Connector C (22P) Inputs & Outputs Pin Voltage Chart

G01954669
