Countershaft Bearing Replacement

Special Tools Required

• Adjustable bearing puller, 25-40 mm 07736-A01000B or 07736-A01000A
• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500

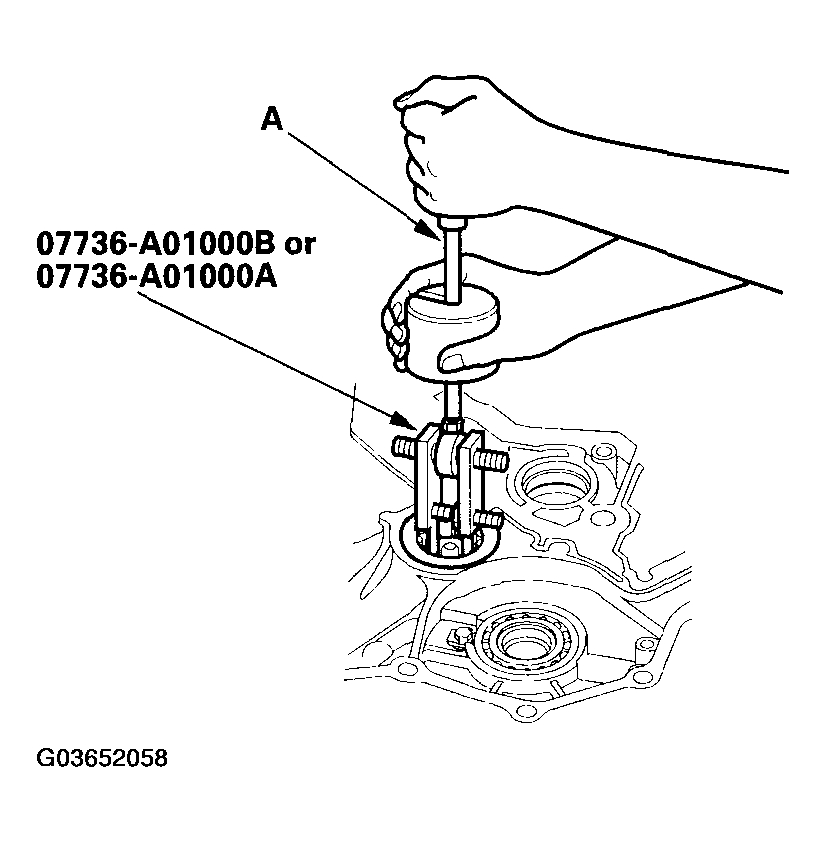

1. Remove the countershaft bearing with the special tool and a commercially available 3/8" -16 slide hammer (A).
   Fig 1: Removing Countershaft Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the ATF guide plate (A).
   Fig 2: Installing ATF Guide Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new countershaft bearing (B) in the housing with the special tools.
