Regulator Valve Body

The regulator valve body contains the regulator valve, the torque converter check valve, lock up shift valve, and the 1st and 3rd accumulators.

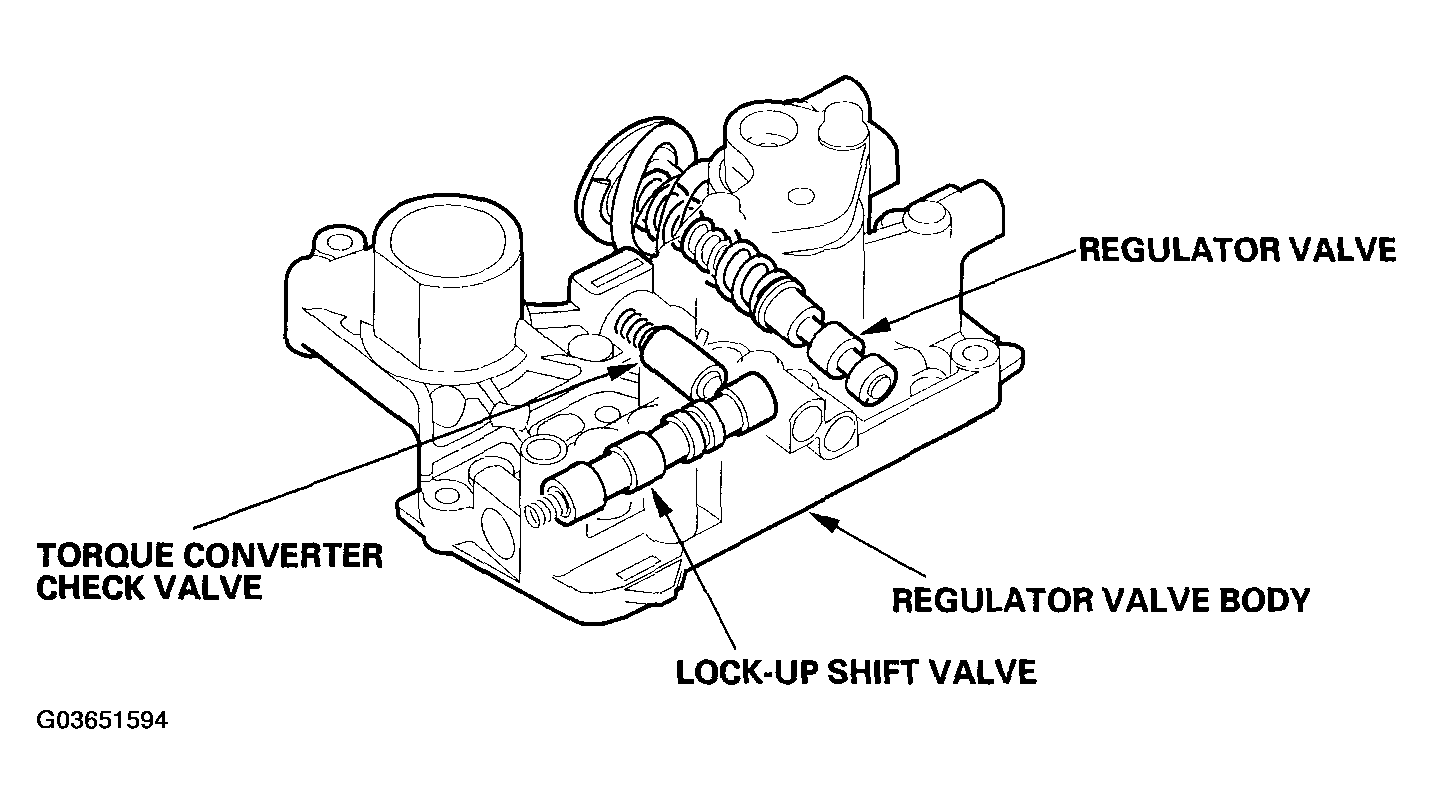

Fig 1: Identifying Hydraulic Controls Regulator Valve Body
G03651594Courtesy of AMERICAN HONDA MOTOR CO., INC.
