Rod Bearing Clearance Inspection

  1. Remove the oil pump (see OIL PUMP REMOVAL ).
  2. Remove the baffle plate (see step  7 ).
  3. Remove the connecting rod cap and bearing half.
  4. Clean the crankshaft rod journal and bearing half with a clean shop towel.
  5. Place plastigage across the rod journal.
  6. Reinstall the bearing half and cap, and torque the bolts.

    Tightening Torque

    K20A3 Engine: 20 N.m (2.0 kgf.m, 14 lbf.ft)

    + 90°

    K20A2, K20Z1 Engines: 29 N.m (3.0 kgf.m, 22 lbf.ft)

    + 90°

    NOTE: Do not rotate the crankshaft during inspection.
  7. Remove the rod cap and bearing half, and measure the widest part of the plastigage.

    Connecting Rod Bearing-to-Journal Oil Clearance

    K20A3 Engine:

    Standard (New): 0.020-0.050 mm

    (0.0008-0.0020 in.)

    Service Limit: 0.060 mm (0.0024 in.)

    K20A2, K20Z1 Engines:

    Standard (New): 0.033-0.061 mm

    (0.0013-0.0024 in.)

    Service Limit: 0.072 mm (0.0028 in.)

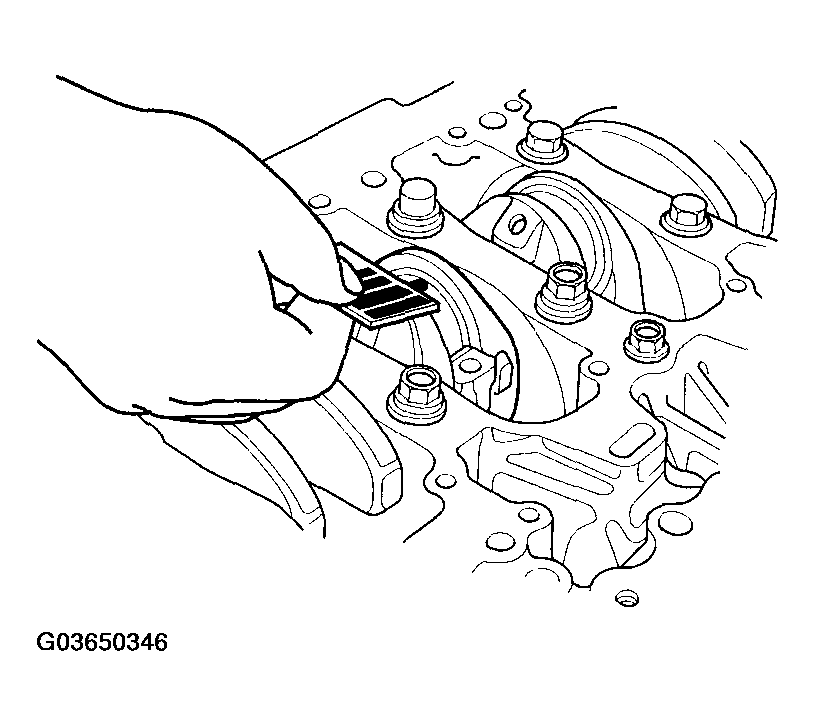

    Fig 1: Measuring The Widest Part Of The Plastigage
    G03650346Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. If the plastigage measures too wide or too narrow, remove the upper half of the bearing, install a new, complete bearing with the same color code(s), and recheck the clearance. Do not file, shim, or scrape the bearings or the caps to adjust clearance.
  9. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the color listed above or below that one), and check clearance again. If the proper clearance cannot be obtained by using the appropriate larger or smaller bearing, replace the crankshaft and start over.
