Drive Belt

Check that auto-tensioner indicator is within the standard range. See Fig 1. If it is out of the standard range, replace the drive belt.

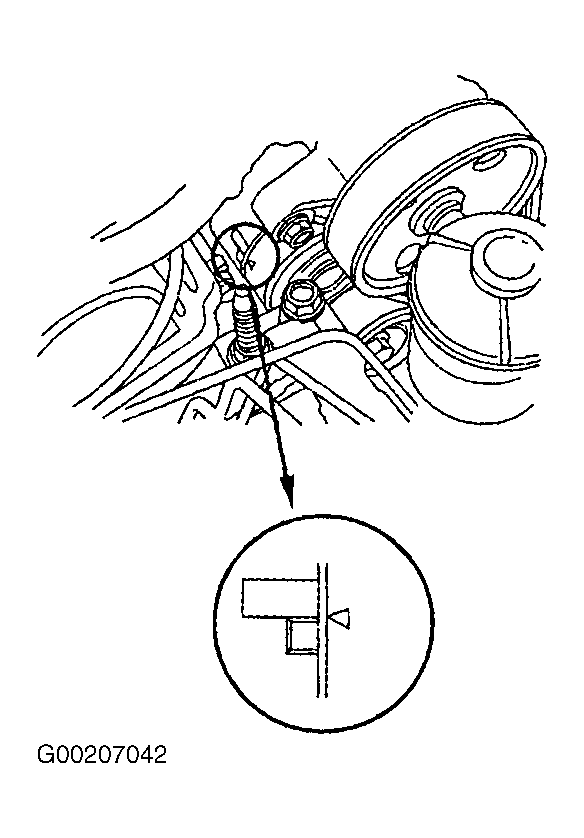

Fig 1: Checking Auto Indicator Position
G00207042Courtesy of AMERICAN HONDA MOTOR CO., INC.
