Center Console Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

1. Remove the dashboard center lower cover (see CENTER PANEL REMOVAL/INSTALLATION ).

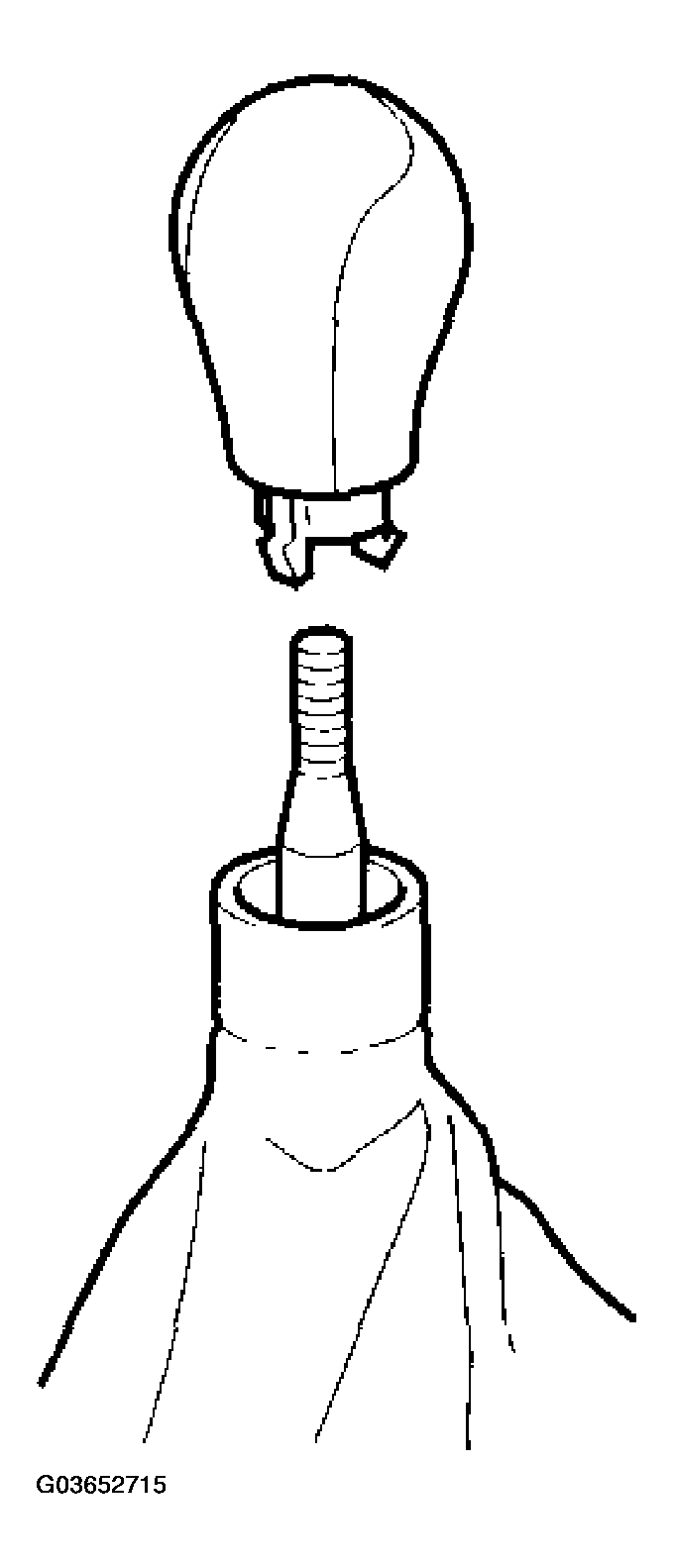

2. M/T model: Remove the shift knob.
   Fig 1: Removing Shift Knob

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

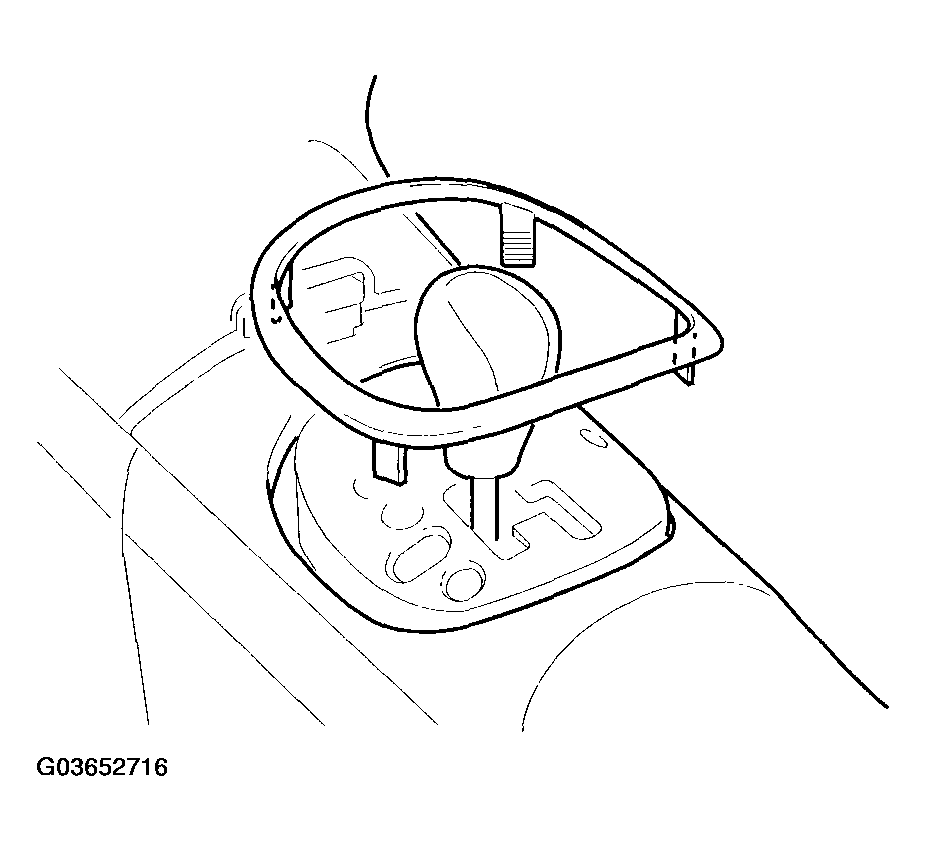

3. A/T model: Remove the shift indicator trim ring.
   Fig 2: Removing Shift Indicator Trim Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

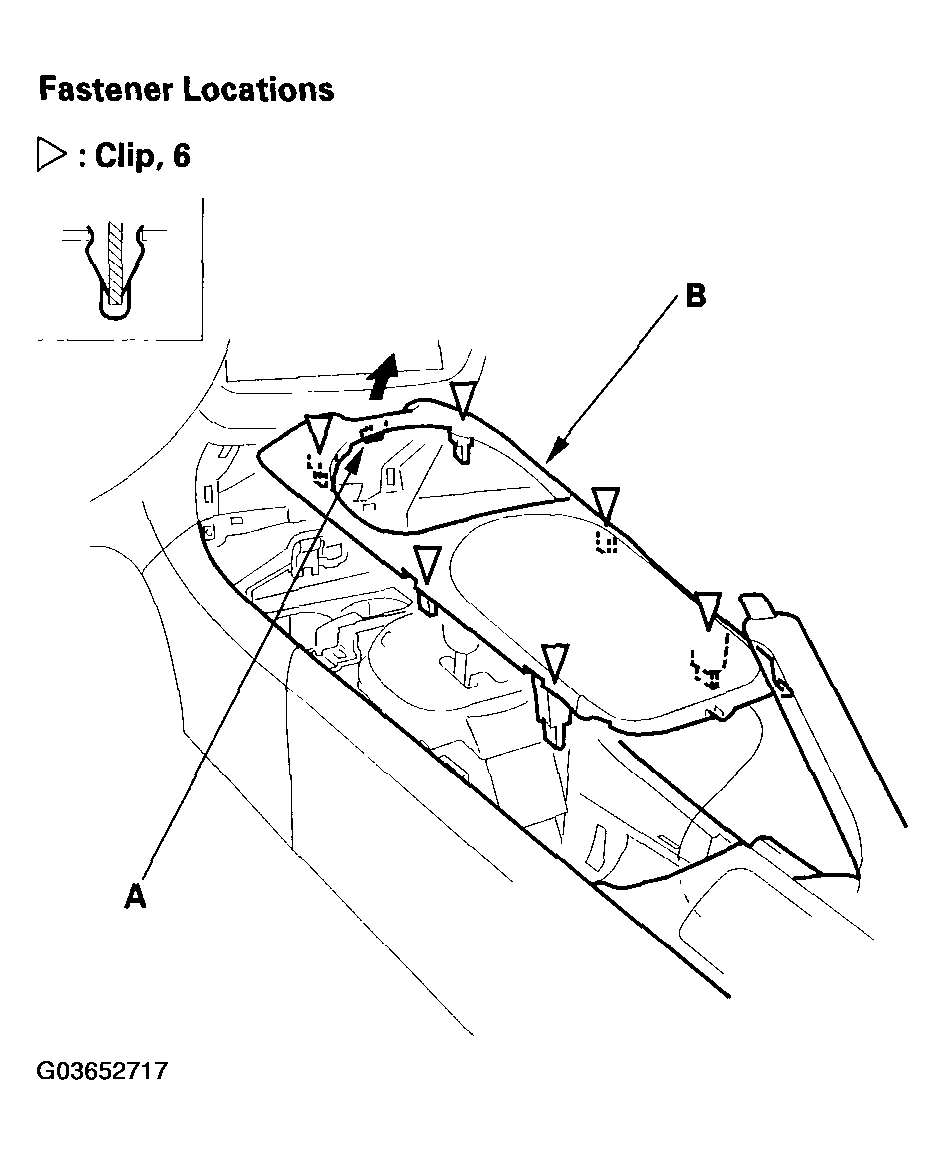

4. Detach the clips, and release the hook (A) by pulling the center console trim (B) up, then remove it. A/T model is shown, M/T model is similar.
   Fig 3: Releasing Hook By Pulling Center Console Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Open the console box lid.

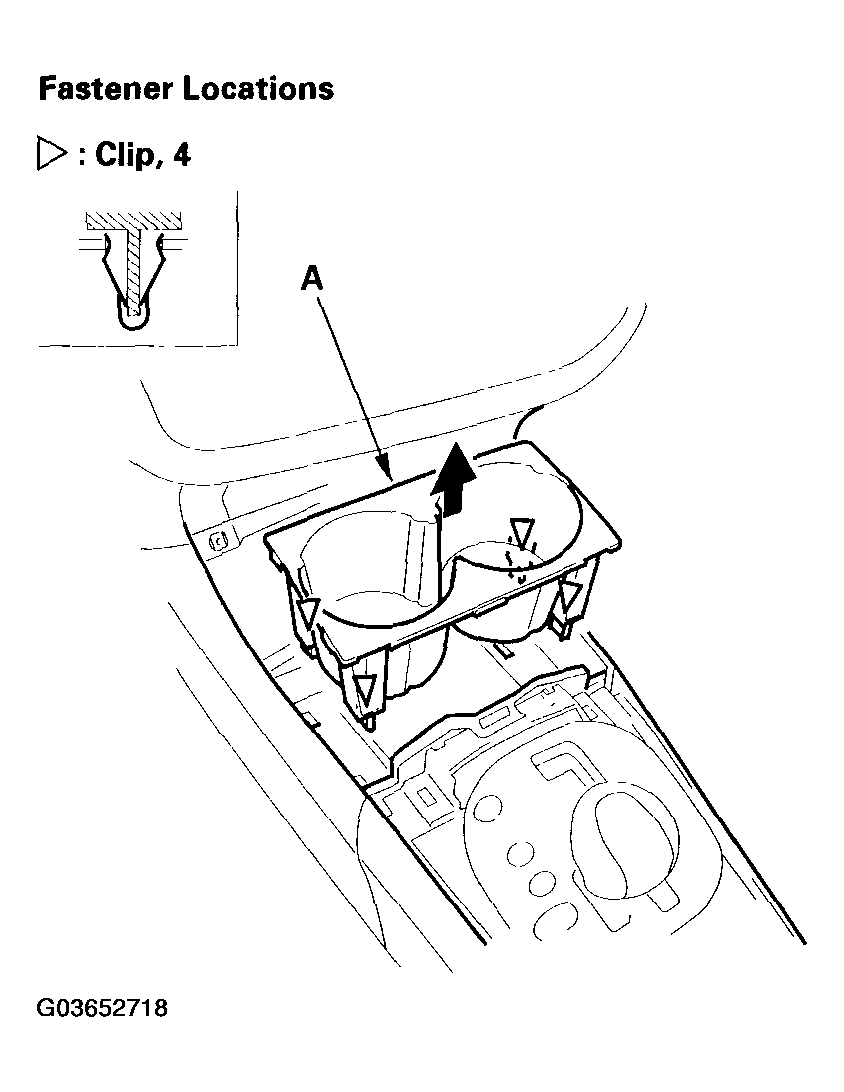

6. Detach the clips by pulling the console beverage holder (A) up by hand, then remove it.
   Fig 4: Pulling Console Beverage Holder

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

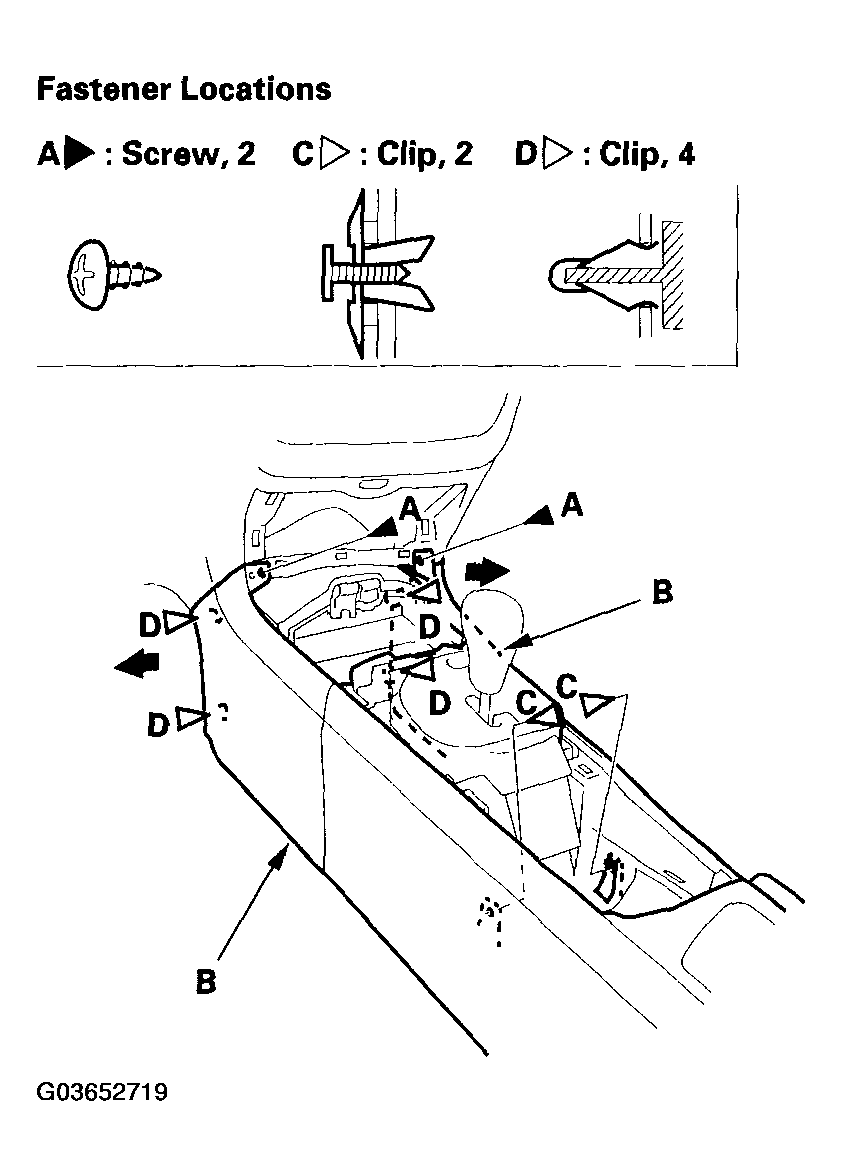

7. Remove the screws (A) from both console side trim (B), and remove the clips (C) from inside of the console. Then detach the front clips (D) by pulling the trim outward.
   Fig 5: Removing Clips From Inside Of Console

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

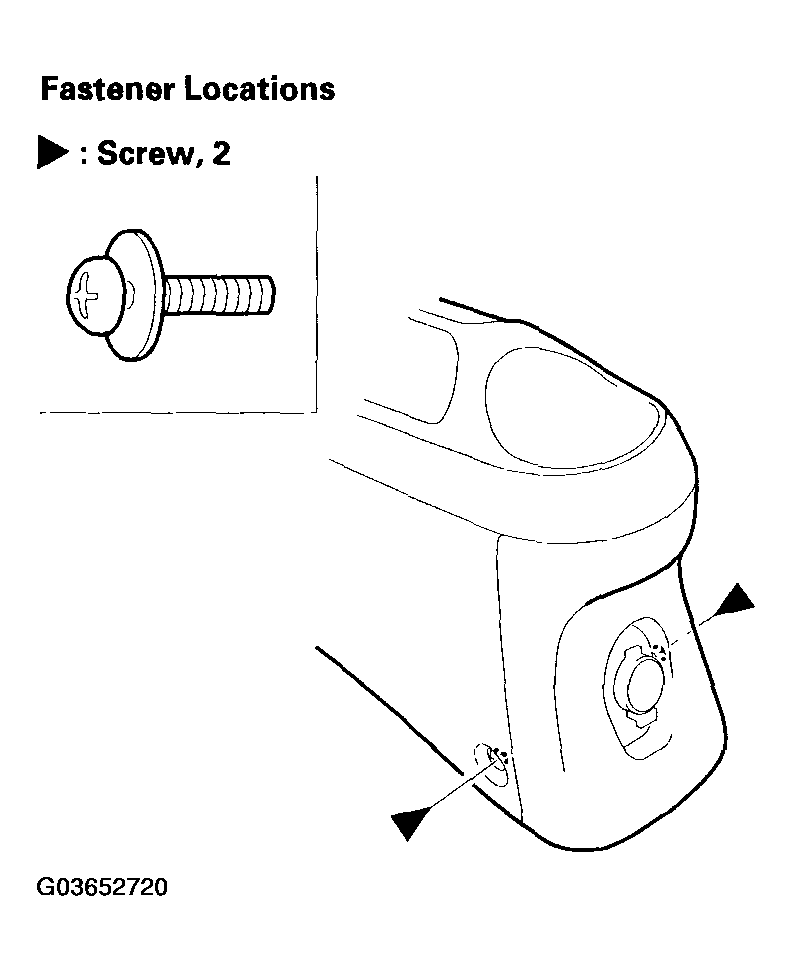

8. Remove the screws from the rear end of the console.
   Fig 6: Removing Screws From Rear End Of Console

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

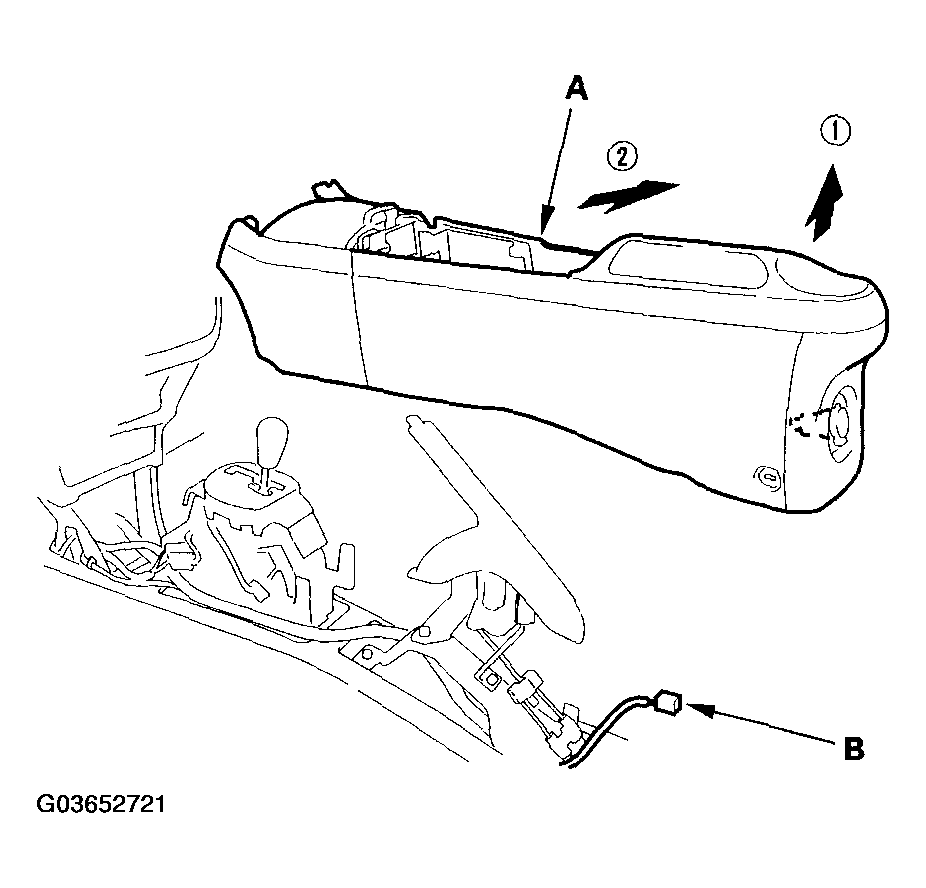

9. Remove the center console (A).
   • 1 Close the console lid.
   • 2 Lift up the rear of the console.
   • 3 Disconnect the accessory power socket connector (B) (for some models).
   • 4 Pull the console backward to remove it.
     Fig 7: Removing Center Console

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Install the console in the reverse order of removal, and note these items:
    • Replace any damaged or stress-whitened clips.
    • Make sure the accessory power socket connector is plugged in properly.
    • Push the clips into place securely.
