Component Location Index

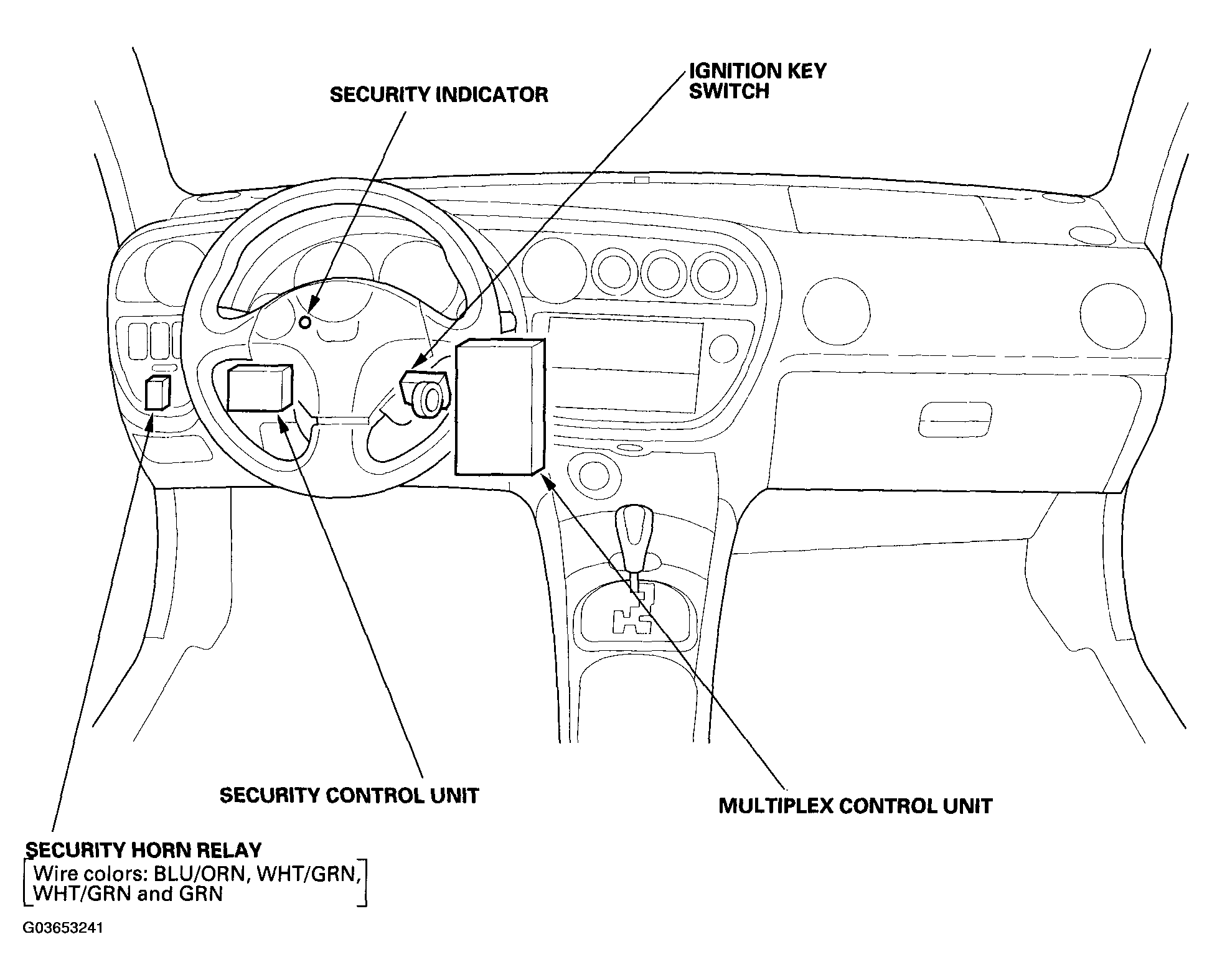

Fig 1: Identifying Security Alarm System Components (1 Of 2)
G03653241Courtesy of AMERICAN HONDA MOTOR CO., INC.

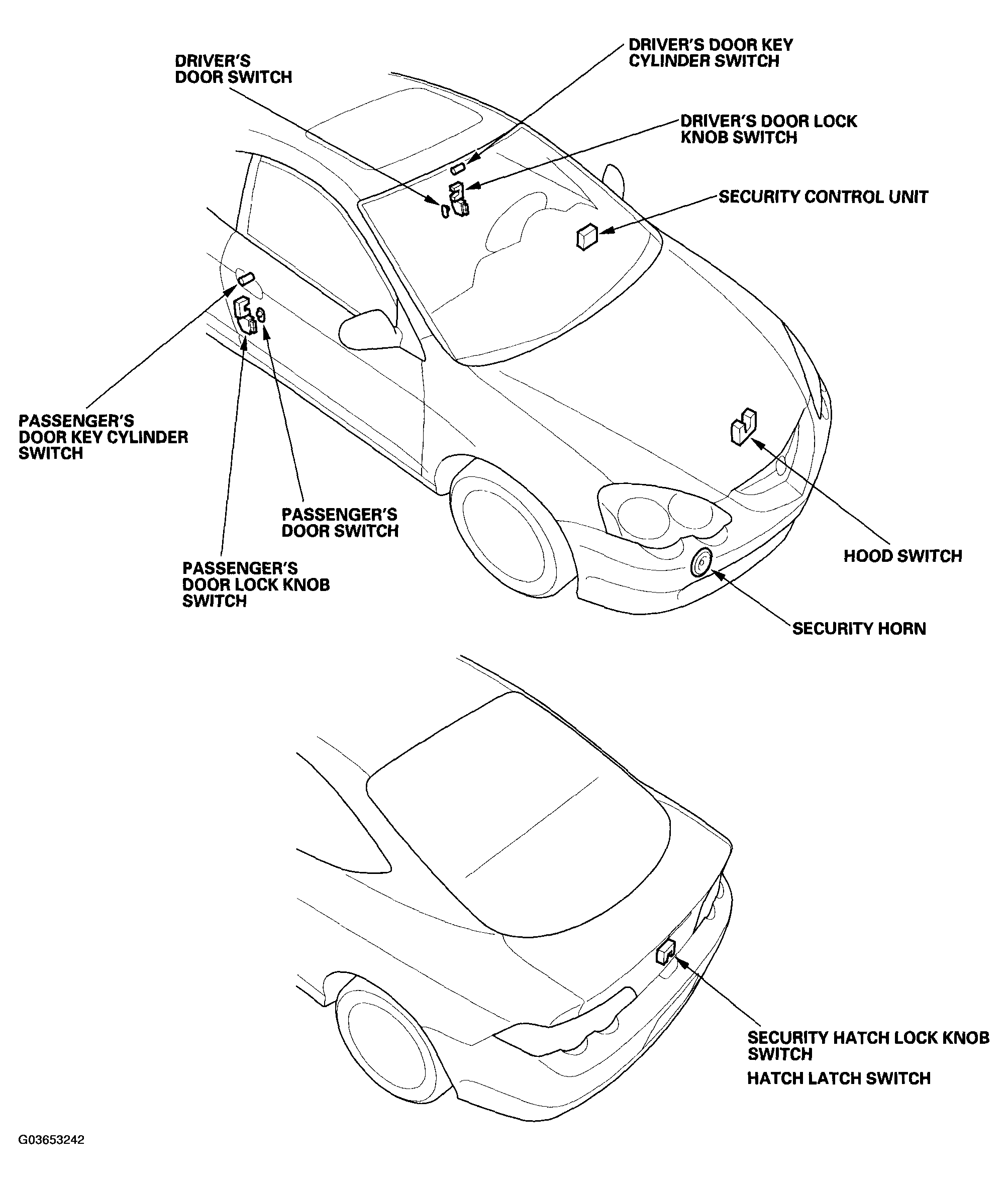

Fig 2: Identifying Security Alarm System Components (2 Of 2)
G03653242Courtesy of AMERICAN HONDA MOTOR CO., INC.
