Hatch Lock Actuator Test

  1. Remove the hatch trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).
  2. Disconnect the 2P connector (A) from the actuator (B).

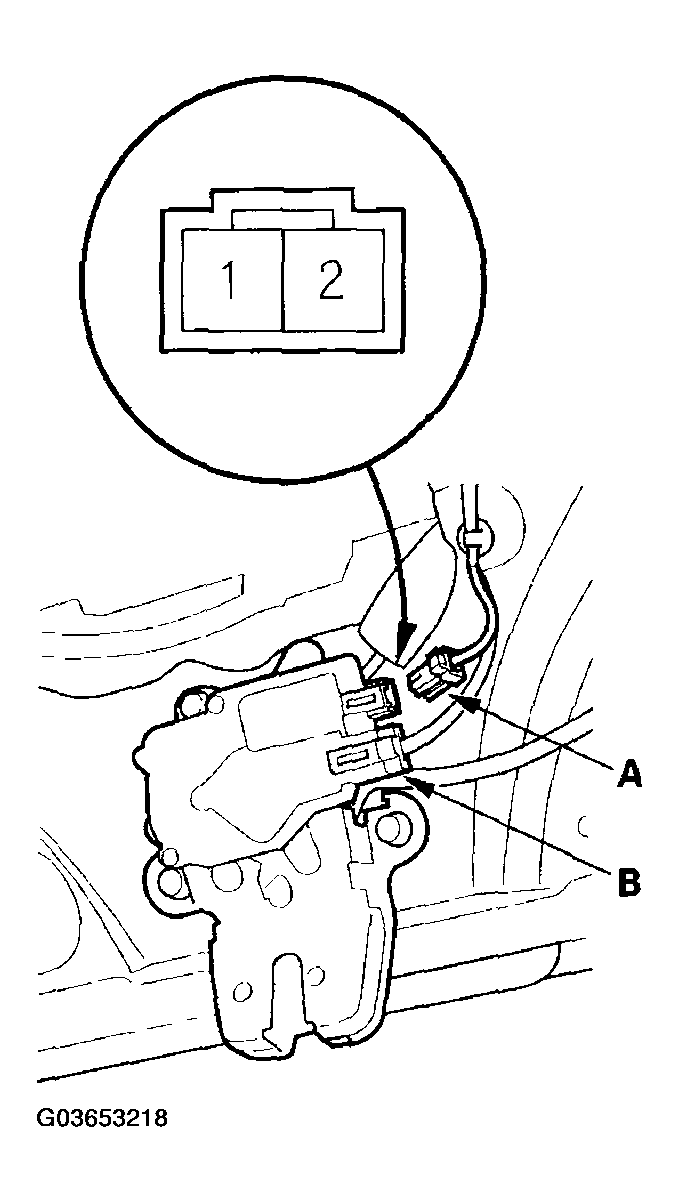

    Fig 1: Disconnecting 2P Connector From Actuator
    G03653218Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power to the No. 2 terminal and ground the No. 1 terminal for a moment.

    The actuator should move to UNLOCK.

    NOTE: To prevent damage to the actuator, apply battery voltage momentarily.
  4. Check actuator operation by connecting power to the No. 1 terminal and ground the No. 2 terminal for a moment.

    The actuator should move to LOCK.

    NOTE: To prevent damage to the actuator, apply battery voltage momentarily.
  5. If the actuator does not work as specified, replace it.
