Air Conditioning Service Specifications

AIR CONDITIONING SPECIFICATIONS

Application		Specification
Compressor Type		DENSO Piston Type
Refrigerant Oil (1)
Compressor Oil Capacity		5.33 ozs.
Condenser Oil Capacity		.33 ozs.
Evaporator Oil Capacity		.33 ozs.
Line & Hose Oil Capacity		.67 ozs.
Receiver Oil Capacity		.33 ozs.
Refrigerant (R-134a) Capacity		28.2-30.0 ozs.
System Operating Pressures		(2)
(1) Use DENSO: ND-Oil 8 (Part No. 38897-PR7-A01AH or 38899-PR7-A01). (2) See Fig 1.

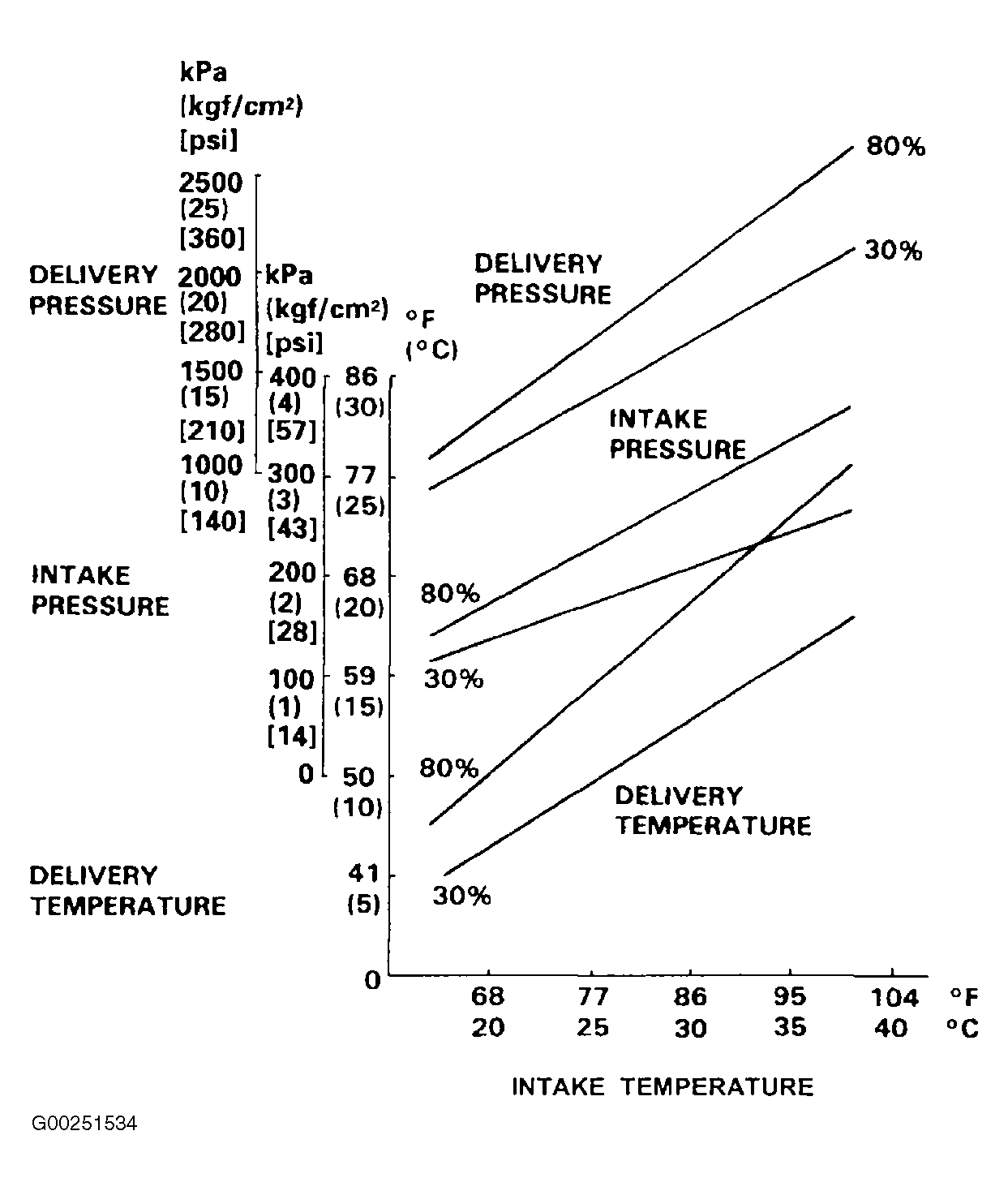

Fig 1: Identifying System Operating Pressures

Courtesy of AMERICAN HONDA MOTOR CO., INC.
