Abs Modulator-Control Unit

The modulator-control unit governs all ABS functions. See Fig 1 . It monitors all ABS circuits and is equipped with a self-diagnostic function.

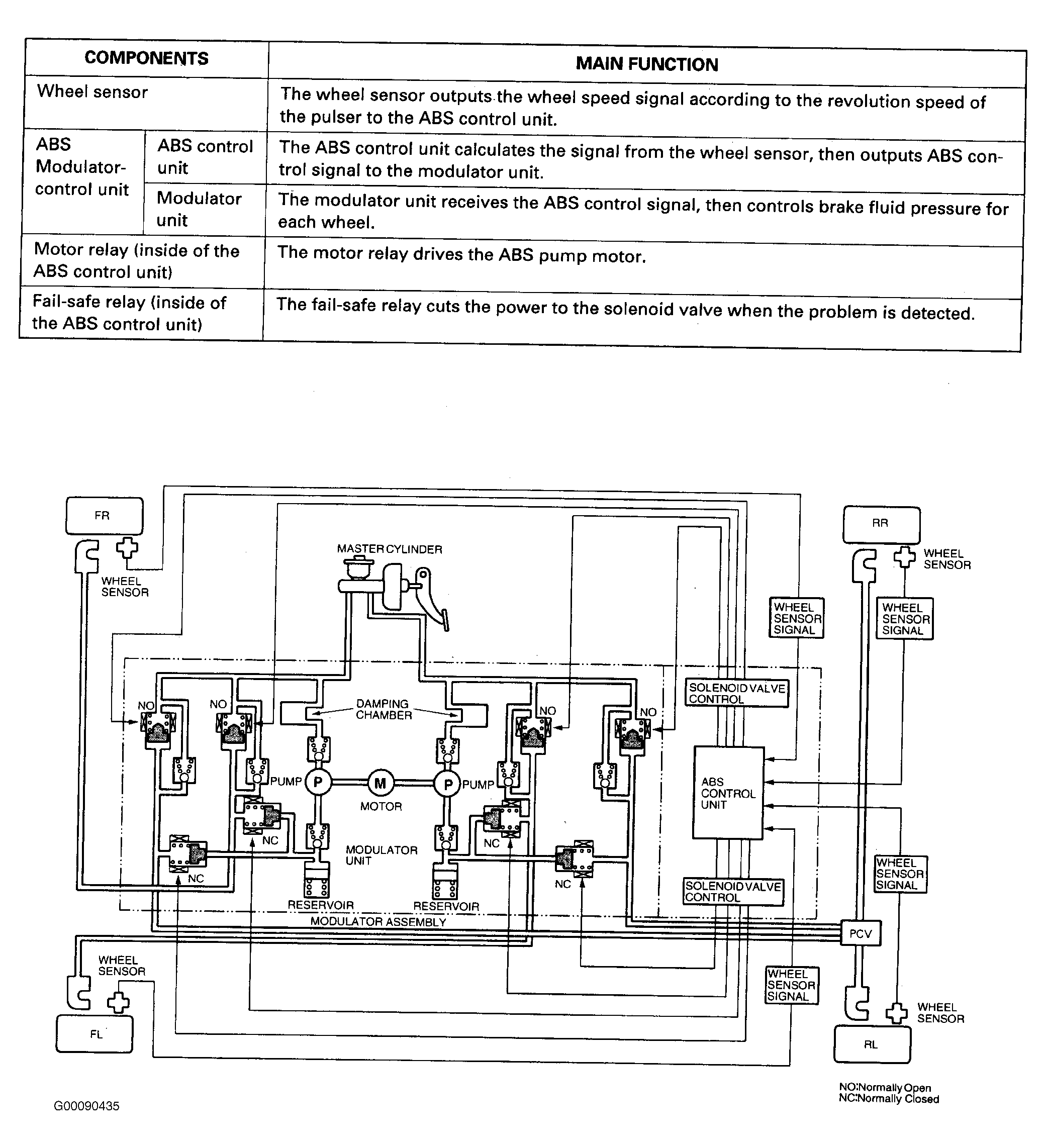

Fig 1: ABS Function Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
