Component Locations

COMPONENT LOCATIONS

Component	Location
ABS Indicator Light Relay	On Bulkhead, Behind Driver's Seat. See Fig 1 .
ABS Modulator-Control Unit	Left Front of Luggage CompartmentFig 4 .
Data Link Connector (DLC)	On Right Side of Center Console, Under Glove Box
Ground G101	On Engine. See Fig 2 .
Ground G301	Left Front of Luggage Compartment. See Fig 3 .
Service Check Connector	Under Glove Compartment. See Fig 4 .
Speed Sensor	At Respective Wheel
Underhood Fuse/Relay Box	Right Front Of Luggage Compartment. See Fig 4 .

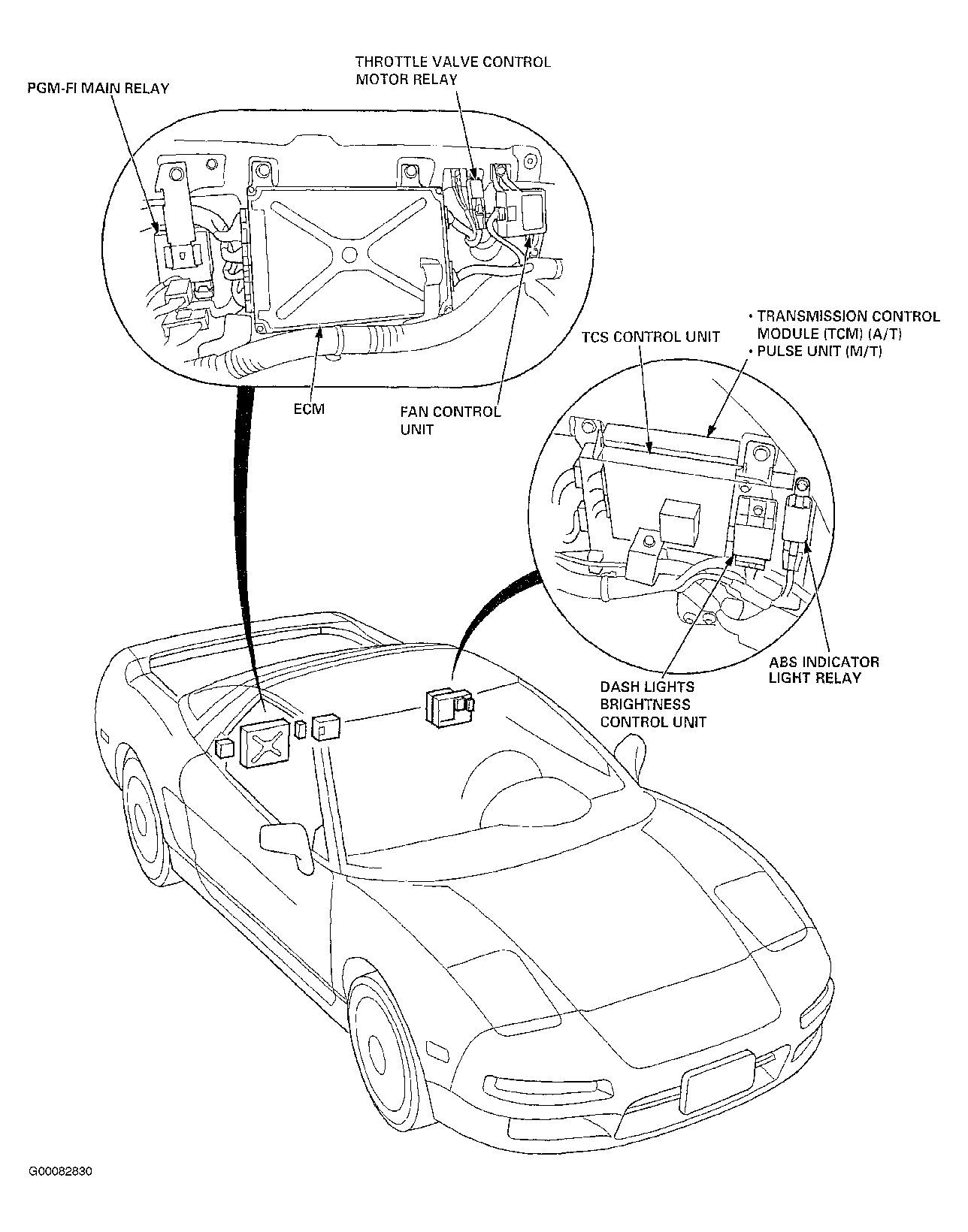

Fig 1: Locating ABS Indicator Light Relay

G00082830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

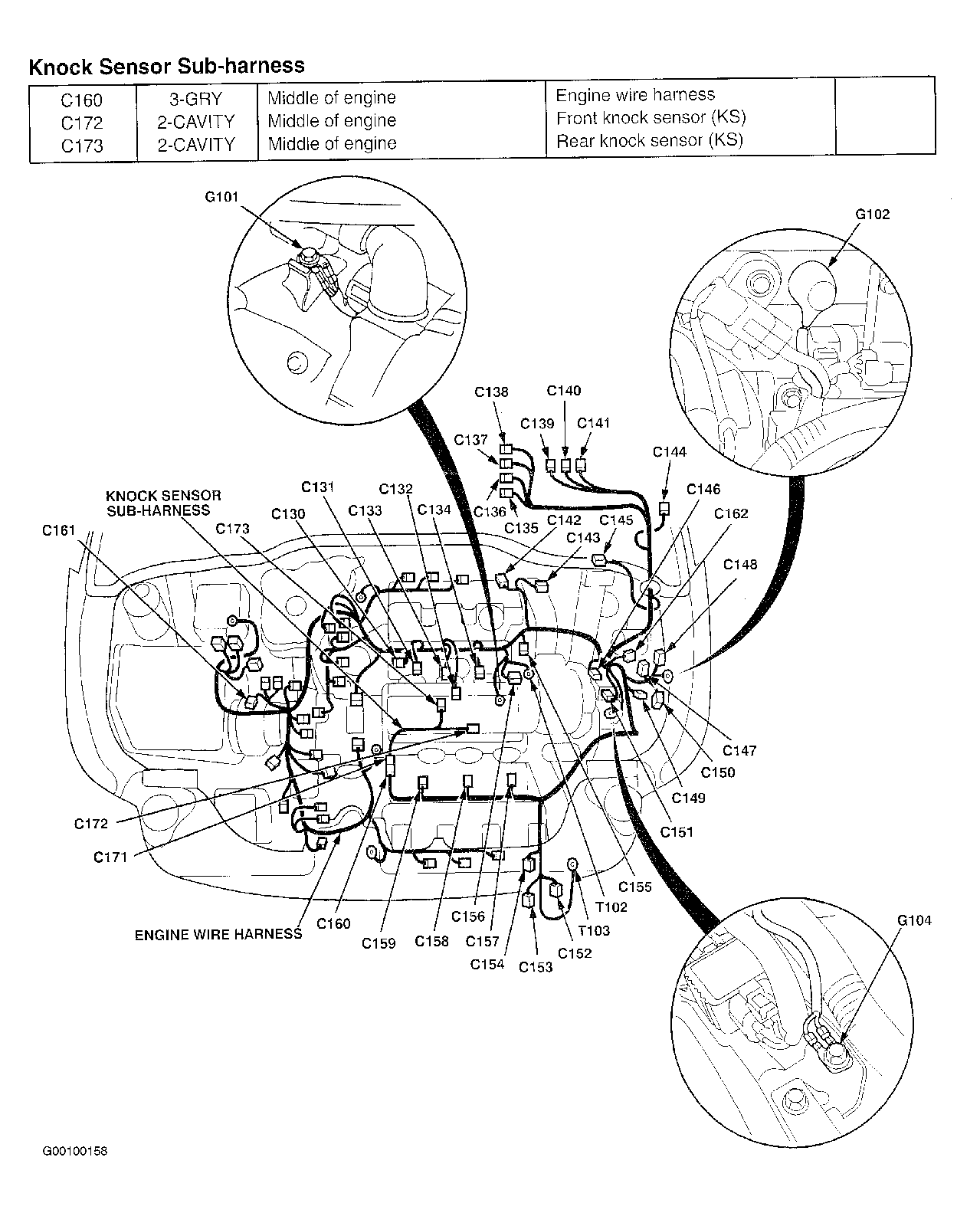

Fig 2: Locating Ground G101

G00100158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

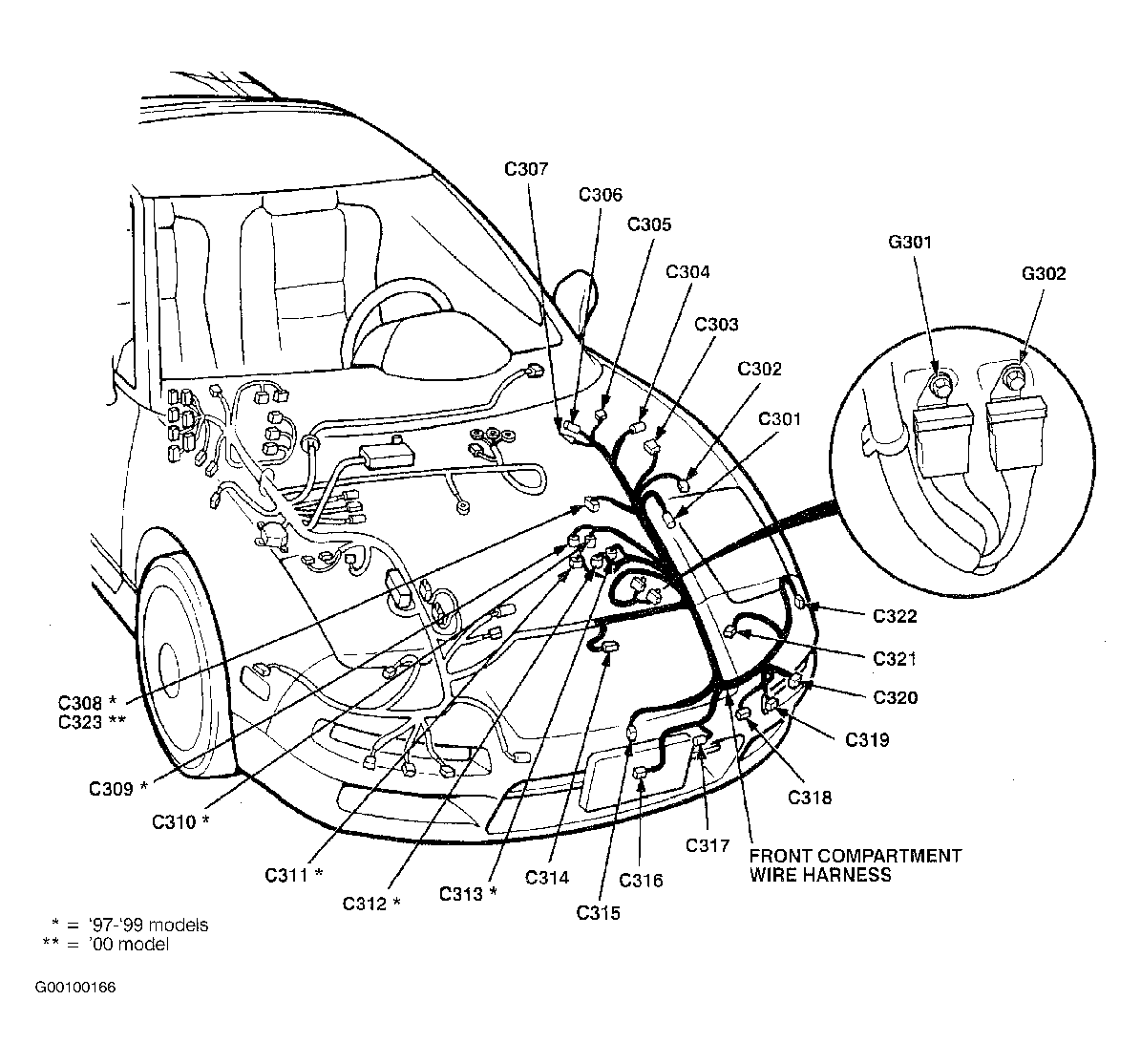

Fig 3: Locating Ground G301

G00100166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

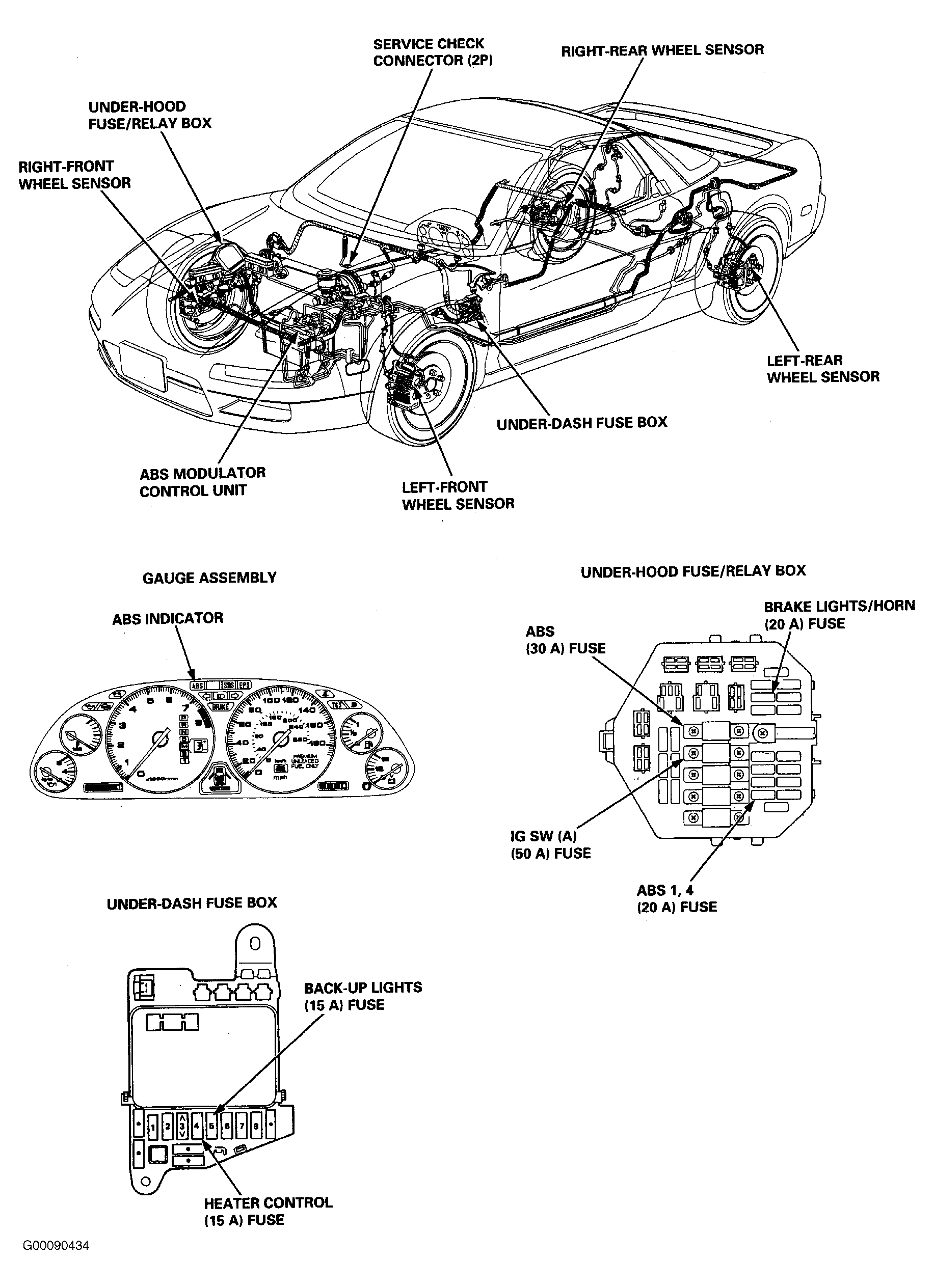

Fig 4: Identifying Component Locations

G00090434

Courtesy of AMERICAN HONDA MOTOR CO., INC.
