Frame Hoist

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hoist lift blocks (A), under the vehicle's front support points (B) and rear support points (C).

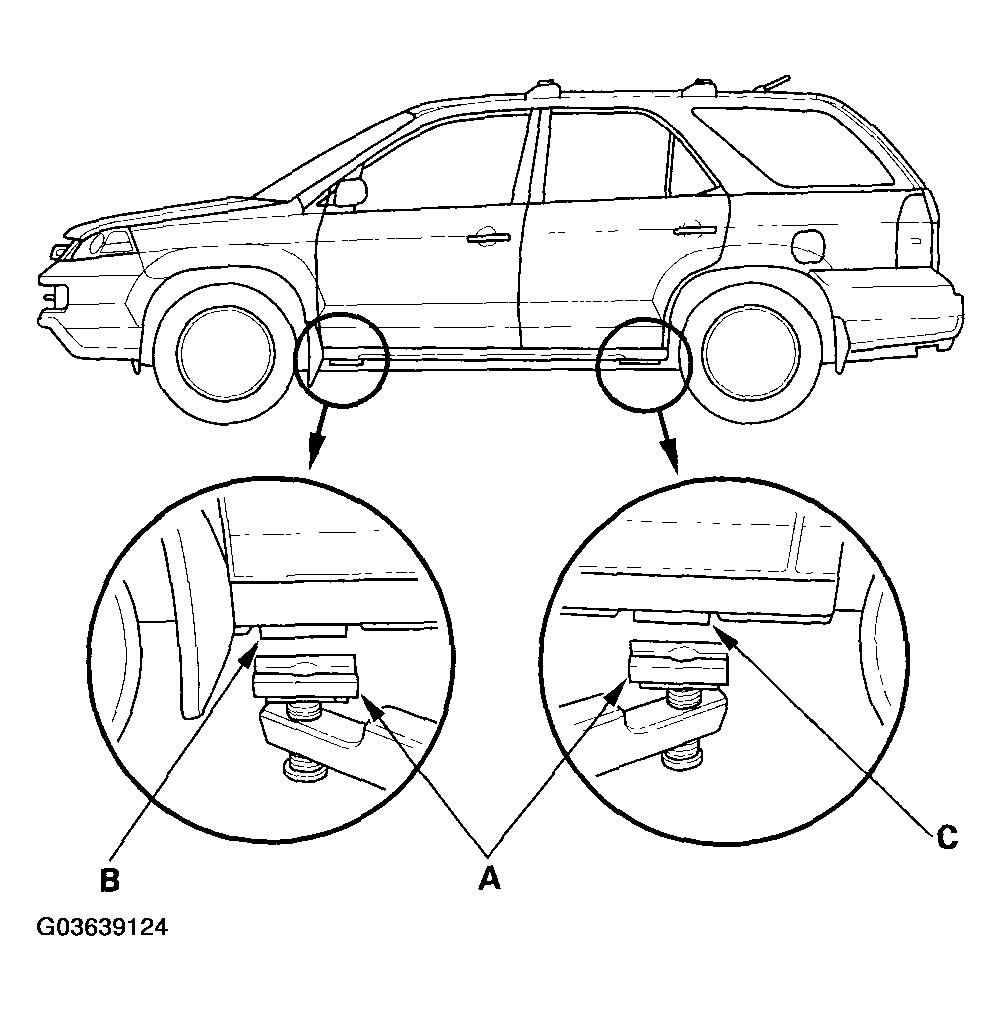

    Fig 1: Position Hoist Lift Blocks
    G03639124Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the hoist a few inches, and rock the vehicle gently to be sure it is firmly supported.
  3. Raise the hoist to full height, and inspect the lift points for solid contact with the lift blocks.
