Select/Reset Switch

Remove gauge assembly trim panel. See GAUGE ASSEMBLY TRIM PANEL  under REMOVAL & INSTALLATION. Measure resistance between appropriate terminals as specified. See Fig 1 . If resistance is not as specified, replace select/reset switch.

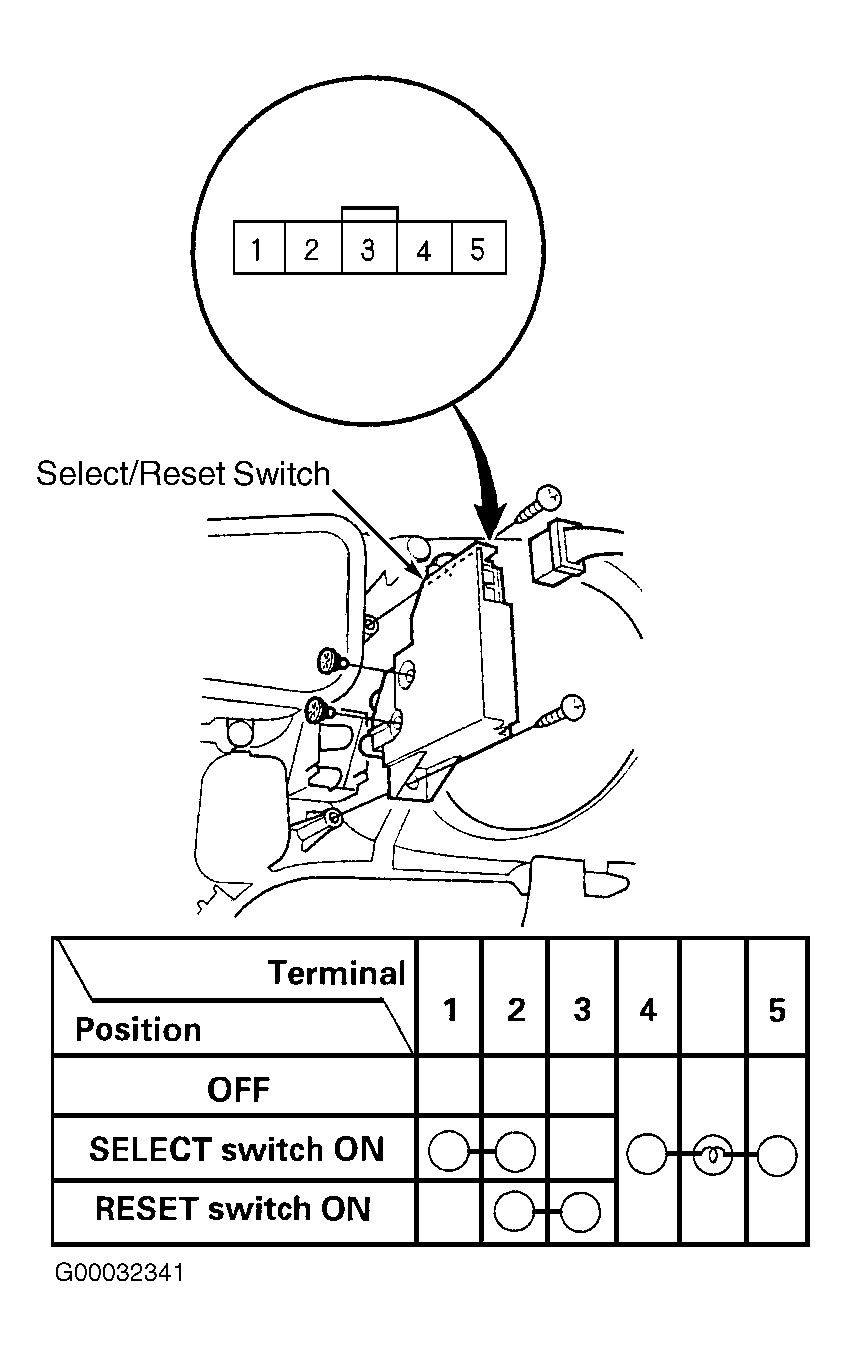

Fig 1: Identifying Select/Reset Switch Terminals
G00032341Courtesy of AMERICAN HONDA MOTOR CO., INC.
