Windshield Washer Fluid Level Switch Connector End View

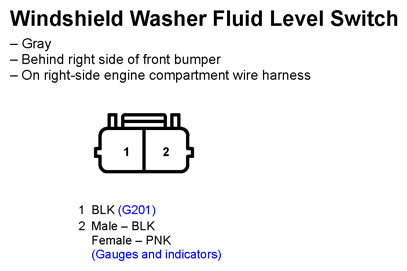

Fig 1: Windshield Washer Fluid Level Switch Connector End View

G11247759

Courtesy of AMERICAN HONDA MOTOR CO., INC.
