Under-Dash Fuse/Relay Box, Passenger's Connector End View
Under-Dash Fuse/Relay Box, Passenger's Connector End View

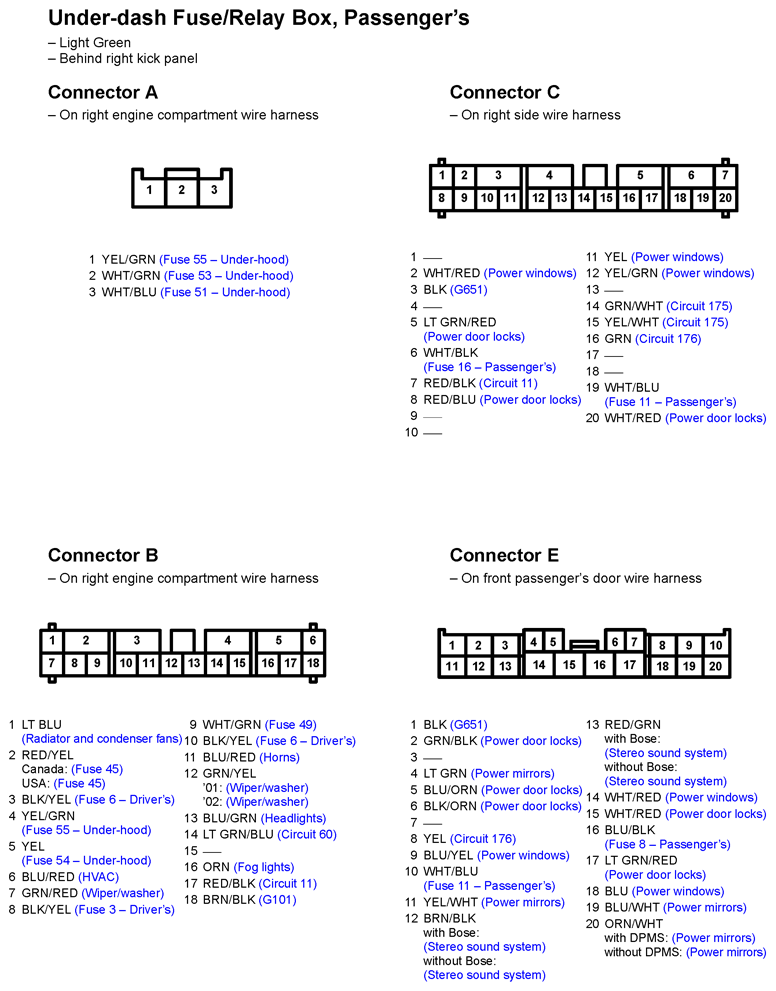

Fig 1: Under-Dash Fuse/Relay Box, Passenger's Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

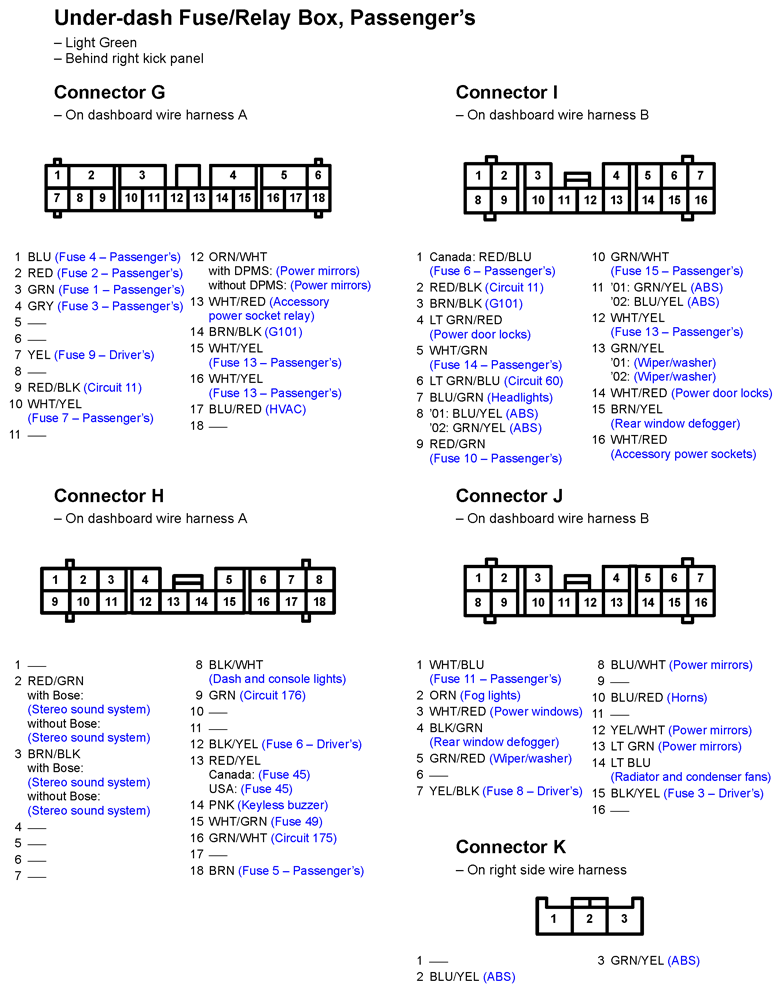

Fig 2: Under-Dash Fuse/Relay Box, Passenger's Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
