Trip Meter Select/Reset Switch Connector End View

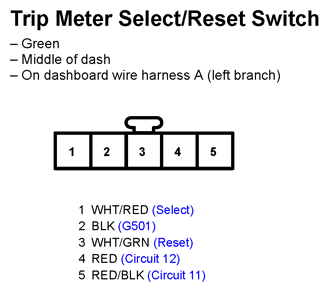

Fig 1: Trip Meter Select/Reset Switch Connector End View

G11247830

Courtesy of AMERICAN HONDA MOTOR CO., INC.
