Power Window Motor, Driver's Connector End View

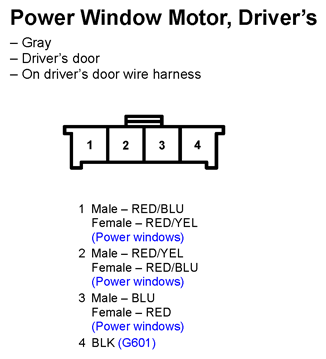

Fig 1: Power Window Motor, Driver's Connector End View

G11247809

Courtesy of AMERICAN HONDA MOTOR CO., INC.
