Power Seat Control Unit (with DPMS), Driver's Connector End View

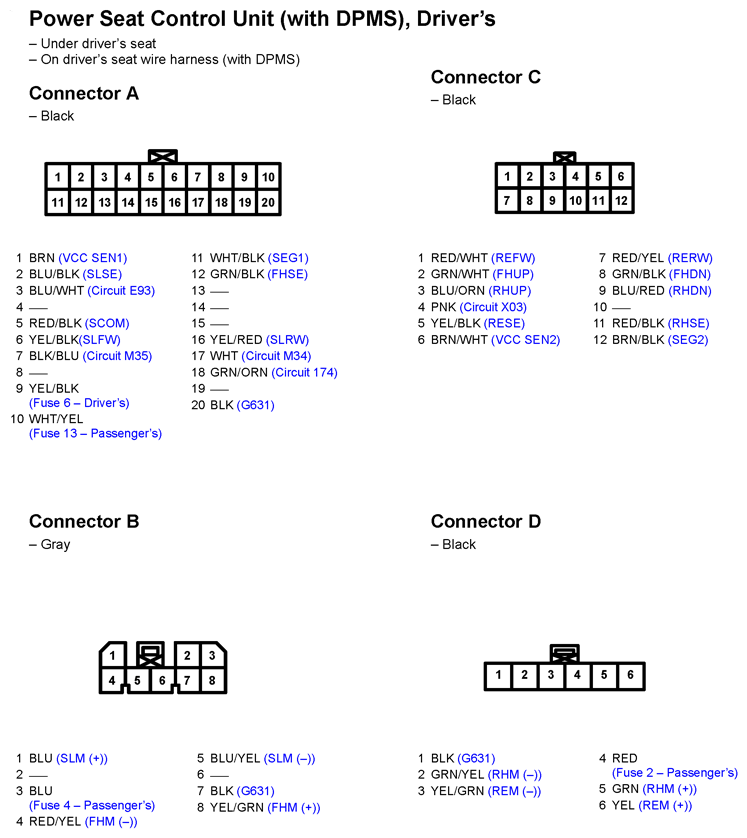

Fig 1: Power Seat Control Unit (with DPMS), Driver's Connector End View

G11247929

Courtesy of AMERICAN HONDA MOTOR CO., INC.
