Power Mirror Switch (without DPMS) Connector End View
Power Mirror Switch (without DPMS) Connector End View

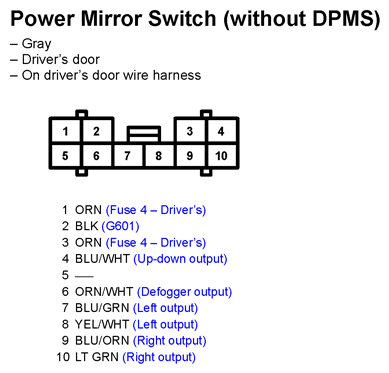

Fig 1: Power Mirror Switch (without DPMS) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
