Power Mirror (without DPMS), Left Connector End View
Power Mirror (without DPMS), Left Connector End View

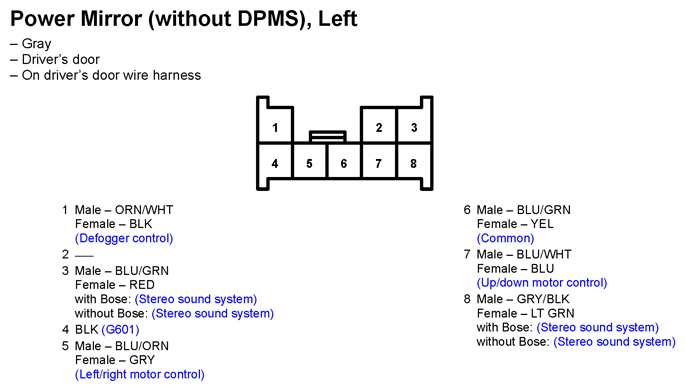

Fig 1: Power Mirror (without DPMS), Left Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
