Multi-Information Display Unit Connector End View

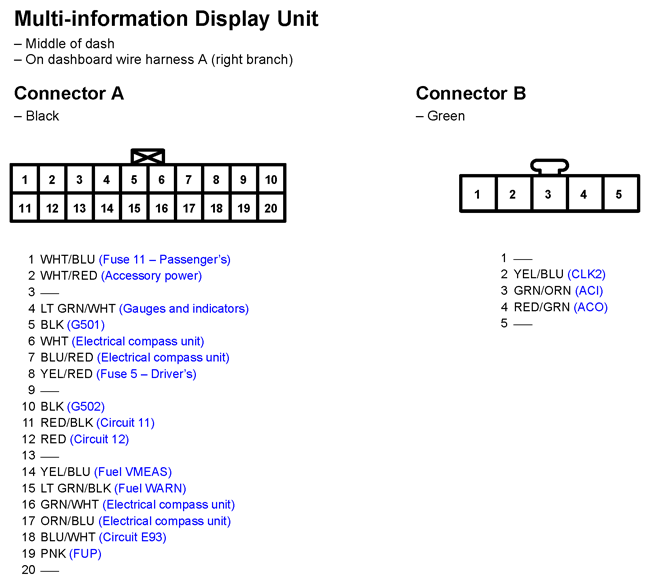

Fig 1: Multi-Information Display Unit Connector End View

G11247920

Courtesy of AMERICAN HONDA MOTOR CO., INC.
