Interior Light Switch Connector End View

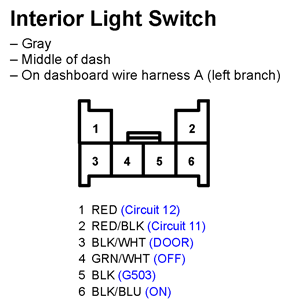

Fig 1: Interior Light Switch Connector End View

G11247841

Courtesy of AMERICAN HONDA MOTOR CO., INC.
