C634 (without DPMS) Connector End View

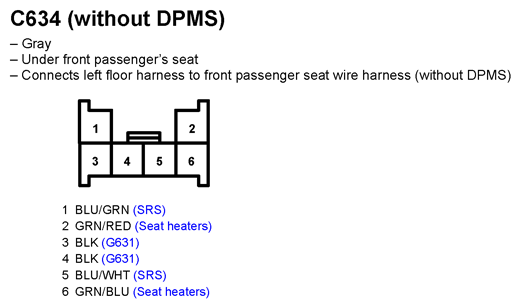

Fig 1: C634 (without DPMS) Connector End View

G11247851

Courtesy of AMERICAN HONDA MOTOR CO., INC.
